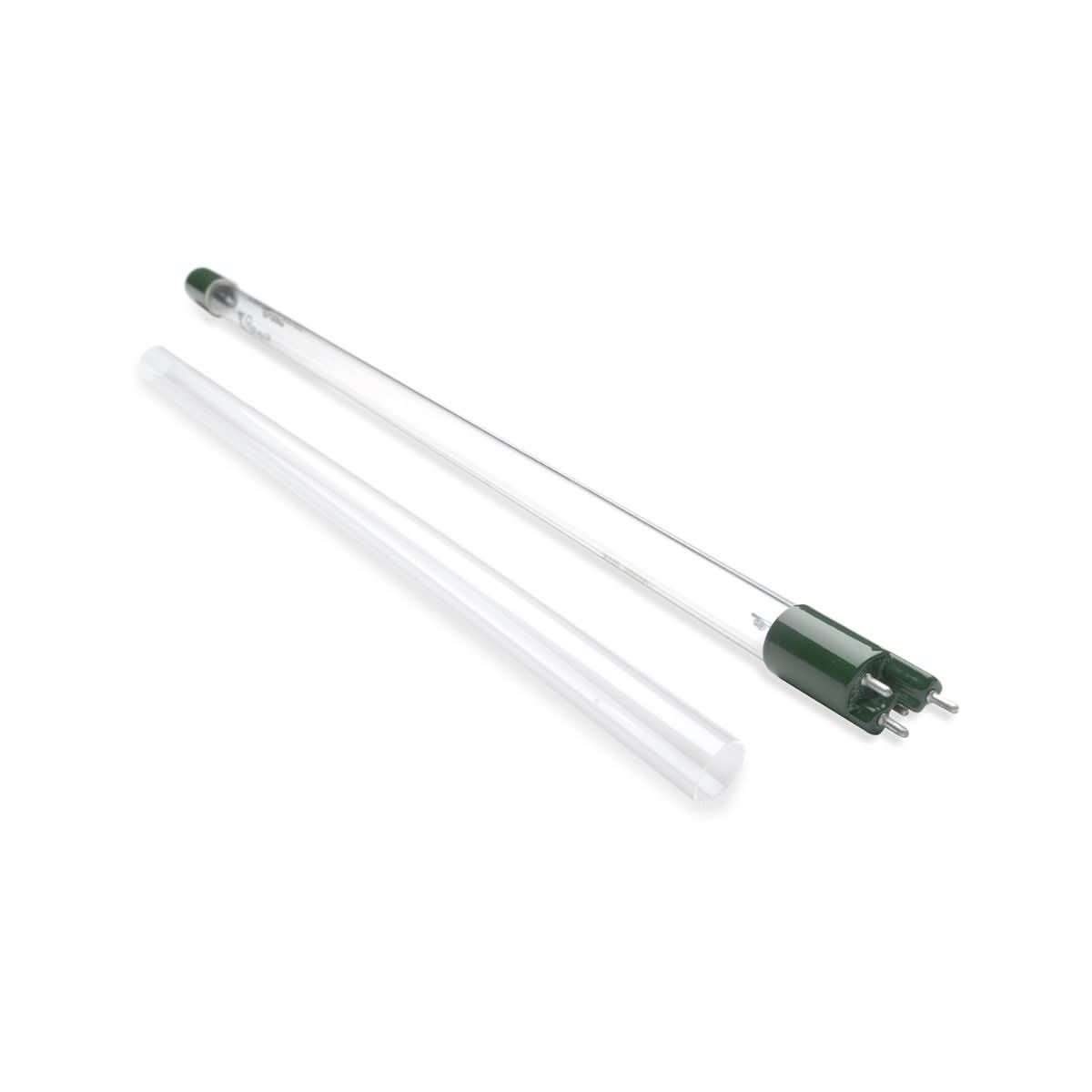

Viqua S810-QL Lamp/ Quartz Sleeve Combo Pack

Name: Viqua S810-QL Lamp/ Quartz Sleeve Combo Pack
Brand: My Store
SKU: VIQUA-S810-QL
Price: 172.0 USD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$172.00

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: Viqua

UPC: 773058100908

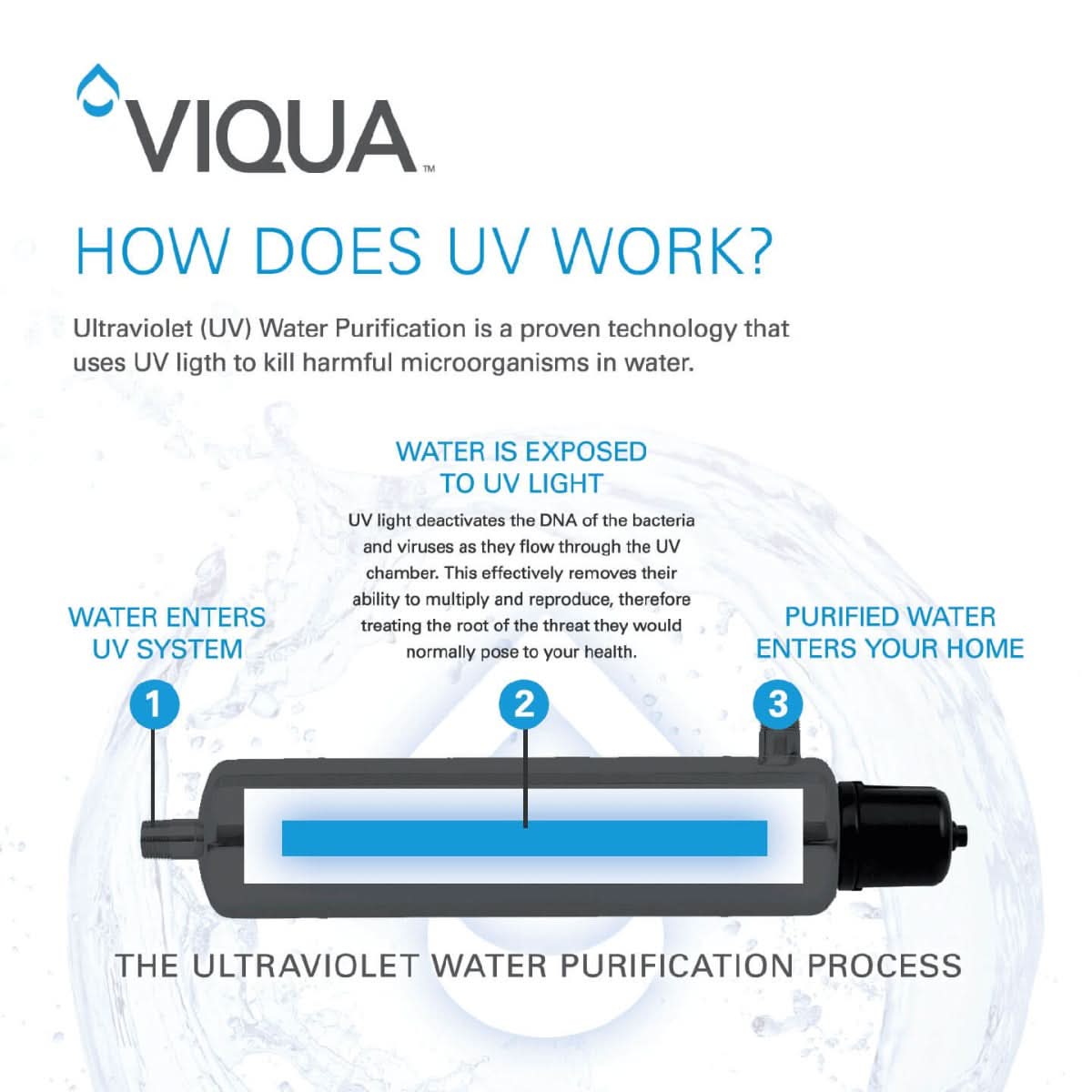

Media: Ultraviolet Light

Brand: Viqua

Netsuite Item Type: Whole House Systems

description Instructions

Close main water supply to the UV System, and then open a tap downstream of the UV System to release pressure.
Disconnect main power source and allow the unit to cool for 10 minutes. Note: Ensure there is no other power source connected such as, Solenoid Junction Box.
Remove the UV lamp connector and the UV lamp
(SEE STEP 7-9) Re-insert the new UV lamp inside the quartz sleeve. Attach the connector to the UV lamp and note that the connector will only allow correct installation in one position. Place and tighten the UV lamp connector.
Plug the unit back to the power source. Reset the end of lamp timer alarm back to 365 days.
Close the downstream tap once the UV chamber is filled with water, and inspect for any leakages.
(Quartz Sleeve) Remove the top retaining nut and O-ring. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water. Remove the quartz sleeve from the UV chamber.
Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s). Hand tighten the retaining nut(s), taking care not to over-tighten.

warning_amber Contaminants Reduced

Bacteria

Cryptosporidium

Cysts

Ecoli

Giardia

Viruses

filter_alt Filter Life

Filter Life (gallons): 12 months
