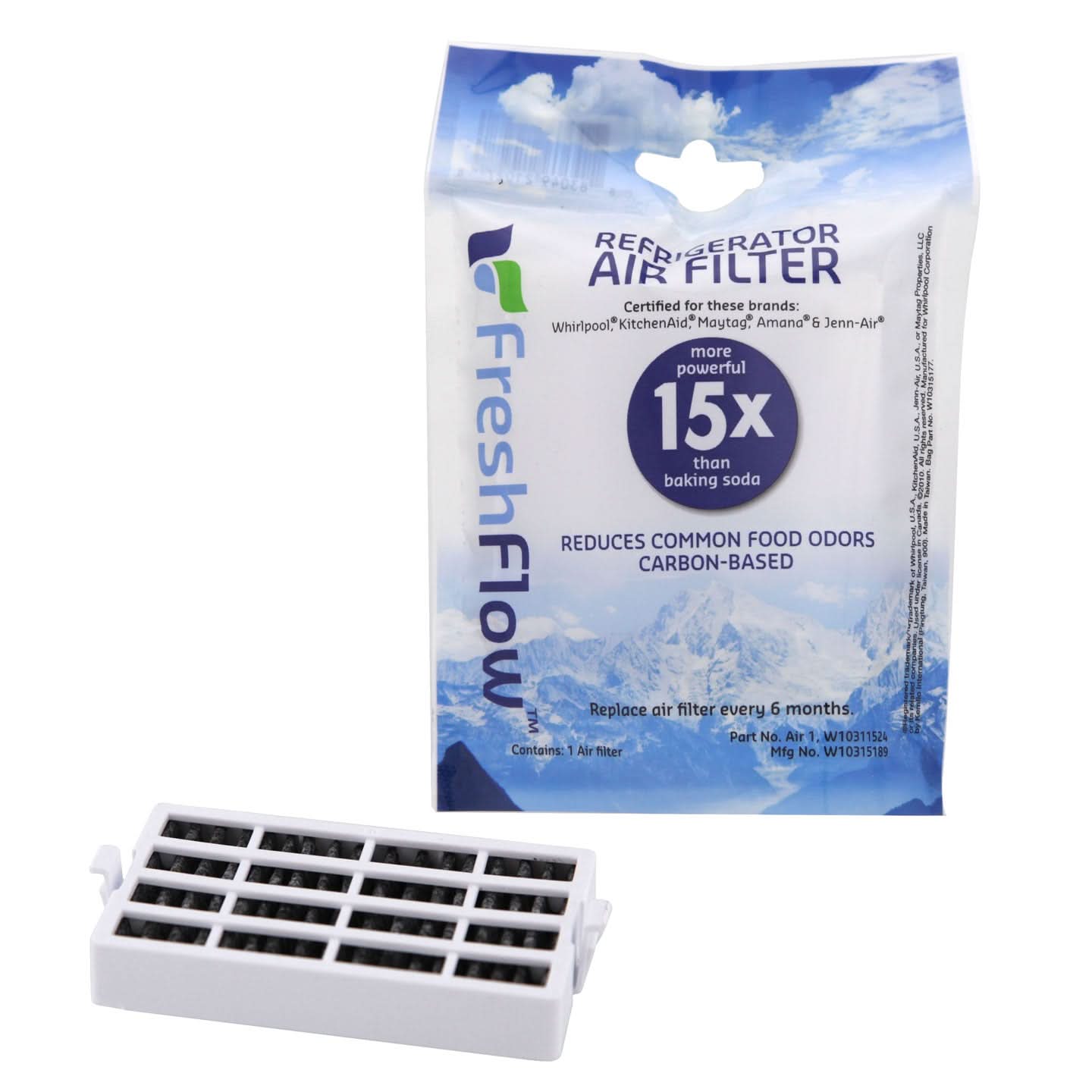

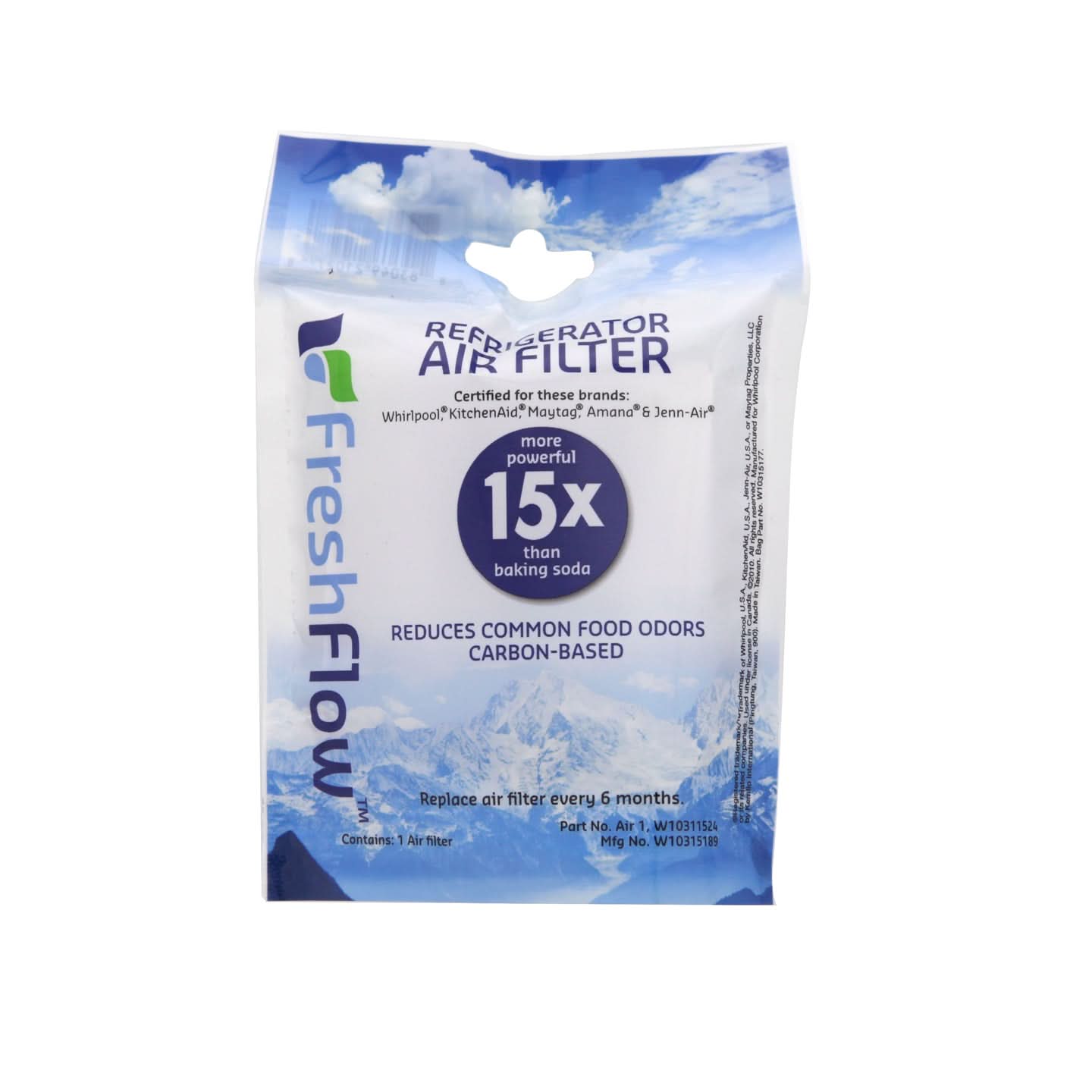

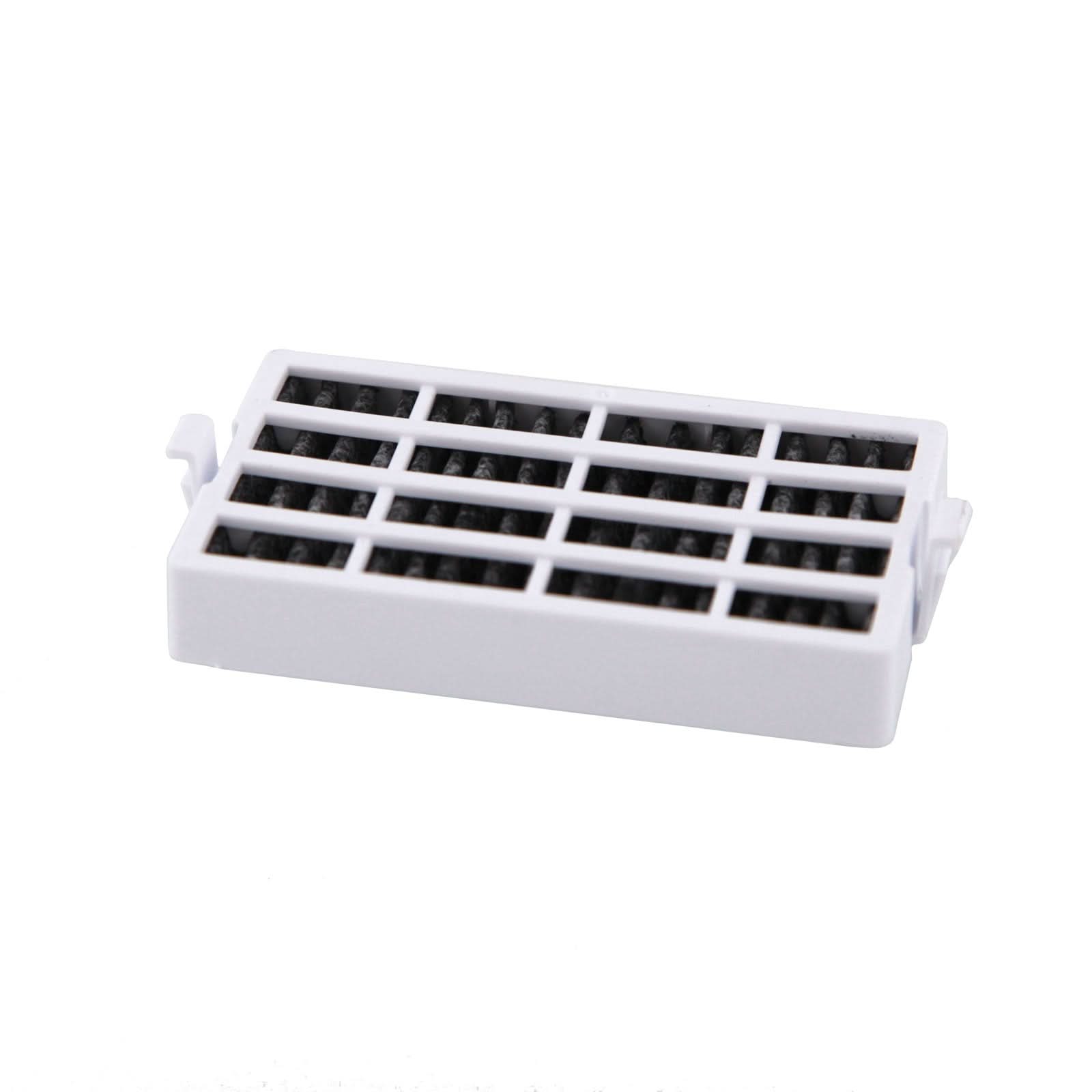

    Whirlpool W10311524 FreshFlow Carbon Impregnated Refrigerator Air Filter

    • The Whirlpool W10311524 Refrigerator Air Filter is fifteen times more powerful than baking soda

    • The Whirlpool W10311524 Refrigerator Air Filter should be changed every 6 months

    • The Whirlpool W10311524 Refrigerator Air Filter is Certified for Whirlpool, Kitchen Aid, Maytag, Amana and Jenn Air brands

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Whirlpool
    Manufacturer's Id: W10311524
    UPC: 883049210278
    Actual Size (in): 3 3/25 inches (length) x 2 inches (width) x 1/4 inch (thickness)
    Media: Carbon Impregnated Fabric
    Primary Filter Media: Carbon Wrapped
    Brand: Whirlpool
    Length (in): 3.12 in
    Width (in): 2 in
    Media Type: Carbon Filter
    Thickness (in): 0.25 in
    Country of Origin: Taiwan
    description Instructions
    1. Remove the new air filter from its packaging
    2. Locate and lift open the vented door along the rear interior wall at the top of the refrigerator compartment
    3. Remove the old air filter by squeezing in on the side tabs
    4. The new air filter should snap easily into place with the depressable tabs facing you and then close the vent door
    restart_alt Reset Instructions
    1. If your refrigerator model has a built-in air filter status light you will not need the disposable status indicator provided with the air filter
    2. If not, be sure to remove the old filter status indicator and install the new status indicator in a visible place within the refrigerator (if your fridge has notched inside the vent door you can use those for the indicator light)
    3. To activate the status indicicator place the indicator face down on a firm, flat surface
    4. Apply pressure to the bubble on the back of the indicator, unti lthe bubble pops to activate the indicator light
    5. Check that the indicator is visible and you can see when it is time to replace the filter
    workspace_premium Certifications
  • NSF/ANSI Standard 42
  • warning_amber Contaminants Reduced
  • Bacteria
  • Odor
  • filter_alt Filter Life
    Filter Life (months): 6 months

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

    The Whirlpool W10311524 FreshFlow Refrigerator Air Filter reduces odor and bacteria using a carbon based material.

    W10311524   is comparable with the following part number(s)

    • W10311524
    • AIR1
    • 2319303
    • W10335147
    • W10315189
    • RAF1180
    • WD-W10311524
    • TIER1-RAF1180
    • TIER1_RAF1180_2_PACK
    • TIER1_RAF1180_3_PACK
    • TIER1_RAF1180_4_PACK
    • TIER1_RAF1180_6_PACK
    • TIER1_RAF1180_8_PACK
