    PENTEK-DGD-2501-20

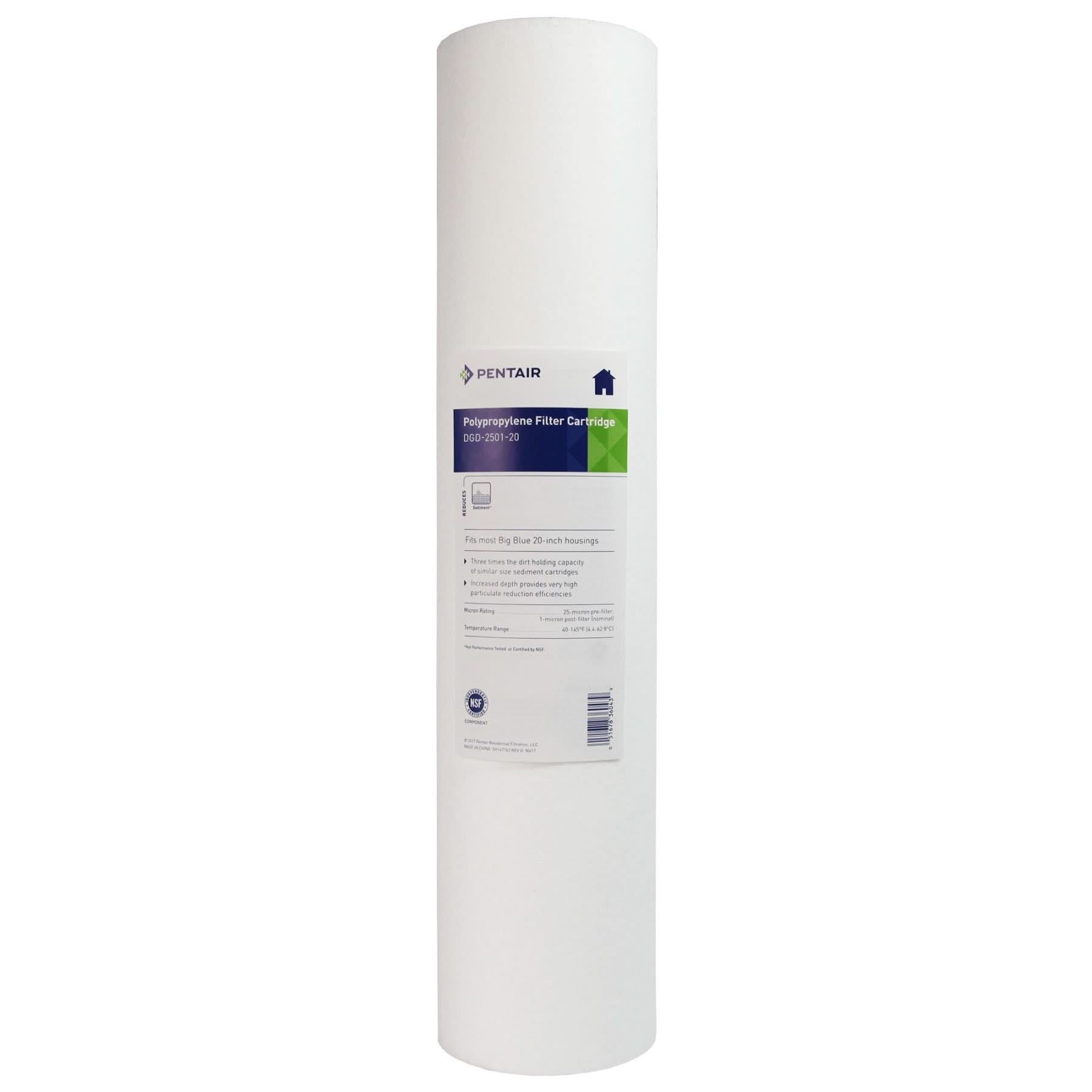

    Pentek DGD-2501-20 Sediment Water Filters (20-inch x 4.5-inch)

    Fits most standard housings built for 20-inch x 4.5-inch filter cartridges
    • Supports a flow rate of up to 20 gallons per minute (gpm)

    • Offers significant contaminant reduction including sand, silt, sediment, dirt, rust and corrosion, fine sand, and more

    • Dual gradient filtration provides higher flow rate and greater contaminant holding capacity

    • Polypropylene material construction inhibits bacterial growth

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: DGD-2501-20
    UPC: 051678360439
    Actual Size (in): 20 inches (length) x 4-1/2 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Brand: Pentek
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    Country of Origin: China
    Micron Rating Nominal: 1
    Flow Rate (gpm): 20.0
    Includes: One Dual Gradient Density Pentek DGD-2501-20 Sediment Water Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    file_download Downloads
    workspace_premium Certifications
  • NSF/ANSI Standard 42
  • warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Rust And Corrosion
  • Sand
  • Sand Fine
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (gallons): 8000
    Filter Life (months): 6 months



    Pentek DGD-2501-20 Filter Advantages


    The Pentek DGD-2501-20 water filter has two separate gradient density layers that enhance cartridge performance. The prefilter (outer density layer) reduces the particle load to the postfilter (inner density layer), allowing it to operate at higher velocities/ higher flow rates. The effective DGD-2501-20 filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters. This increased depth provides for very high particulate reduction efficiencies and added loading capacity. The Pentek DGD-2501-20 water filter cartridge will not add taste, odor, or color to the liquid being filtered. This water filter has three times the dirt-holding capacity of similar sized sediment water filter cartridges. The Pentek DGD-2501-20 water filter is ideal for all residential, rural, commercial, industrial, and municipal applications.



    Pentek DGD-2501-20 Contaminant Reduction


    The Pentek DGD-2501-20 water filters reduce the need for multiple housing step-down filtration systems. The Pentek DGD-2501-20 filter cartridge reduces extra fine dirt, sand, sediment, silt, rust particles, and scale particles. The Pentek DGD-2501-20 water filter is made from pure polypropylene construction making it highly resistant to chemicals and corrosion. This replacement 20 x 4.5 inch filter is designed for water purity and bacterial and chemical resistance. The Pentek DGD-2501-20 filter cartridge has a 25 micron fine sediment prefilter layer and a 1 micron extra fine sediment postfilter layer.



    Polypropylene Filter Media


    Polypropylene media inhibits bacterial growth making it an ideal option for both municipal and well water applications. These filters are effective at capturing contaminants such as sand, sediment, silt, and more. Unlike carbon filter cartridges you wont have to worry about small carbon fines potentially spilling into your water, while still enjoying the benefits of filtered water throughout your home. Polypropylene filters are great for whole house water filtration and can be used as effective pre-filters for whole house or point of use systems.


    PENTEK-DGD-2501-20   is comparable with the following part number(s)

    • 155360-43
    • DGD-2501-20
    • FPMB-BB1-20
    • P1-20BB
    • SDC-45-2001
    • SDF-45-2001
