Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
TIER1-DGD1-20BB

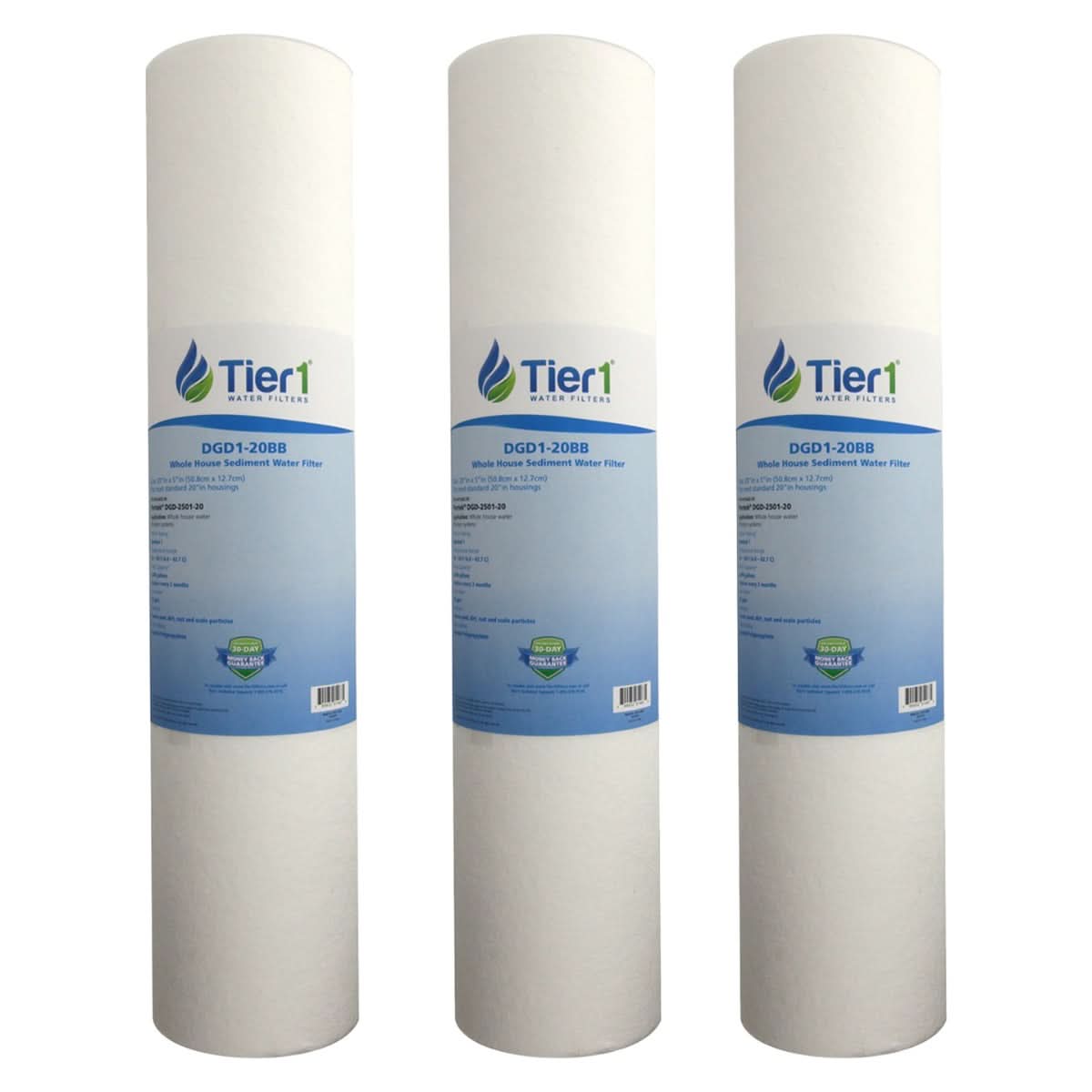

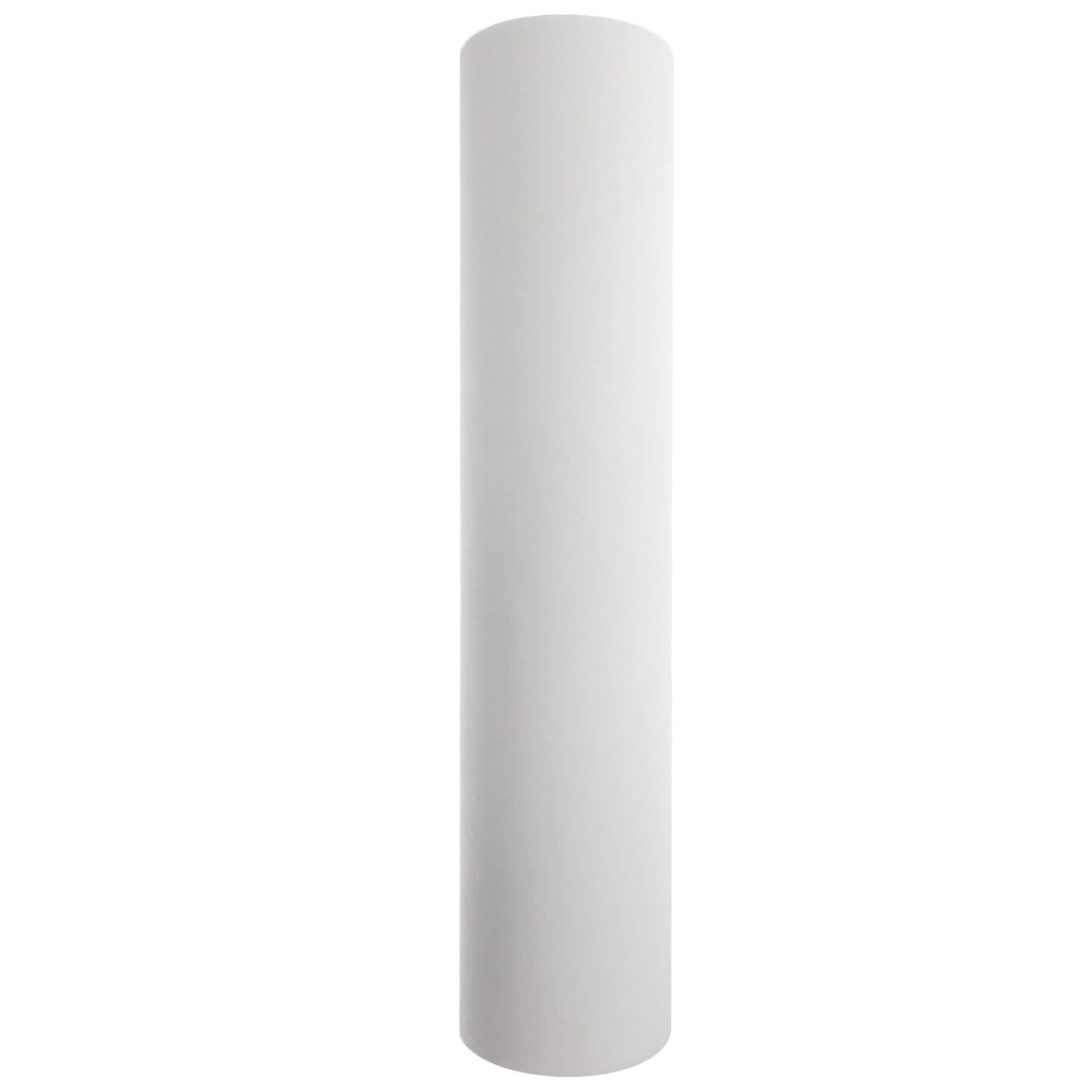

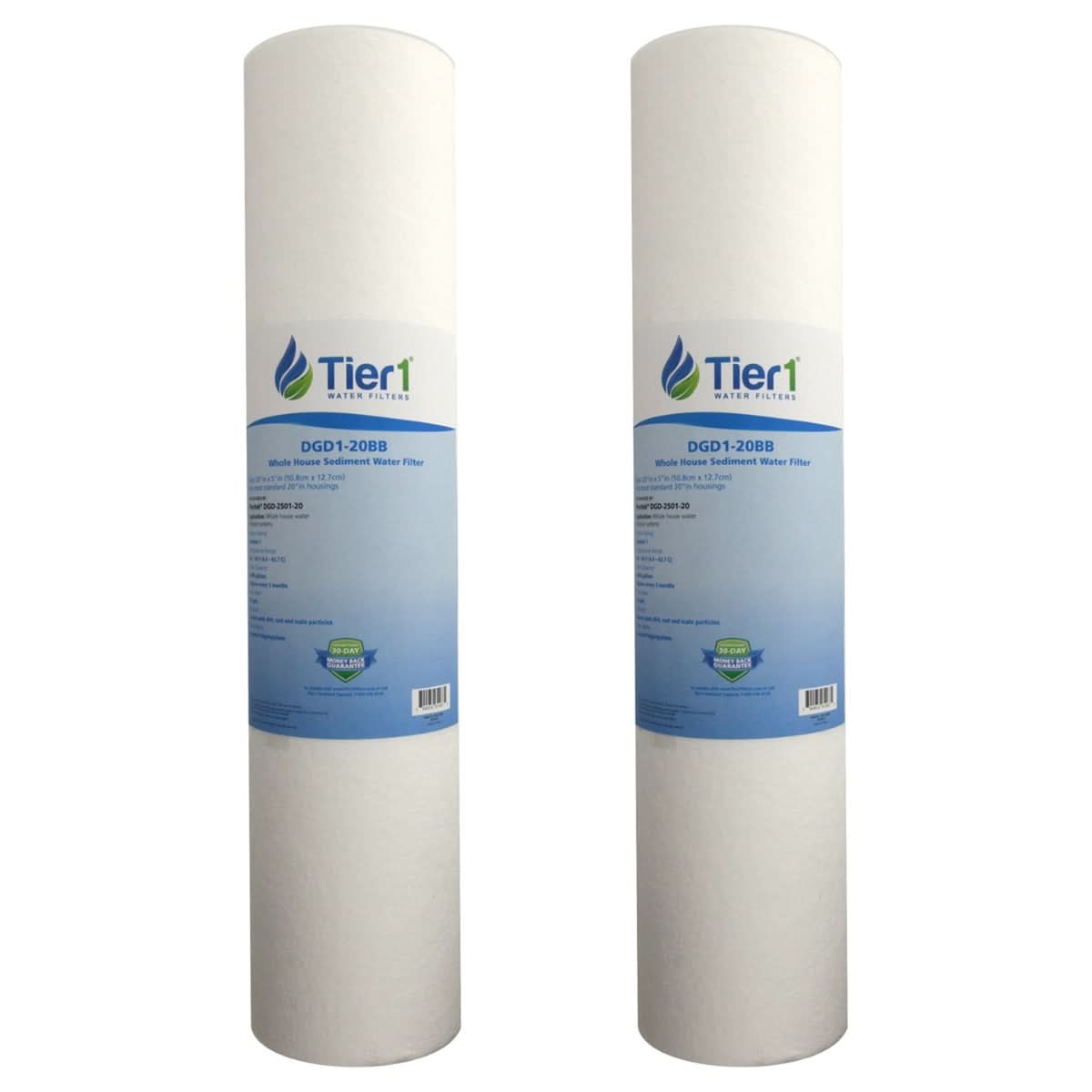

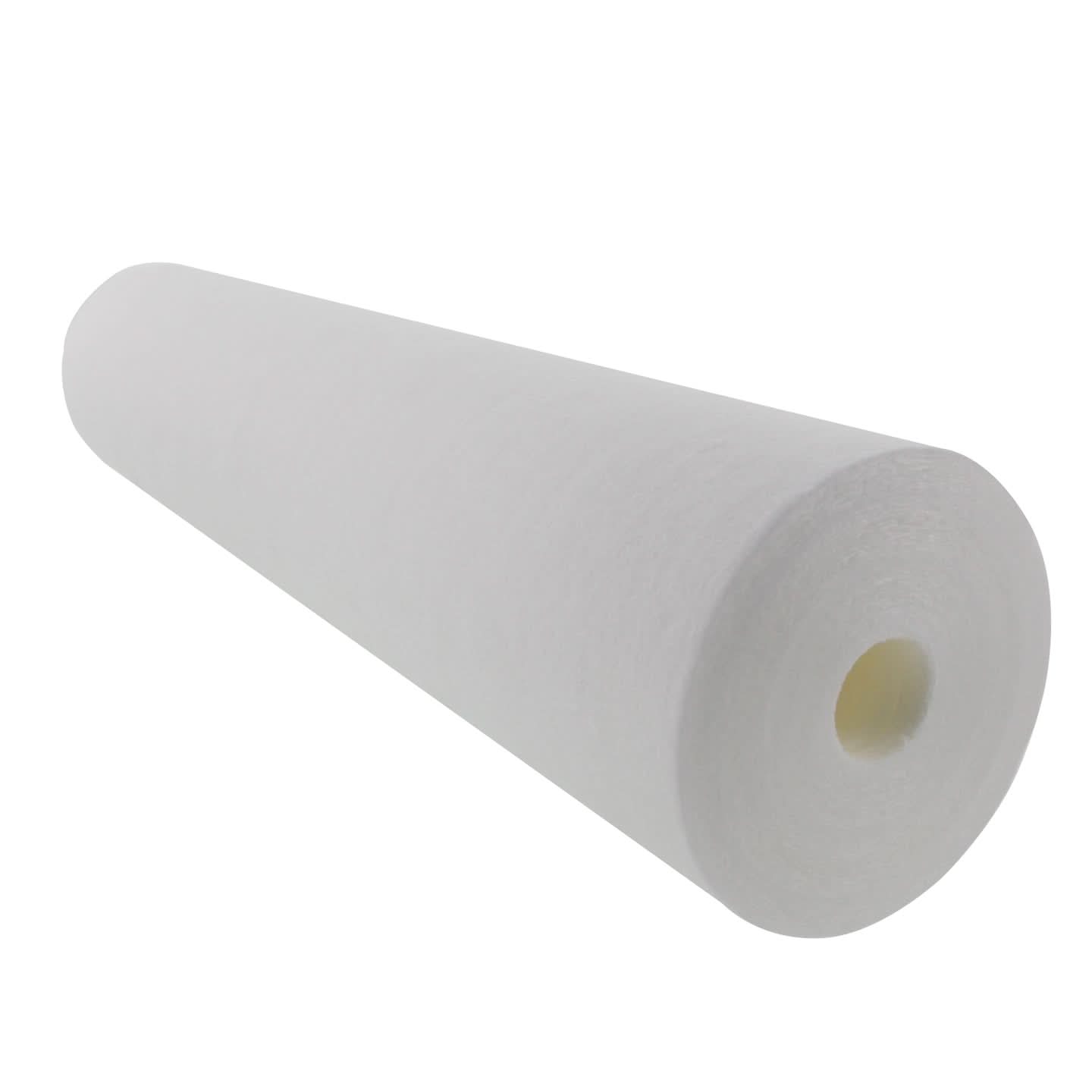

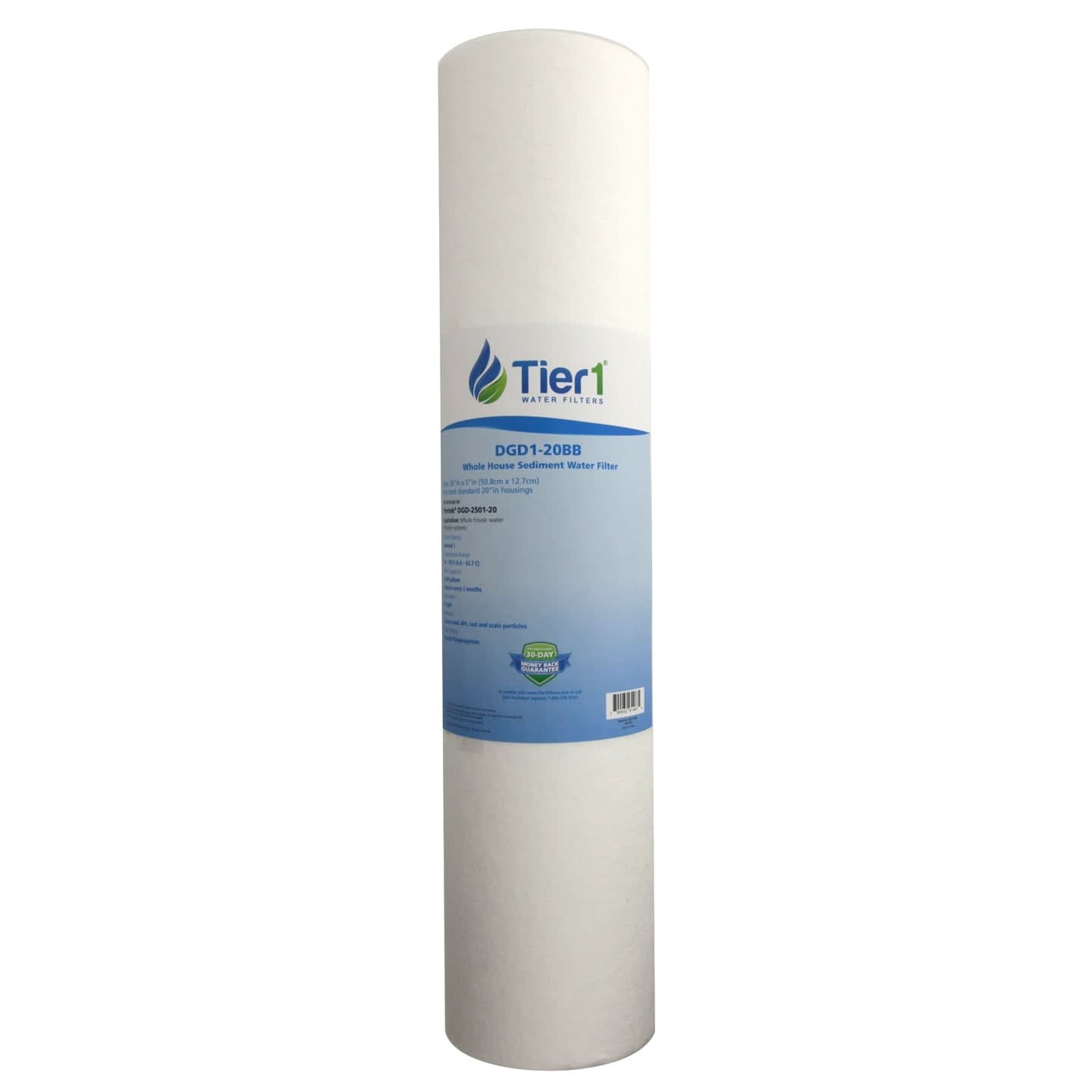

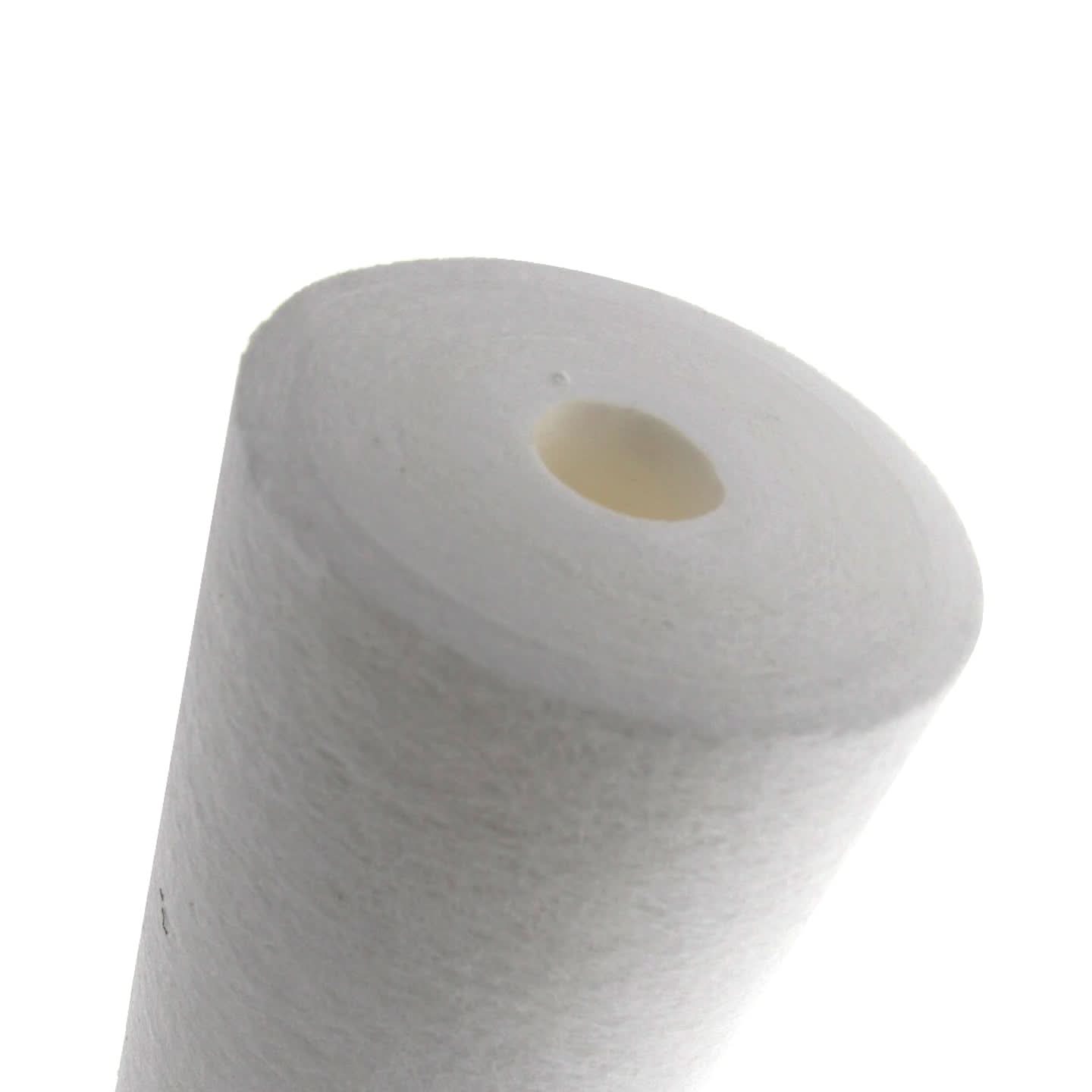

20 X 4.5 Spun Wound Polypropylene Replacement Filter by Tier1 (1 micron)
High Stock (117)
$18.97 - $400.65
Fits most stand housings built for 20-inch x 4.5 inch filter cartridges
| Price Per Item | |
|---|---|
| 2 PACK | $18.40 |
| 4 PACK | $17.83 |
| 6 PACK | $17.26 |
| 24 PACK | $16.69 |
Features & Specs
Features & Specs
Package Qty: 1
Manufacturer: Tier1
Manufacturer's Id: DGD1-20BB
UPC: 799932614675
Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
Media: Spun Wound Polypropylene
Primary Filter Media: Polypropylene
Operating Temperature (°F): 40 - 145
Operating Temperature (°C): 4.4 - 62.8
Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
Brand: Tier1
Advertised Size: 20 x 4-1/2
Depth (in): 4.5 in
Height (in): 4.5 in
Length (in): 20 in
Outside Diameter (in): 4.5 in
Width (in): 4.5 in
Media Type: Sediment Filter
UPC's For Search: 051678360439 | 799705708259 | 799932614675
Country of Origin: China
Micron Rating Nominal: 1
Flow Rate (gpm): 20.0
Includes: One 20 X 4.5 Inch Spun Wound Polypropylene Replacement Filter by Tier1
Instructions
Instructions- Turn off water supply. Press red pressure-relief button (if present)
- Unscrew housing. Remove large o-ring, wipe clean and set aside
- Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
- Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
- Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
- NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
- Insert new filter cartridge.
- Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
- Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
Contaminants Reduced
Contaminants Reduced
Filter Life
Filter Life
Filter Life (gallons): 8000
Filter Life (months): 3 months
Warranty Info
Warranty Info
Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
The Pentek DGD-2501-20 comparable whole house water filter by Tier1 is a bonded polypropylene filter ideal for 20 x 4.5 inch filter housings. The DGD1-20BB by Tier1 goes to work immediately, to help ensure you serve only the greatest tasting water of the highest quality to your family. From chlorine to sediment, the DGD1-20BB reduces common water contaminants for up to three months. Order today!
Polypropylene media inhibits bacterial growth making it an ideal option for both municipal and well water applications. These filters are effective at capturing contaminants such as sand, sediment, silt, and more. Unlike carbon filter cartridges you wont have to worry about small carbon fines potentially spilling into your water, while still enjoying the benefits of filtered water throughout your home. Polypropylene filters are great for whole house water filtration and can be
TIER1-DGD1-20BB is comparable with the following part number(s)
- DGD-2501-20
- 155360-43
- DGD-2501-20
- FPMB-BB1-20
- P1-20BB
- Pentek DGD-2501-20
- SDC-45-2001
- SDF-45-2001
- TIER1-DGD1-20BB
- TIER1-P1-20BB
TIER1-DGD1-20BB fits the following model number(s)
- W20FFPH1CBPR
- CFS22
 |  |  | |
|---|---|---|---|
