    PENTEK-150235

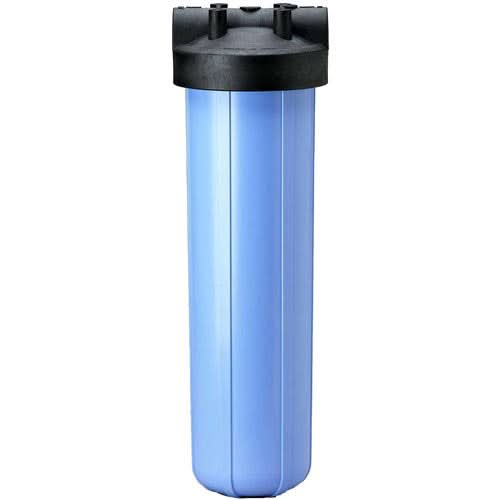

    20-BB 1.5-Inch Whole House Water Filter System

    • Fits standard 1.5-inch water lines

    • Well-suited for residential, commercial and industrial water filter applications

    • Heavy duty polypropylene Structural integrity NSF/ANSI Standard 42 tested and certified

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: 150235
    UPC: 799932589553
    Actual Size (in): 23 7/8 inches (height) x 7 1/4 inches (width)
    Brand: Pentek
    Fitting Size (in): 112 in
    Height (in): 23.88 in
    Width (in): 7.25 in
    Materials of Construction: Housing and Cap: Polypropylene, O-Ring: Buna-N
    Maximum Temperature (f): 100
    Flow Rate (gpm): 20.0
    description Instructions
    1. The Number 20 Big Blue Whole House Water Filtration System is easy to install
    2. The whole house system has 1.5-inch inlet/outlets for easy installation on the 1.5-inch main cold water line
    3. If you have 3/4-inch water lines, purchase the 20-BB-34 water filter housing
    4. If you have 1-inch water lines, purchase the 20-BB water filter housing
    file_download Downloads

    Large capacity whole house water filter housing for high flow applications. The number 20 heavy-duty whole house water filter construction can be used for heavy sediment applications. Durable construction. If installed before appliances, the number 20 Big Blue housings extend the life of washing machines, water heaters, and other household appliances by reducing sediment before it reaches the appliances when a sediment filter is used. Ideal for homes, farms, private wells, restaurants, swimming pools, spas, and trickle irrigation. The number 20 Big Blue housing's pressure release button on the cap allows for release of the whole house water filter pressure in order to more easily unscrew the sump from the cap. Leaking and clogging is prevented by the dynamically sealing, self-cleaning o-ring. Two number 20 Big Blue housings can be connected with a pipe nipple or pipe union. The union will allow for adjustment of the fitting in the event of leakage. NP-15: Use this pipe nipple to connect two number 20 Housings with 1.5-inch inlet/outlets.


    PENTEK-150235   is comparable with the following part number(s)

    • 150235
    • 20-BB-15
