    Tier1

    TIER1-54846

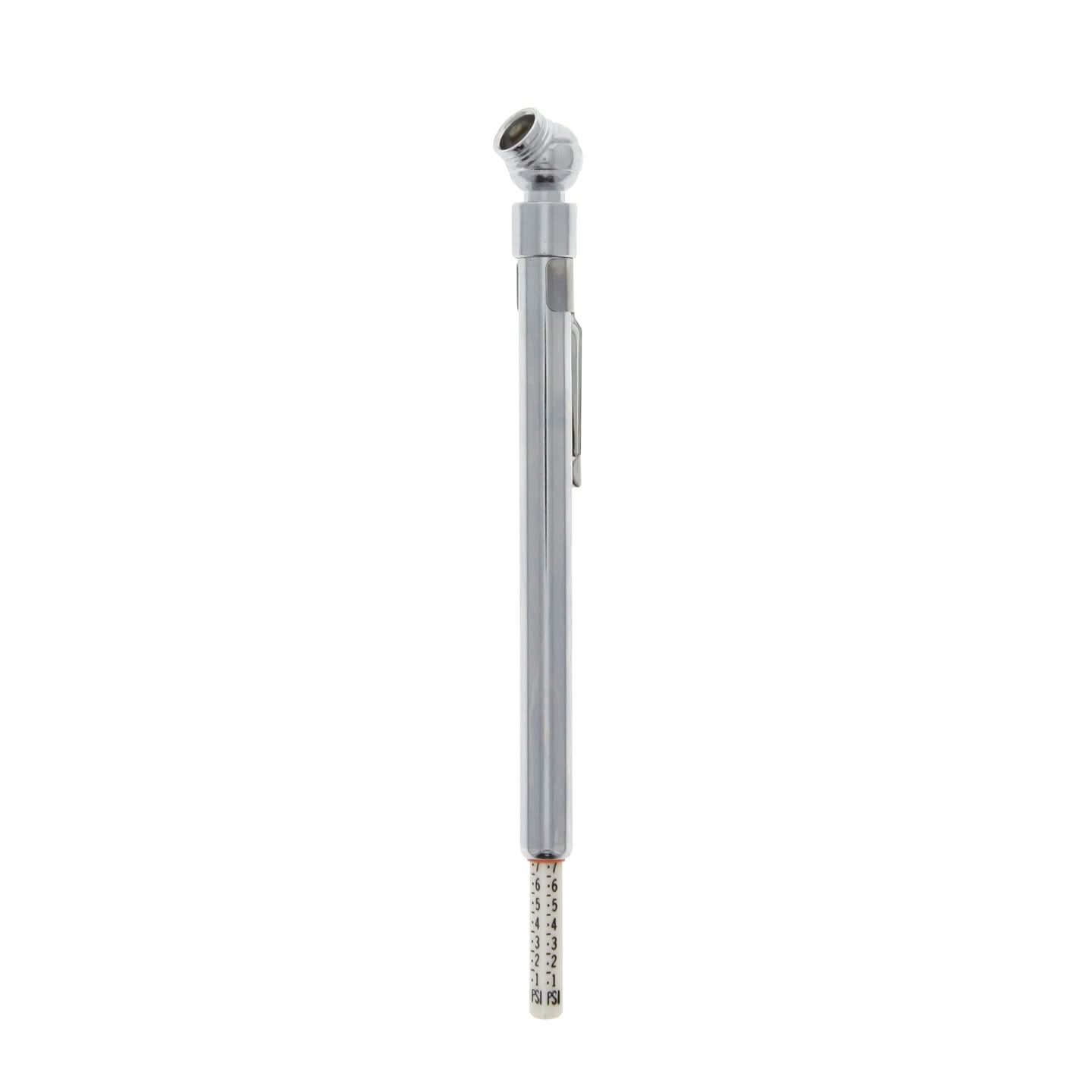

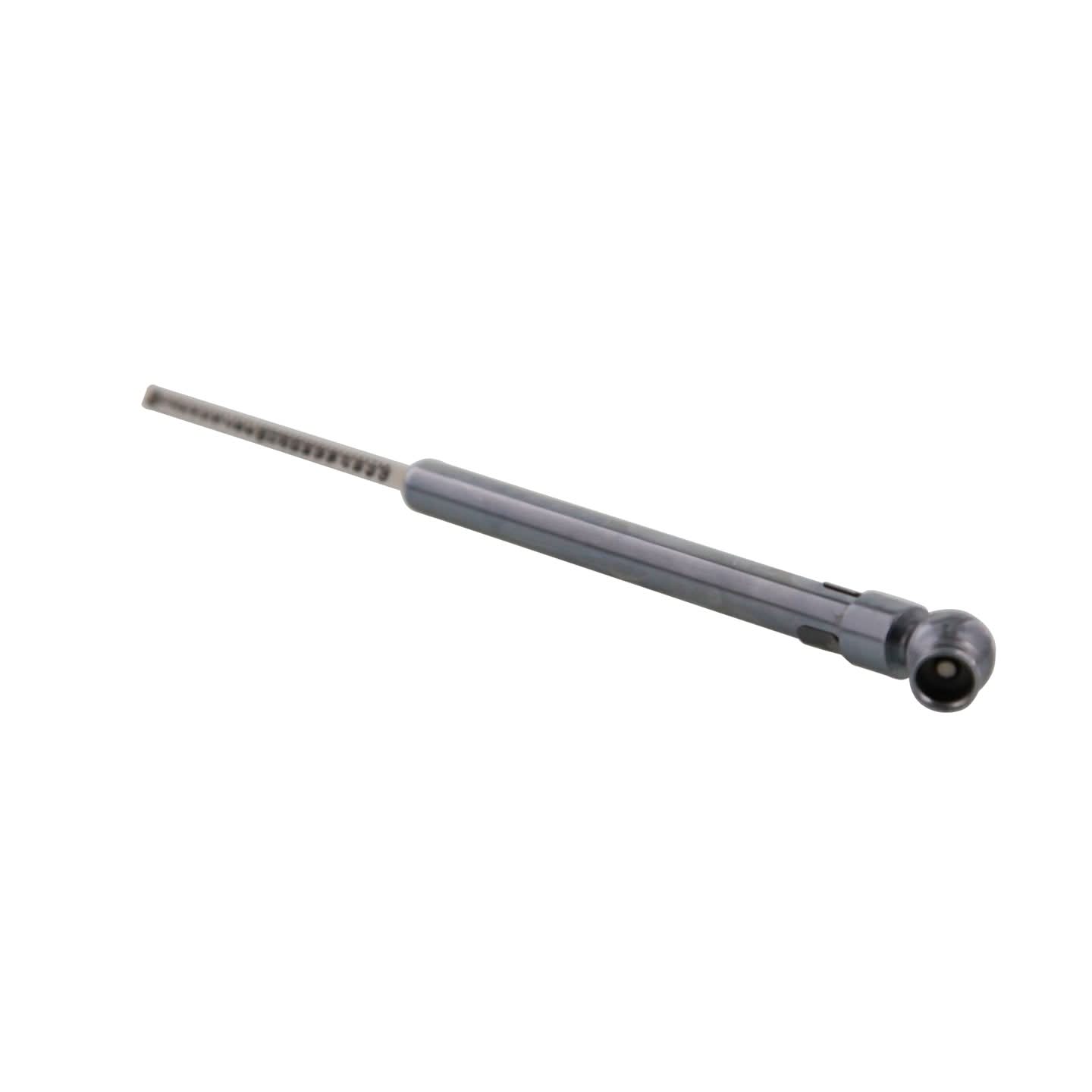

    54846 RO Tank Pressure Gauge (1-20 PSI)

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: 54846
    UPC: 799932601231
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Depth (in): 0.68 in
    Length (in): 6.2 in
    Width (in): 0.68 in
    description Instructions
    1. Turn inlet line off. Drain Tank, leave sink valve open
    2. Locate and remove air valve cap (top, bottom or side of tank)
    3. Test tank pressure, inflate with bicycle pump. If you have a standard RO tank, the air pressure should be 8 PSI when the tank is empty. If the RO tank is full, it should be 36 PSI
    4. Change your filters and membrane at the recommended frequency
    5. Clean your system occasionally with a product like Sani-System SS96RO, an easy to use, pre-measured, reverse osmosis system sanitizer (purchasable separately)
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

    This is a must have for all RO system owners! One of the main reasons for low water flow from a Reverse Osmosis System is low air pressure in the holding tank. The 54846 RO Tank Pressure Gauge measures 1-20 PSI in 1/2 PSI increments. Use a bicycle pump to inflate the RO bladder tank. Standard reverse osmosis tanks (3.2 gallons) should be 8 PSI of air pressure when the tank is empty. If the RO tank is full, it should be 36 PSI. With the 54846 holding tank air pressure gauge, you can easily check and maintain the holding tank air pressure to keep your Reverse Osmosis System running at peak efficiency. The bladder tank of your reverse osmosis water system WILL lose air pressure. Incorrect bladder tank air pressure will cause your system to operate incorrectly. Use this air pressure meter to monitor the air pressure in your RO bladder tank.


    TIER1-54846   is comparable with the following part number(s)

    • 54846
    • COMP-54846
