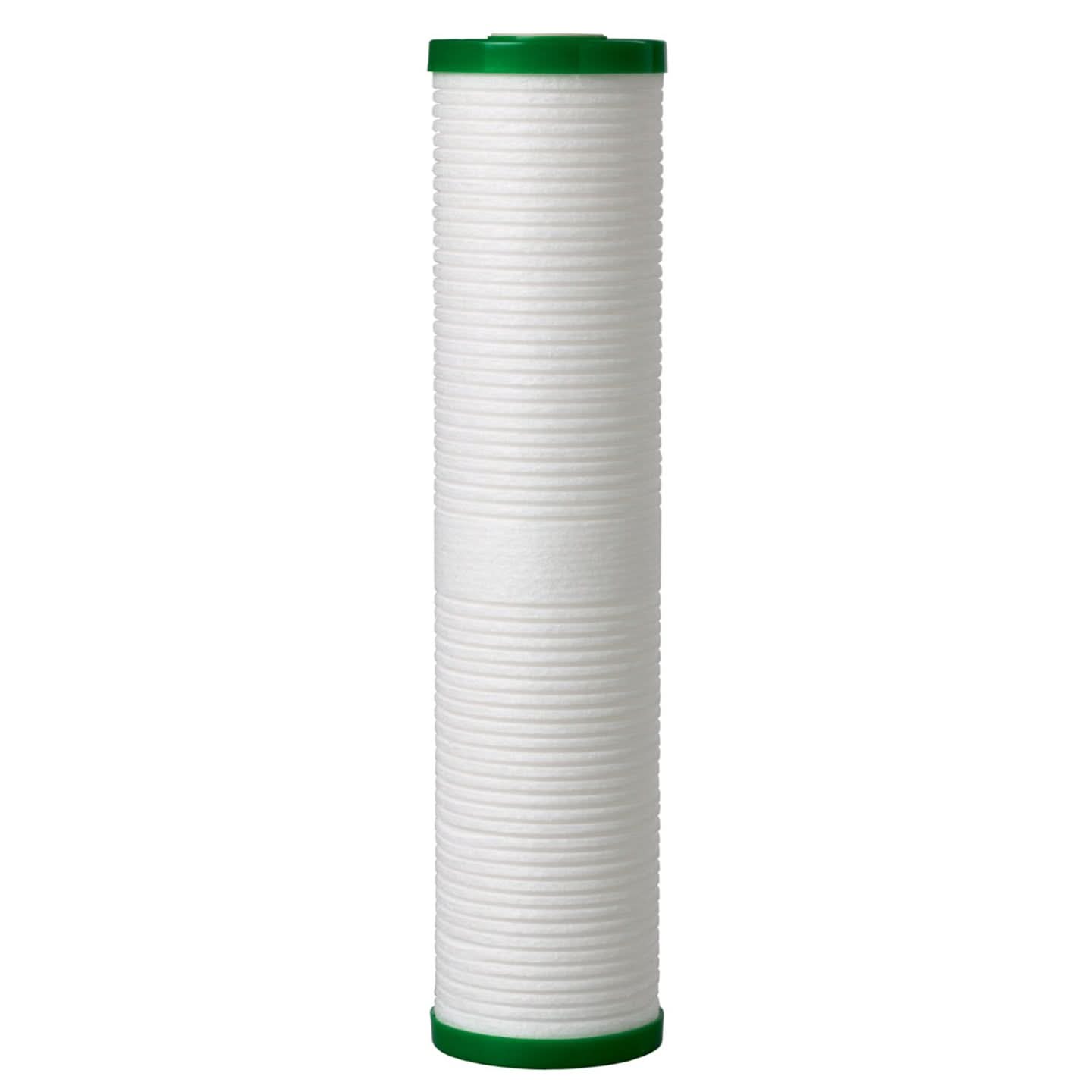

    3M Aqua-Pure AP811-2 Whole House Filter

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: 3M Purification, Inc
    Manufacturer's Id: AP811-2
    UPC: 016145171277
    Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
    Media: Spun Wound Grooved Polypropylene
    Primary Filter Media: Polypropylene
    Operating Pressure (psi): 0 - 690
    Operating Temperature (°F): 40 - 100
    Operating Temperature (°C): 4.4 - 37.8
    Brand: Aqua-Pure
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 016145811203 | 161451712772 | 016145171277
    Micron Rating Nominal: 25
    description Instructions
    1. The 3M Aqua-Pure AP811-2 water filter needs to be replaced every 6 months. The filter may need to be replaced sooner depending on your water quality and your water usage
    2. Turn off incoming water
    3. Bleed pressure from the unit by depressing the red button on top of unit
    4. Remove housing by sliding wrench up toward head then turn left to unscrew
    5. Wipe housing clean and insert new cartridge
    6. Lubricate o-ring and screw housing into head
    7. Turn water back on
    file_download Downloads
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particulates
  • Rust And Corrosion
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 6 months

    The AP811-2 by 3M Aqua-Pure water filter replacement cartridge reduces dirt and rust up to 25 microns. This 3M Aqua-Pure larger diameter dirt and rust cartridge is for larger homes and commercial applications. The 3M Aqua-Pure AP811-2 dirt & rust water filter cartridge is made from an exclusive process using pure white cellulose fibers. As water passes from the outer surfaces into the center of the cartridge, the filtering pores become increasingly smaller to remove even microscopic particles. Unlike string-wound and pleated paper cartridges, the rigid, sturdy construction of the 3M Aqua-Pure cartridges are able to withstand high pressure drop and stressful conditions such as water hammer.

    AQUAPURE-AP811-2   is comparable with the following part number(s)

    • AQUAPURE-AP811-2
    • 5577909
    • 55779-09
    • 56122-07
    • Ametek / Pentek DGD 7525-20 155356-43
    • AP802
    • AP802-1.5
    • AP802-1.5C
    • AP811-2
    • AP-811-2
    • 56189-05
