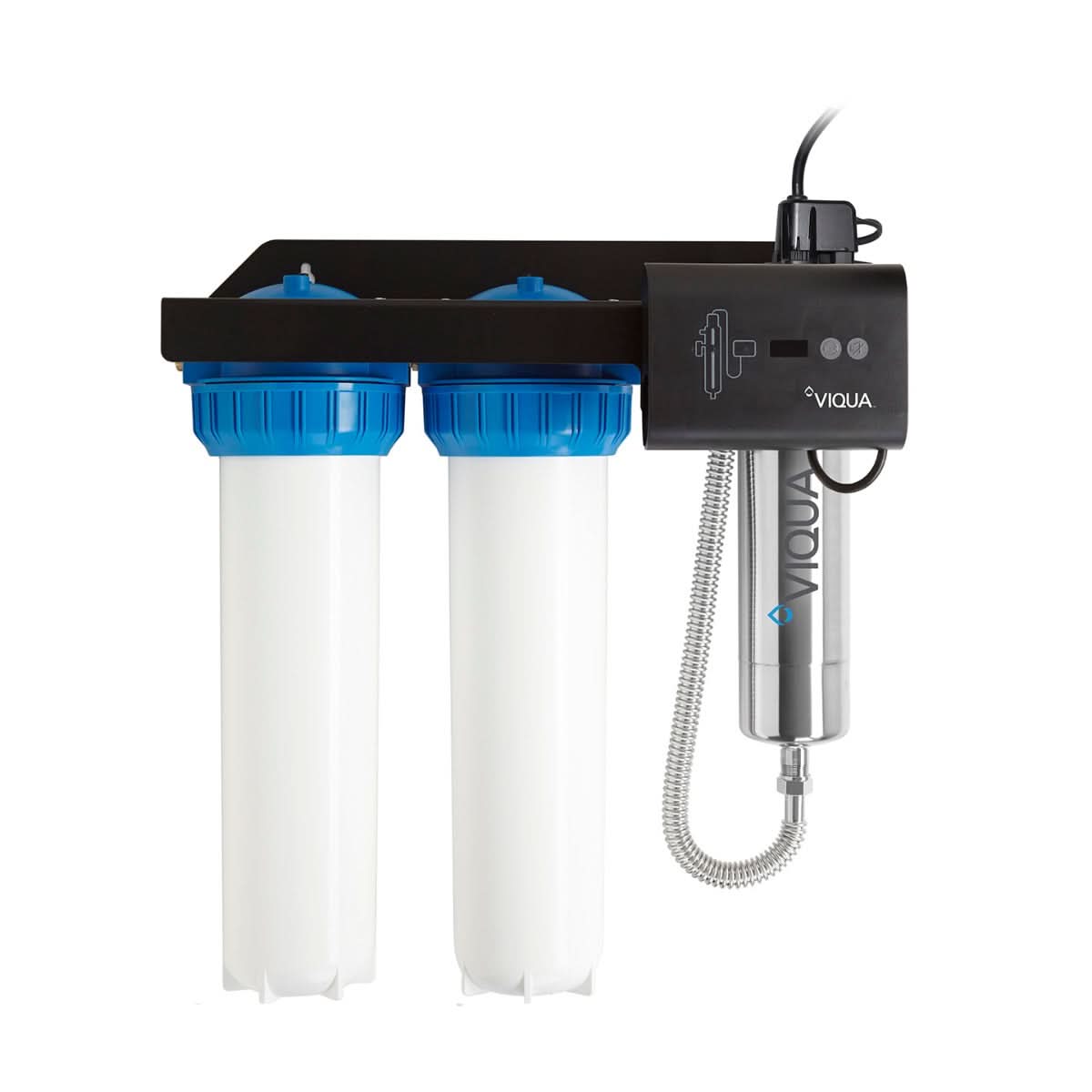

    IHS22-D4 Home Plus UltraViolet Water Disinfection System by Viqua

    • Simple installation and low maintenance

    • Reduces Giardia, E. Coli, Cysts, and Cryptosporidum

    • Protects valuable UV portion of system with sediment and chlorine pre-treatment

    • Requires both a 20-inch Big Blue 5-micron sediment filter and 20-inch Big Blue 5-micron carbon block filter before the UV treatment chamber

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Viqua
    Manufacturer's Id: IHS22-D4
    UPC: 773058106894
    Actual Size (in): 25 1/5 inches (length) x 12 inches (width) x 28 inches (height)
    Media: UltraViolet Light
    Operating Temperature (°F): 32 - 104
    Operating Temperature (°C): 0 - 40
    Brand: Viqua
    Height (in): 28 in
    Length (in): 25.2 in
    Width (in): 12 in
    Materials of Construction: Chamber Material: 304 Stainless Steel
    UPC's For Search: 773058106894 | 773058106894
    description Instructions
    1. UV system should be installed as demonstrated below:
    warning_amber Contaminants Reduced
  • Bacteria
  • Bad Taste And Odor
  • Chlorine
  • Cholera
  • Cryptosporidium
  • Dirt Sand Sediment
  • Ecoli
  • Giardia
  • Lead
  • Microorganisms
  • Odor
  • Particles Carry Viruses
  • Particles That Can Carry Odor
  • Protozoa
  • Salmonella
  • Sediment
  • Viruses
  • Vocs

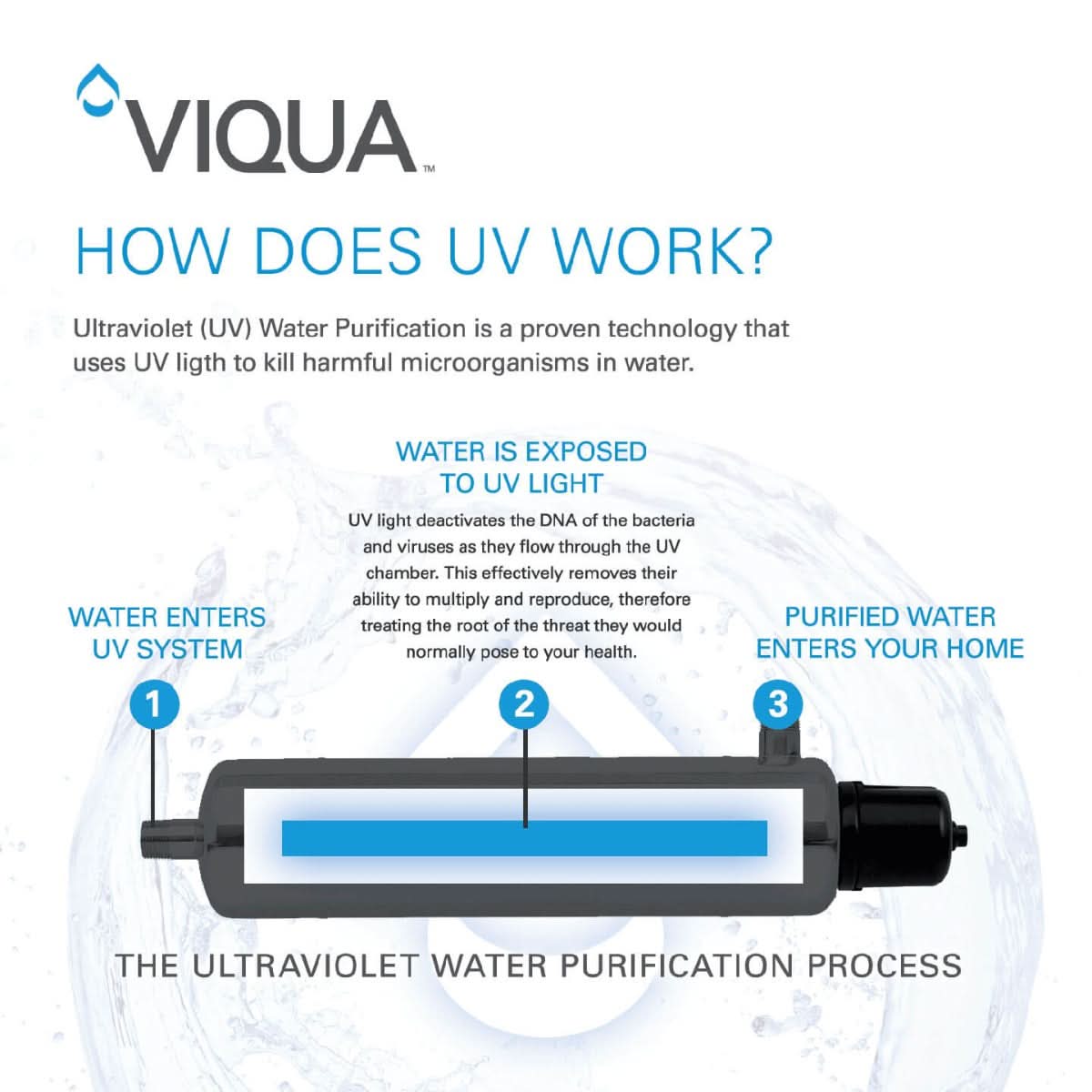

  • The IHS22-D4 Home Plus System by Viqua is a compact ultraviolet water disinfection system that allows for sediment pre-filtration, activated carbon pre-treatment, and UV sterilization. The IHS22-D4 system is a replacement for the SPV410-IHS22, SCM320-DWS22, and SC320-DWS22 systems. The pre-treatment of water occurs in the first two stages where two separate filters reduce the sediment and chlorine taste/odor down to 5 micron. Afterwards, the water moves on the final stage where it is treated with ultraviolet light. The UV sterilization process exposes microorganisms in the water to UV light which disables their DNA, rendering them unable to reproduce further. The end result of going through these 3 stages is crisp water with the confidence of decreased microorganism contaminants like Giardia, Cysts, and Cryptosporidium. Installing this filtration system is easy with it being shipped mounted on a heavy-duty, steel bracket and including the first set of filters. This system also includes options making it low maintenance like lamp replacement without turning off the water supply and a visual lamp life indicator. Order the IHS22-D4 by Viqua today!

    VIQUA-IHS22-D4   is comparable with the following part number(s)

    • IHS-D4
    • IHSD4
    • IHS D4
    • VIQUA-IHS22-D4

    VIQUA-IHS22-D4   fits the following model number(s)

    • Advanced Water Products CMB-520-HF
    • Advanced Water Products C2-02
    • Trojan UVMax 602810-102
    • Trojan UVMax 602805
    • Trojan UVMax 602732
    • 2045
    • 602805
    • 602732
    • CMB-520-HF
    • CMB 520 HF
    • CMB520HF
    • C2-02
    • C2 02
    • C202
    • 602810-102
