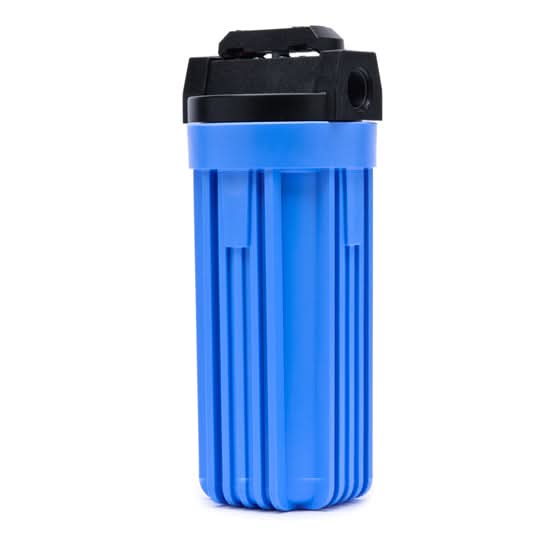

    3/4-Inch #10 Blue Valve in Head Whole House Housing

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: VIH-34-PR10
    UPC: 799932596308
    Actual Size (in): 12 1/4 inches (length) x 5 1/8 inches (outside diameter)
    Operating Pressure (psi): 30 - 125
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Brand: Pentek
    Fitting Size (in): 34 in
    Length (in): 12.25 in
    Outside Diameter (in): 5.13 in
    Materials of Construction: Cap: Reinforced Polypropylene, Button Assembly: 300-series Stainless Steel, EPDM, and Polypropylene, Valve Parts: Delrin
    UPC's For Search: 10051678501648
    description Instructions
    1. Easy to install number 10 Standard VIH Whole House Water Filter System. The housing is 12-1/2-inches x 5-1/8-inches(318 mm x 130 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. 3/4-inch inlet/outlet for easy installation on a cold water line
    3. A UB-1 mounting bracket is recommended for installation of the whole house housing
    4. NOTE: When installed, protect housing against freezing to prevent cracking of the filter and water leakage
    file_download Downloads

    The Pentek 150164 number 10 VIH standard whole house water filtration housing is tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements. The Valve In Head simplifies changing filters. Simply turn the valve on the housing to stop the water through the housing and change the filter. You do not need to purchase and install separate shut-off valves. Durable construction with thick walls for increased strength. The Pentek 150164 housing has a pressure relief/bleed button on the inlet side of cap. The Pentek 150164 number 10 Standard filter housing can use a wide variety of filters. Both Sediment and Carbon Drinking water filters can be used in this housing. The water filter cartridge is not included with the housing. This allows you to purchase the best water filter for your water supply. The number 10 VIH Filter Housing fits 2-3/8-inch to 2-7/8-inch diameter filter cartridges which makes it ideal for a variety of applications. Whole House housings extend the life of washing machines, water heaters, and other household appliances. The Pentek 150164 number 10 water filter housing has 3/4-inch inlet/outlets. Leaking is prevented by the dynamically sealing o-ring. The O-Ring should be replaced periodically to prevent leaks. Number 10 VIH Standard Whole House Housing Tips: For many applications, it makes sense to install two whole house housings. The first housing is for sediment reduction, the second housing is for the carbon filter to improve taste and odor and reduce additional contaminants. By installing the sediment filter first, the carbon filter will last longer because it does not get clogged with sediment. Since carbon filters are more expensive, it is better to have the sediment filter first that needs to be replaced more often. If you have a lot of sediment in your water, you may want to consider three housings. The first two housings are for sediment reduction. The first housing contains a higher micron sediment filter and the second housing contains a lower micron sediment filter. The third housing is for the carbon taste and odor water filter. An example application is the first housing containing a P25 filter, the 2nd housing containing a P5 filter, and the 3rd housing containing a carbon filter such as the GAC-10. Two number 10 Standard housings can be connected with a pipe nipple or pipe union. There are several pipe nipples available that can be used to connect two number 10 Standard Housings. Use the NP-34 pipe nipple to connect two number 10 Housings with 3/4-inch inlet/outlets.

    PENTEK-VIN-34-PR10   is comparable with the following part number(s)

    • 150164
    • VIN-34-PR10
