    PENTEK-SLIM-38-PR5

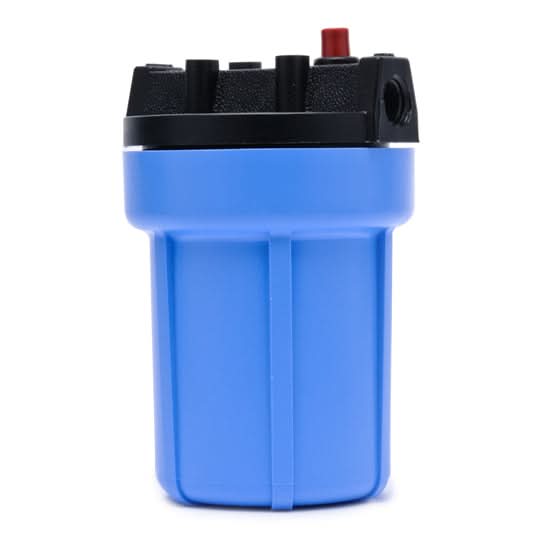

    Pentek 158002 3/8-Inch #5 Blue/Black Water Filter Housing w/ Pressure Release

    • The Pentek 158002 uses any 5-inch L x 2.5-inch W sediment or carbon drinking water filter

    • The Pentek 158002 housing has 3/8-inch inlet/outlets in the black reinforced polypropylene cap

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: SLIM-38-PR5
    UPC: 799932596056
    Actual Size (in): 7 3/8 inches (length) x 4 5/8 inches (outside diameter)
    Operating Pressure (psi): 30 - 125
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Brand: Pentek
    Fitting Size (in): 38 in
    Length (in): 7.38 in
    Outside Diameter (in): 4.63 in
    Materials of Construction: O-Ring: Buna-N, Housing: Polypropylene (Blue), Cap: Reinforced Polypropylene, Button Assembly: 300-series Stainless Steel, EPDM and Polypropylene
    UPC's For Search: 10051678580025
    description Instructions
    1. Housing is 7-inch x 4-3/8-inch (178 mm x 111 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. A SL-BR mounting bracket is recommended for installation of the whole house housing
    file_download Downloads

    The Pentek 158002 5-inch housing is perfect for applications in RVs or campers, boats, small sinks, countertop residential filtration, pre- and post-reverse osmosis filtration, or humidifying systems. The Pentek 158002 Slim-Line water filter housing has outstanding chemical compatibility and is ideal for use in a variety of low flow applications. The Pentek 158002 features a pressure release button on the housing cap. Push this button before changing the filter and it will release the pressure in the sump and make it easier to take off, making changing the filter quick and easy. The water filter cartridge is not included with the housing--this allows you to purchase the best water filter for your water supply. Leaking is prevented by the dynamically sealing O-Ring. The O-Ring should be replaced periodically to prevent leaks. Two number 5 housings can be connected with a pipe nipple or pipe union. There are several pipe nipples available that can be used to connect two number 5 Standard Housings. Use the NP-38 pipe nipple to connect two number 5 Housings with 3/8-inch inlet/outlets.


    PENTEK-SLIM-38-PR5   is comparable with the following part number(s)

    • 158002
    • SLIM-38-PR5
