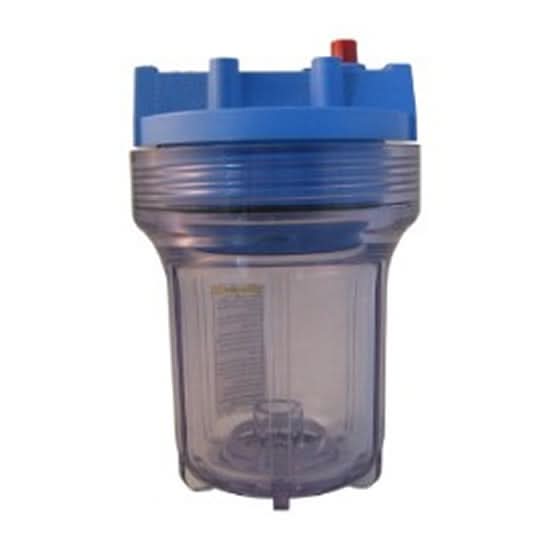

    Pentek 158110 3/8-Inch #5 Clear/Blue Water Filter Housing

    • The Pentek 158110 uses any 5-inch L x 2.5-inch W sediment or carbon drinking water filter

    • The Pentek 158110 housing has 3/8-inch inlet/outlets in the blue reinforced polypropylene cap

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: 158110
    UPC: 799932590047
    Brand: Pentek
    Advertised Size: 5 x 2-1/2
    Fitting Size (in): 38 in
    Materials of Construction: Housing: SAN, Cap: Reinforced Polypropylene, O-Ring: Buna-N
    Maximum Temperature (f): 125
    description Instructions
    1. Easy to install Number 5 Slim Line Clear Water Filter System. The housing is 7-3/8-inch L x 4-5/8-inch W (187 mm x 118 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. 3/8-inch inlet/outlet for easy installation on a cold water line
    3. An SL-BR mounting bracket is recommended for installation of the whole house housing

    The Pentek 158110 5-inch housing is perfect for applications in RVs or campers, boats, for small sinks, countertop residential filtration, pre- and post-reverse osmosis filtration, or humidifying systems. The Pentek 158110 comes with a red pressure relief button for help relieving the pressure when changing water filters. The Pentek 158110 Slim-Line water filter housing has outstanding chemical compatibility and is ideal for use in a variety of low flow applications. The Pentek 158110 features a clear sump making it easy to see the condition of the filter and water flow. This eliminates the hassle of removing the sump to check if the filter needs to be changed. The water filter cartridge is not included with the housing. This allows you to purchase the best water filter for your water supply. Leaking is prevented by the dynamically sealing O-Ring. The O-Ring should be replaced periodically to prevent leaks. Two number 5 housings can be connected with a pipe nipple or pipe union. There are several pipe nipples available that can be used to connect two number 5 Standard Housings. Use the NP-38 pipe nipple to connect two number 5 Housings with 3/8-inch inlet/outlets.

    PENTEK-158110   is comparable with the following part number(s)

    • 158110
