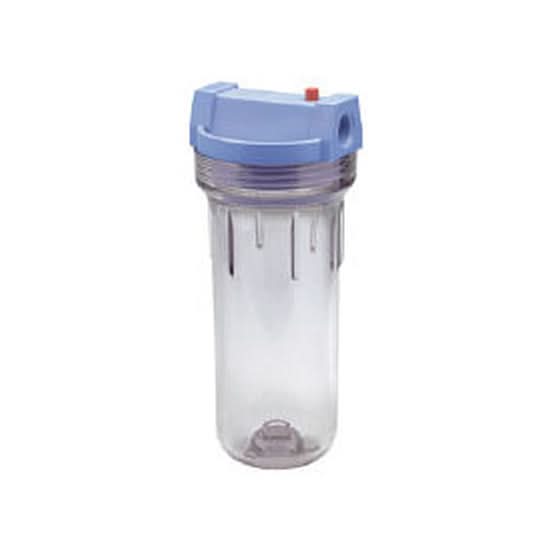

    Pentek 158117 Slim Line #10 Clear 1/4-Inch Housing w/pr

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: 158117
    UPC: 799932590085
    Brand: Pentek
    Advertised Size: 10 x 2-1/2
    Fitting Size (in): 14 in
    Materials of Construction: Housing: SAN, Cap: Reinforced Polypropylene, O-Ring: Buna-N
    Maximum Temperature (f): 125
    description Instructions
    1. Easy to install Number 10 Slim Line Clear Water Filter System. The housing is 12-1/8-inches x 4-5/8-inches (308 mm x 118 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. 1/4-inch NPT inlet/outlets for easy installation on a cold water line
    3. An SL-BR mounting bracket is recommended for installation of the filter housing

    The Pentek 158117 filter housing has 1/4-inch NPT inlet/outlets. The Pentek 158117 slim design reduces space required for installation without sacrificing capacity. FDA Grade. The Pentek 158117 has a leak-proof seal with a top-seated o-ring. The housing has four bosses molded into the cap for mounting purposes. The Pentek 158117 Slim-Line filter housings are an excellent choice for low flow applications and when space and chemical compatibility are concerns. The filter housing is clear to allow for on-site examination of flow, performance, and cartridge flow. The Pentek 158117 is manufactured of clear, Styrene-Acrylonitrile (SAN). The sumps are stress relieved for added clarity and strength. The blue polypropylene caps have a pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges. The water filter cartridge is not included with the housing. This allows you to purchase the best water filter for your water supply. The Pentek 158117 filter housing uses 10-inch L x 2.5-inch W water filters. Two number 10 Standard housings can be connected with a pipe nipple or pipe union. There are several pipe nipples available that can be used to connect two number 10 Standard Housings. Use the NP-14 pipe nipple to connect two number 10 Housings with 1/4-inch inlet/outlets.

    PENTEK-158117   is comparable with the following part number(s)

    • 158117
