    PENTEK-158129

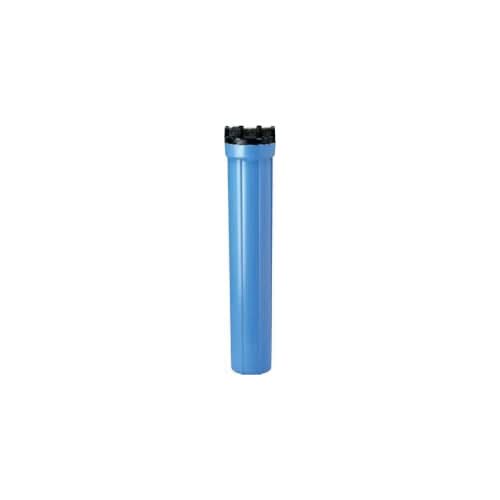

    Pentek 158129 #20 Slim Line 3/8-Inch Blue Filter Housing

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentek
    Manufacturer's Id: 158129
    UPC: 635510446729
    Operating Temperature (°F): 30 - 125
    Operating Temperature (°C): -1.1 - 51.7
    Brand: Pentek
    Advertised Size: 20 x 2-1/2
    Fitting Size (in): 38 in
    Materials of Construction: Housing: Polypropylene, Cap: Reinforced Polypropylene, O-Ring: Buna-N
    Maximum Temperature (f): 125
    Fitting Type: NPT
    Flow Rate (gpm): 5.0
    description Instructions
    1. Easy to install number 20 Slim Line Opaque Water Filter System. The housing is 21-7/8-inches x 4-3/8-inches (556 mm x 111 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. 3/8-inch NPT inlet/outlets for easy installation on a cold water line
    3. An SL-BR mounting bracket is recommended for installation of the filter housing
    workspace_premium Certifications
  • NSF/ANSI Standard 42

  • The Pentek 158129 filter housing has 3/8-inch NPT inlet/outlets. The Pentek 158129 slim design reduces space required for installation without sacrificing capacity. FDA Grade. The Pentek 158129 has a leak-proof seal with a top-seated o-ring. The housing has four bosses molded into the cap for mounting purposes. The Pentek 158129 Slim-Line filter housings are an excellent choice for low flow applications and when space and chemical compatibility are concerns. The water filter cartridge is not included with the housing. This allows you to purchase the best water filter for your water supply. The Pentek 158129 is molded from rugged reinforced polypropylene. The Pentek 158129 can be used in undersink, in countertop residential filtration, in pre- and post-reverse osmosis filtration, recreational vehicle filtration, and food service and humidifying systems. The Pentek 158129 housings have a black, reinforced polypropylene cap. The Pentek 158129 filter housing uses 20-inch L x 2.5-inch W water filters. Two number 20 Slim-Line housings can be connected with a pipe nipple or pipe union. There are several pipe nipples available that can be used to connect two number 20 Slim-Line Housings. Use the NP-38 pipe nipple to connect two number 20 Slim-Line Housings with 3/8-inch inlet/outlets.
