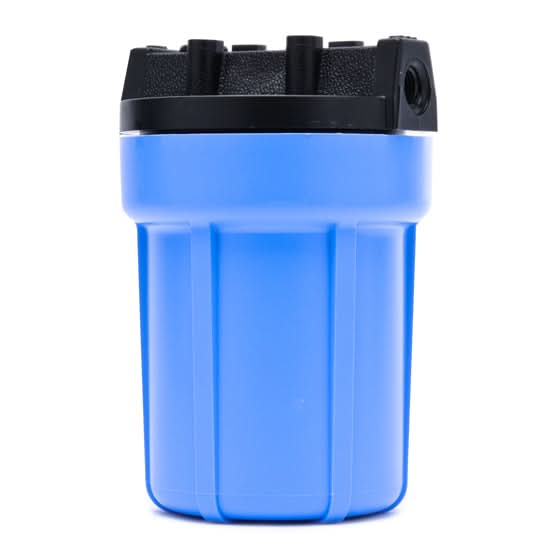

    Pentek 158138 1/4-Inch #5 Blue/Black Water Filter Housing

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: SLIM-14-WPR5
    UPC: 799932596049
    Actual Size (in): 7 3/8 inches (length) x 4 5/8 inches (outside diameter)
    Operating Pressure (psi): 30 - 125
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Brand: Pentek
    Fitting Size (in): 14 in
    Length (in): 7.38 in
    Outside Diameter (in): 4.63 in
    Materials of Construction: O-Ring: Buna-N, Cap: Reinforced Polypropylene, Housing: Polypropylene (Blue)
    UPC's For Search: 10051678581381
    description Instructions
    1. Easy to install Pentek number 5 Slim Line Water Filter System. The housing is 7-inch x 4-3/8-inch (178 mm x 111 mm). You will need to allow slightly more room in addition to the housing dimensions for installation
    2. 1/4-inch inlet/outlet for easy installation on a cold water line
    3. A SL-BR mounting bracket is recommended for installation of the whole house housing
    file_download Downloads

    The Pentek 158138 5-inch housing is perfect for applications in RVs or campers, boats, small sinks, countertop residential filtration, pre- and post-reverse osmosis filtration, or humidifying systems. The Pentek 158138 Slim-Line water filter housing has outstanding chemical compatibility and is ideal for use in a variety of low flow applications. The water filter cartridge is not included with the housing--this allows you to purchase the best water filter for your water supply. It uses any 5-inch L x 2.5-inch W sediment or carbon drinking water filter. The Pentek 158138 housing has 1/4-inch inlet/outlets in the black reinforced polypropylene cap. Leaking is prevented by the dynamically sealing o-ring. The O-Ring should be replaced every couple of water filter changes to prevent leaks. Two number 5 housings can be connected with a pipe nipple or pipe union. There are several pipe nipples available that can be used to connect two number 5 Standard Housings. Use the NP-14 pipe nipple to connect two number 5 Housings with 1/4-inch inlet/outlets.

    PENTEK-SLIM-14-WPR5   is comparable with the following part number(s)

    • 158138
    • SLIM-14-WPR5
