    Aqua-Pure

    AQUA-PURE-IL-IM-01

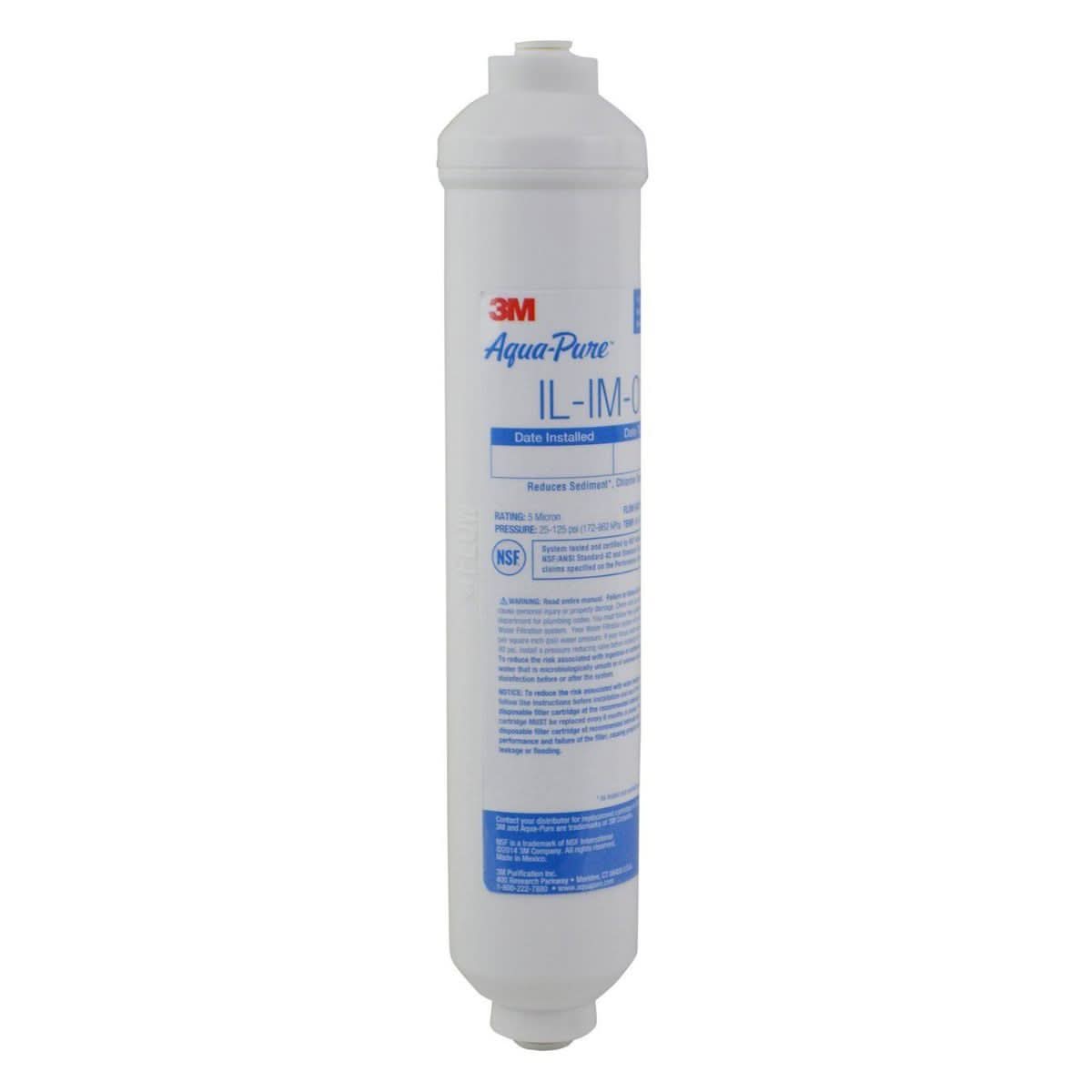

    3M Aqua-Pure IL-IM-01 Replacement Filter Cartridge

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: 3M Purification, Inc
    Manufacturer's Id: IL-IM-01
    UPC: 016145066160
    Operating Pressure (psi): 25 - 125
    Operating Temperature (°F): 40 - 100
    Warranty Guarantee: 1-Year Limited Warranty
    Brand: Aqua-Pure
    Advertised Size: 10-5/16 x 2-1/8
    Fitting Size (in): 14 in
    UPC's For Search: 016145066160
    Micron Rating Nominal: 5
    Fitting Type: Push In
    Flow Rate (gpm): 0.5
    description Instructions
    1. Please depressurize the refrigerator in one of these three ways
    2. Shut off water flow to refrigerator/filter, place a cup under the dispenser area to catch water and depress the dispenser activator
    3. Shut off water at the main water valve to the home and open any faucet within the home
    4. Shut off water to the refrigerator/filter, remove the automatic ice-maker tray/bucket and empty its contents, replace the ice-maker tray/bucket (when the ice-maker calls for ice, the system will be depressurized)
    5. Locate an easily accessible section of tubing; Shut-off valve (not included) must be on inlet side of filter cartridge
    6. Connect the inlet port of the filter to incoming water line
    7. Flush 4 gallons (or approximately 8 minutes) through filter before use
    8. Connect the outlet port of the filter to the water line going to the refrigerator
    9. Turn on water supply line (if leak occurs, tighten fittings or reinsert tubing until leak stops)
    10. If leak does not stop, turn off water supply to refrigerator and recheck all connections
    file_download Downloads
    workspace_premium Certifications
  • NSF/ANSI Standard 42
  • warning_amber Contaminants Reduced
  • Chlorine
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 2500
    Filter Life (months): 12 months
    verified_user Warranty Info
    Warranty Guarantee: 1-Year Limited Warranty

    The 3M Aqua-Pure IL-IM-01 is an inline filter installed in the water supply line to water-dispensing appliances. It will provide great tasting water, ice, or coffee that is free of the chlorine taste and odor that is so common in municipal water supplies. Its simple design makes it highly adaptable to a variety of uses. Designed to install directly and easily to any 1/4-inch water line with 1/4-Inch Quick Connect fittings. Perfect as an external filter for refrigerators without an integrated filter. 1-Year Limited Warranty.


    AQUA-PURE-IL-IM-01   is comparable with the following part number(s)

    • IL-IM-01
    • ILIM01
    • 1ZKK3
    • 41104212
    • 56172-02
    • 5617202
