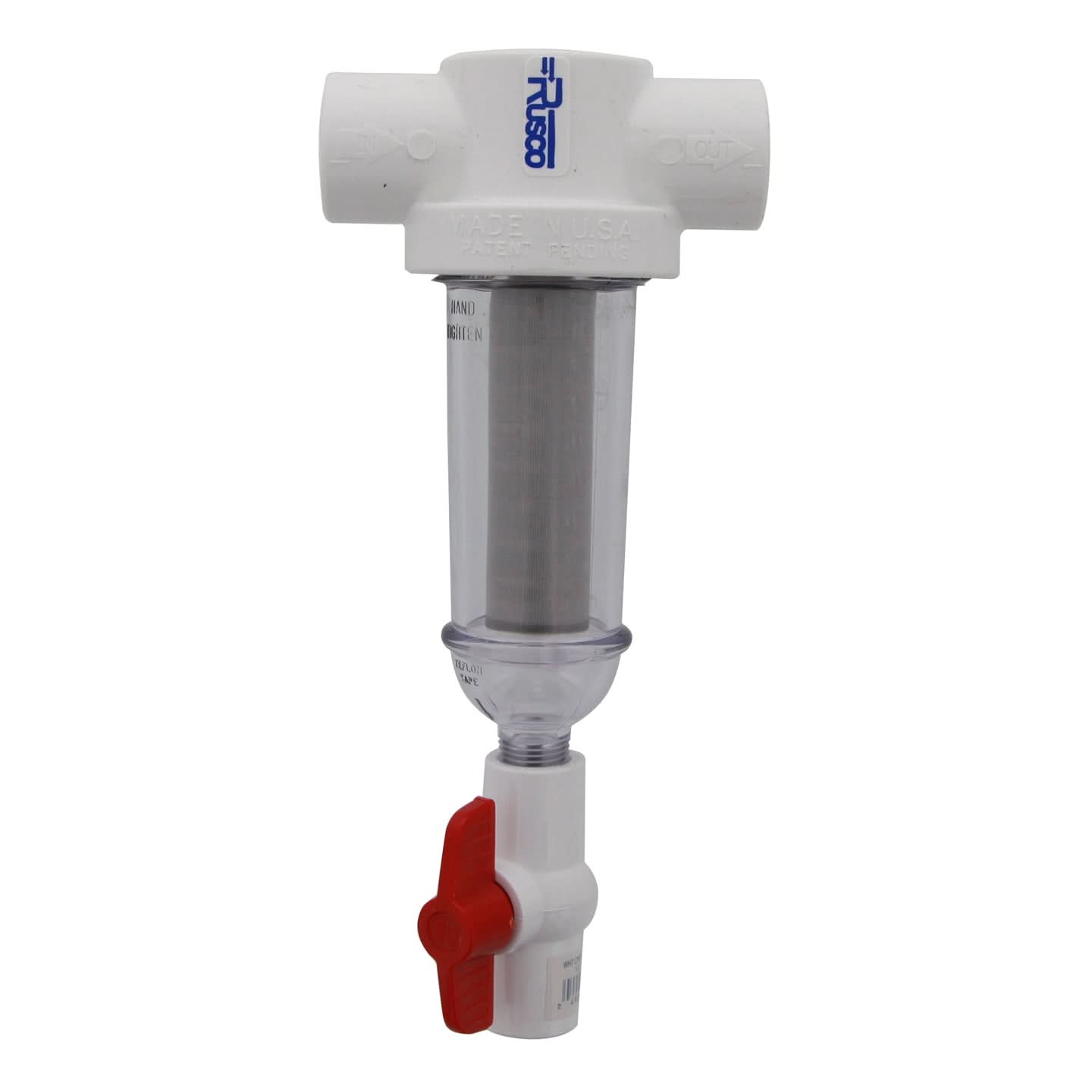

    Rusco 2-100SS-F Stainless Steel Screen Spin-Down Filter System

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Rusco
    UPC: 659498014022
    Actual Size (in): 17 7/8 inches (length) x 5 1/2 inches (width)
    Media: Stainless Steel Screen
    Primary Filter Media: Stainless Steel
    Brand: Rusco
    Fitting Size (in): 2 in
    Length (in): 17.88 in
    Width (in): 5.5 in
    Media Type: Specialty Filter
    description Instructions
    1. Install the filter in a location that protects it from damage such as impact, freeze, excessive heat, chemical contact and water hammer
    2. Install the filter in the preferred vertical position with the purge outlet pointing down and also where it can be easily accessed for cleaning and maintenance
    3. Install the filter on the discharge side of the pump to allow the filter to be cleaned by purging through the flush valve
    4. Refer to arrows on the filter body for correct water flow direction
    5. Adhere to all local and state codes, laws and regulations
    6. Use approved solvent cement for gluing PVC connections. Follow gluing instructions on glue container. REMOVE CLEAR COVER FROM THE PVC BODY PRIOR TO THE GLUING PROCESS. Any excess glue that comes in contact with the clear cover will damage it
    7. The Rusco filter screens should be cleaned every few months. No tools are required for cleaning. The filter screen should be replaced every 6-12 months depending on your water usage and water quality
    8. Clean Rusco filter by purging separated solids through the flush valve while the filter is under system pressure. The purging process can be done manually with the flush valve or automated with our optional Automatic Flush Valve
    9. The filter element may need to be removed and cleaned. To remove the filter element, turn off the water supply, drain water pressure, unscrew the clear cover and remove the filter element. Wash off collected sediment by spraying with water
    10. Remove fine particles wedged in the screen with a soft brush. Apply silicone grease to o-rings if needed and reassemble. HAND TIGHTEN ONLY
    warning_amber Contaminants Reduced
  • Hard Scale
  • Sand Coarse
  • Sand Extra Fine
  • Sand Fine
  • Sediment

  • The Rusco clear cover is made of high impact polymer resin for maximum strength and durability. The top of the Rusco system is made of PVC. The Rusco sediment filters use centrifugal separation technology to filter sediment from water. The Rusco filtration system has a stainless steel screen filter. The Rusco filter system's filter screen is cleanable and reusable. The Rusco systems have a clear cover that can easily be removed for cleaning. No tools are required to remove the cover. Sediment is visible through the clear cover indicating when the filter needs to be flushed. Rusco Sediment Filters have an open ball valve to easily flush sediment. When the Rusco filter is full of sediment, simply open the ball valve to flush the sediment. Rusco water filtration systems are made from molded non-corrosive materials. If you have a standard Rusco Spin-Down model that is 1-1/2-inch or 2-inch, you can convert it to a Rusco Sediment Trapper model by replacing the filter screen element with a sediment trapper filter.
