    TIER1-ECP1-10

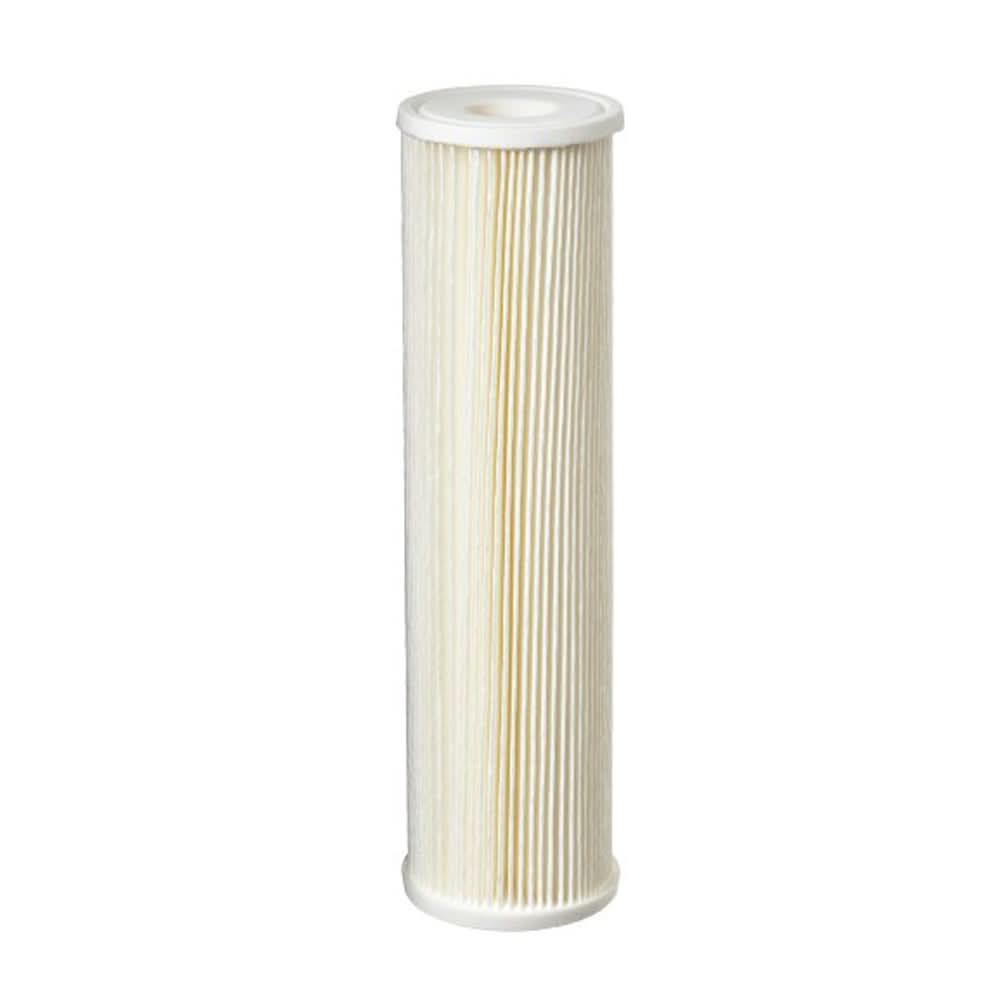

    10 X 2.5 Pleated Polyester Replacement Filter (1 micron)

    • The polypropylene core adds additional strength

    • A united and reliable filter with fused together end caps and gaskets

    • Cost effective filter option

    • Easy to install and recommended for chlorinated water supplies

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: TIER1-ECP1-10
    UPC: 641945742398
    Operating Temperature (°F): 40 - 125
    Brand: Tier1
    Advertised Size: 10 x 2-1/2
    UPC's For Search: 051678481431
    Micron Rating Nominal: 1
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge
    4. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    5. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    6. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    7. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    8. Insert new filter cartridge
    9. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    10. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Limescale
  • Sand
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 6 months

    The 10 X 2.5 Pleated Polyester Replacement Filter (1 micron) is one of the best aftermarket filters on the market today. This easy to install filter sized 10 x 2.5 inches is a pleated polyester filter with cellulose polyester components. Typically pleated polyester filters are great for filtering well water, however due to the added cellulose, it is not recommended for use with well water. Be sure to only use this filter with chlorinated water supplies, as any bacteria present in well water will eat away at the cellulose media, in turn degrading the quality of the filter. In addition the polypropylene core adds extra strength to the integrity of the filter. Change this filter out once every six months for best results. If you have significant sediment issues in your water the pleated material allows a greater dirt holding capacity. What's convenient about pleated filter's is the ability to rinse off at least once during the life of the filter, helping optimal performance levels. Order yours today!


    TIER1-ECP1-10   is comparable with the following part number(s)

    • PENTEK-ECP1-10
    • 255481-43
    • 25548143
