    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Tier1

    TIER1-P25-40

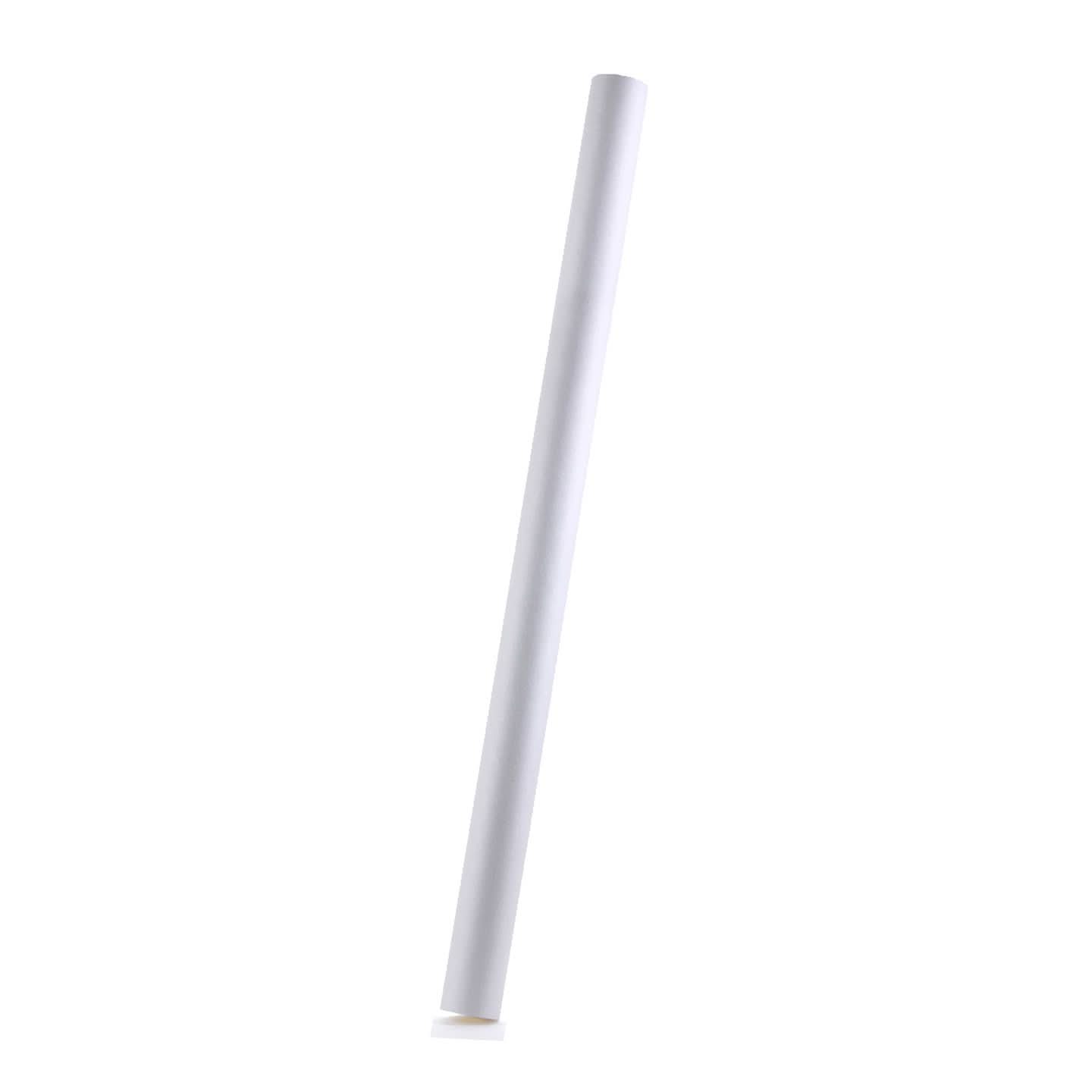

    Tier1 40 inch x 2.5 inch Whole House Sediment Water Filter (25 Micron)

    Fits large 40 x 2.5 inch housings
    • Made from NSF 42 certified materials

    • Resistant to various fluids including acids, alkalies, and other liquids

    • Greater dirt holding capacity

    • Inhibits the growth of bacteria

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: P25-40
    UPC: 799932619878
    Actual Size (in): 40 inches (length) x 2-1/2 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 40 x 2-1/2
    Length (in): 40 in
    Outside Diameter (in): 2.5 in
    Media Type: Sediment Filter
    UPC's For Search: 799705708174
    Micron Rating Nominal: 25
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge
    4. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    5. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    6. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    7. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    8. Insert new filter cartridge
    9. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    10. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particles
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

    The Tier1 40 inch x 2.5 inch whole house sediment water filter (25 Micron) (TIER1-P25-40), captures medium to fine sediment. The spun wound media captures more dirt than string wound options. The large size of this filter, ensures greater surface area, and is perfect for commercial applications. In addition this filter is both bacteria and chemical resistant, able to withstand various types of fluids such as acids and alkalis. Order today!


    TIER1-P25-40   is comparable with the following part number(s)

    • SDC-25-4025
    • SDF-25-4025
