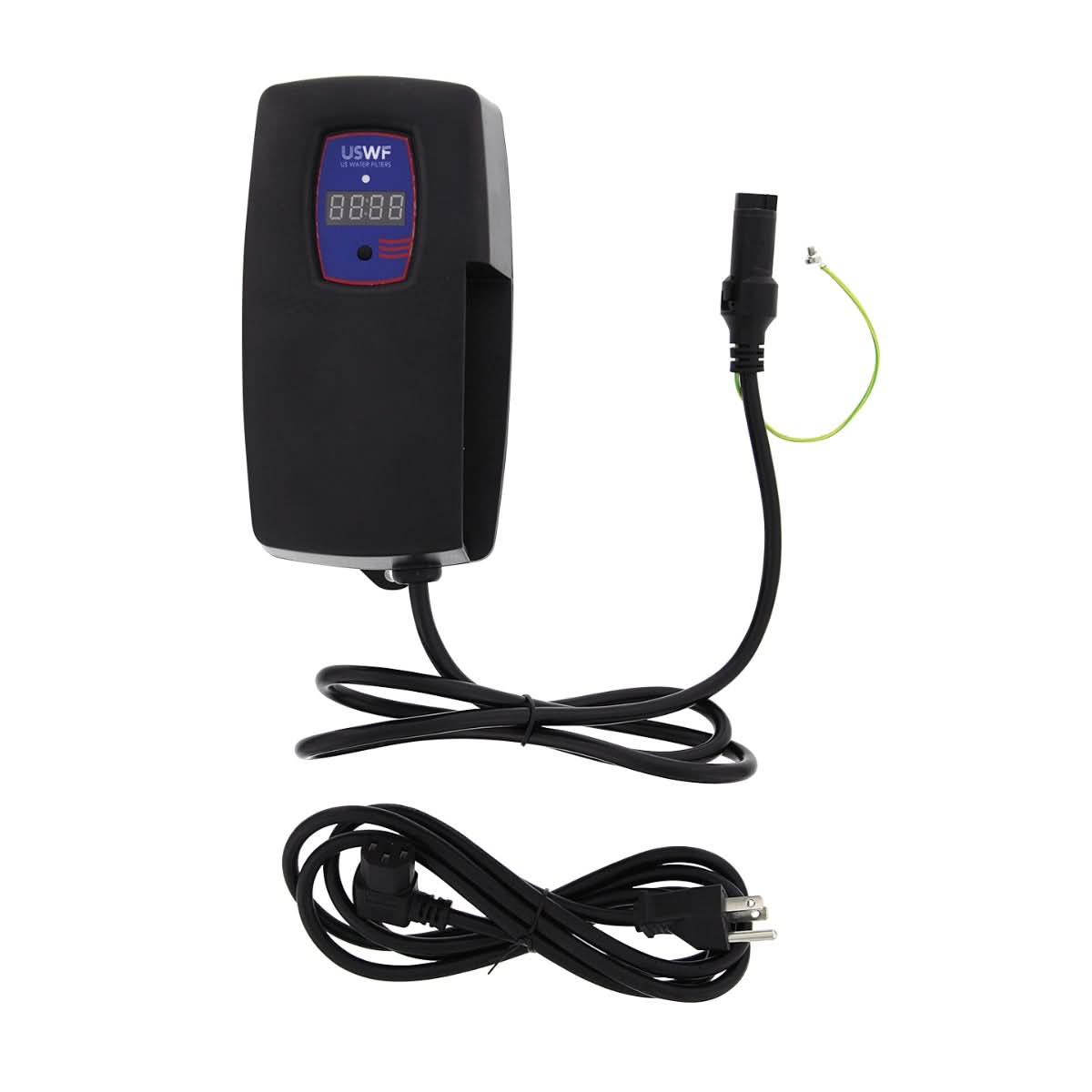

    RCHO4.12 USWF UV Disinfection System | Replacement Controller for USWF-4C101, 4C151, & 4CR2

    • Replacement Controller Ballast for the USWF 4C101, 4C151, & 4CR2 ultraviolet water treatment systems

    • Provides both audible and visual lamp change reminders

    • Inculdes detachable power cord and UV lamp connector

    • Three-year, no-hassle warranty

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: USWF
    Manufacturer's Id: USWF-RCHO4.12
    Actual Size (in): 8.6 inch (Length) x 4.2 inch (Width) x 4 inch (depth)
    Warranty Guarantee: Three (3) year Limited Warranty
    Brand: USWF Water Treatment
    verified_user Warranty Info
    Warranty Guarantee: Three (3) year Limited Warranty

    The USWF-RCHO4.12 is a replacement controller for the USWF-4C101, 4C151, & 4CR2 systems. USWF replacement controllers feature a splash proof case, a fully potted ballast to protect from possible water damage and to improve heat dissipation, and are backed by a three-year, no-hassle warranty. The controller has an LED display with a 4-digit lamp change reminder, along with an audible lamp out indicator. Failure to replace the UV lamp on schedule will put additional stress on the controller ballast, always change your lamp after the reminder alert for optimal system performance.

    How Does UV Disinfection Work?

    Ultraviolet light water treatment systems utilize special UV lamps that emit UV light at a wavelength that damages microorganisms cellular function neutralizing the microorganisms DNA and their ability to function and reproduce. Because the microorganisms cannot replicate they cannot infect other organisms they come in contact with. This disinfects the water without the need for chemicals which need to be precisely administered and carefully monitored. Once installed the UV lamp runs 24/7 constantly disinfecting the water that travels through it and only requires minimal annual maintenance to keep running.

    Because UV light only travels in a straight line any shadow or obstruction will reduce its efficiency. This means it is important to filter your water before UV treatment to make sure suspended particles like silt and sand are removed. Hardness minerals can also build up on the quartz sleeve which may require cleaning during lamp changes, however if the incoming water is hard enough a water softener is also recommended for pretreatment to reduce this buildup.

    Naturally sourced water should be professionally tested and treated before it is used for drinking, bathing, filling swimming and paddling pools, food preparation or cooking. A number of water treatment systems can be used to remove microbiological contaminants that may cause illness. Ultraviolet light disinfection is an effective, reliable, environmentally friendly and chemical free water treatment system that can be used to disinfect water from most forms of microbiological contamination.

    USWF-RCHO4.12   fits the following model number(s)

    • USWF-4C101
    • USWF-4C151
    • UWSF-4CR2
    • 4C101
    • 4C151
    • 4CR2
    • LBH4-Z1
    • LBH4-Z2
    • LBH4-Z12
    • LBH5-Z1
    • LBH5-Z5
    • LBH5-Z12
    • LBH4-101
    • LBH5-101
    • LBH5-101B
    • LBH6-101
    • LBH6-101A
    • LBH6-101B
    • LBH4-151
    • LBH5-151
    • LBH6-151
    • LBH6-151A
    • LBH5-151B
    • LBH6-151B
    • LBH1-151-50
