    Warranty Guarantee: One (1) Year Limited Warranty
    USWF

    USWF-350046

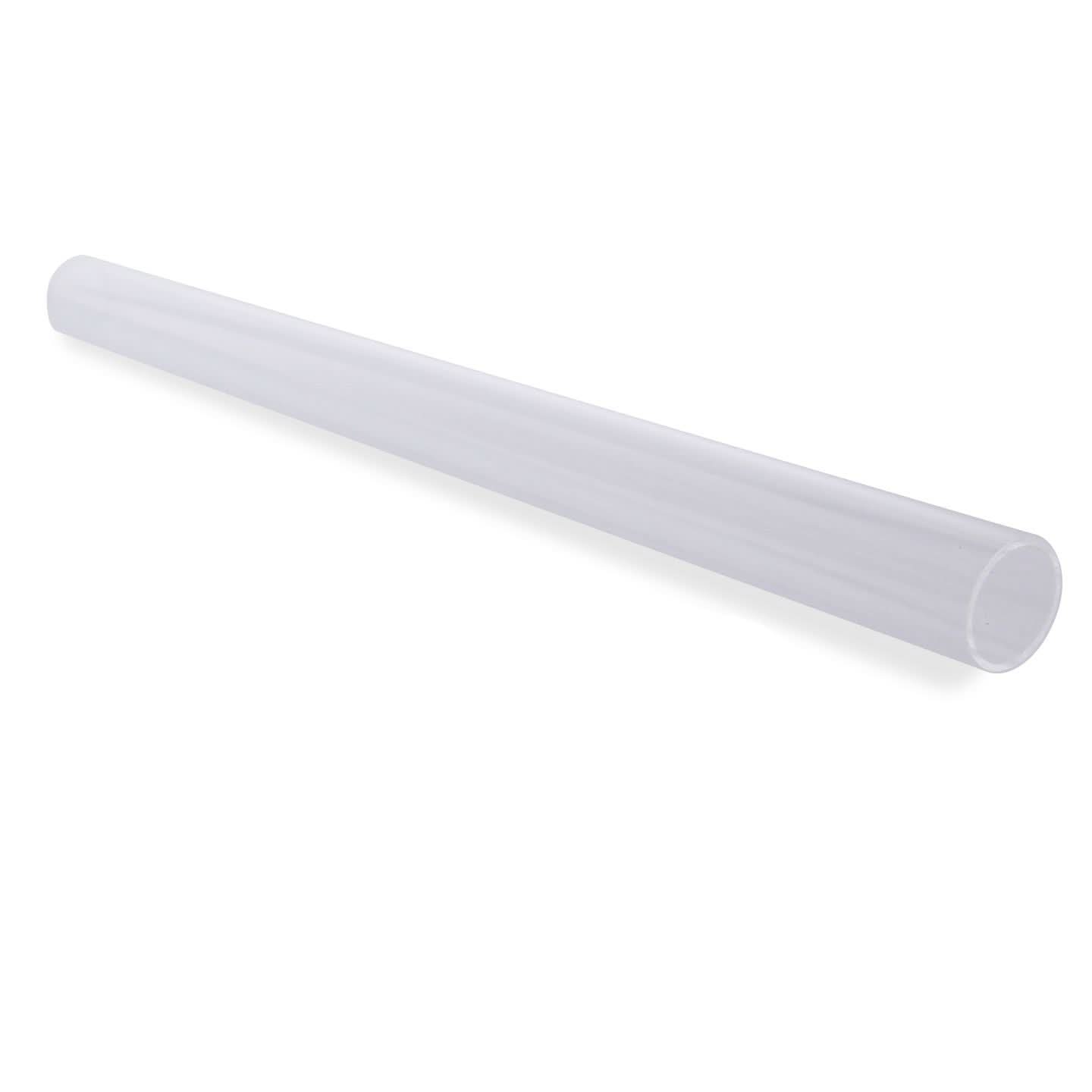

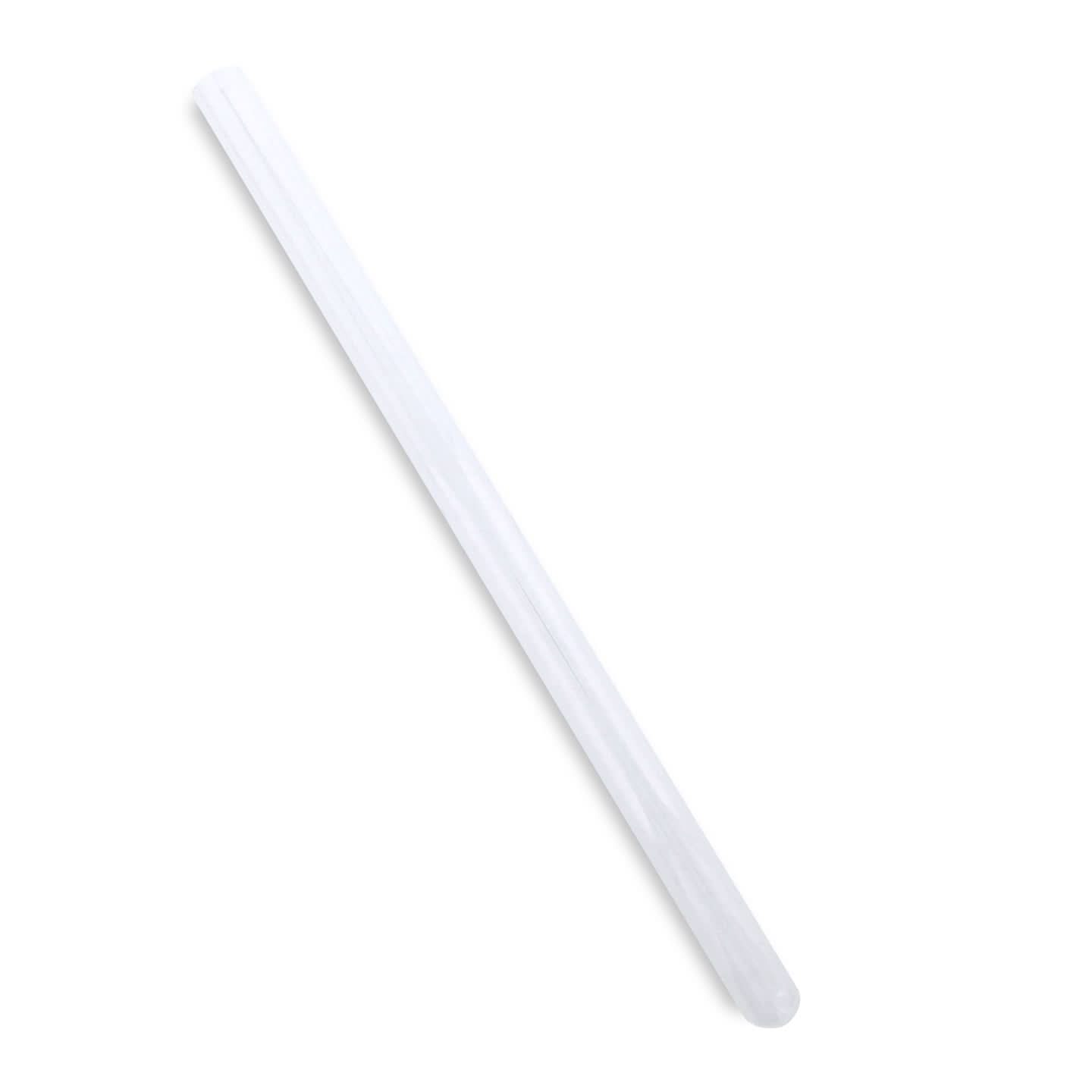

    USWF Replacement for 602734 Quartz Sleeve | Fits the VIQUA F/F+/F4/F4+/F4-V, Pro 15, & UVMax 47 Series UV Systems

    Low Stock (5)
    Price Per Item
    2 PACK $31.83
    3 PACK $30.85
    4 PACK $29.86
    6 PACK $28.88
    Choose a Pack Size for Your Volume Discount:

    • Affordably priced replacement for the VIQUA 602734 quartz sleeve.

    • Replacement Quartz sleeve for the UV lamp in the VIQUA F/F+/F4/F4+/F4-V, Pro 15, & UVMax 47 series of ultraviolet water treatment systems.

    • Quartz sleeves can be cleaned and reused, but if your quartz sleeve, cracks, breaks, or the becomes permanently cloudy and can not be cleaned it needs to be replaced

    • US Water Filter replacement quartz sleeves are manufactured in the USA to provide the highest level of performance and peace of mind.

    Features & Specs
    Package Qty: 1
    Manufacturer: USWF
    Manufacturer's Id: USWF-350046
    Actual Size (in): 39.09 in (Length) x 0.79 in (Outside Diameter) x 0.71 in (Inside Diameter)
    Warranty Guarantee: One (1) Year Limited Warranty
    Brand: USWF
    Country of Origin: United States
    Includes: UV Quartz Sleeve
    Warranty Info
    Warranty Guarantee: One (1) Year Limited Warranty

    The quartz sleeve is an important part of the UV water treatment system. It protects the UV lamp from coming in contact with the water while allowing the UV light to permeate the water. Minerals from the water will build up on the sleeve over time causing the sleeve to become cloudy not allowing the UV light to permeate the water as effectively. How quickly the minerals build up on the sleeve will vary depending on your water hardness, and if you have hardness of over 7 gpg you should install a water softener to treat the water before your UV system. Once the mineral layer on the quartz sleeve cannot be removed via cleaning, or the sleeve cracks or breaks it's time to get a replacement. The US Water Filters USWF-350046 is a replacement for VIQUA 602734 for use in the VIQUA F/F+/F4/F4+/F4-V, Pro 15, & UVMax 47 series of ultraviolet water treatment systems.


    USWF-350046   fits the following model number(s)

    • VT1
    • VT1-DWS
    • SQ-PA
    • SC-1
