Viqua Replacement Quartz Sleeve QS-330

.price-ui--loading { display: block !important; opacity: 1 !important; }

$52.00

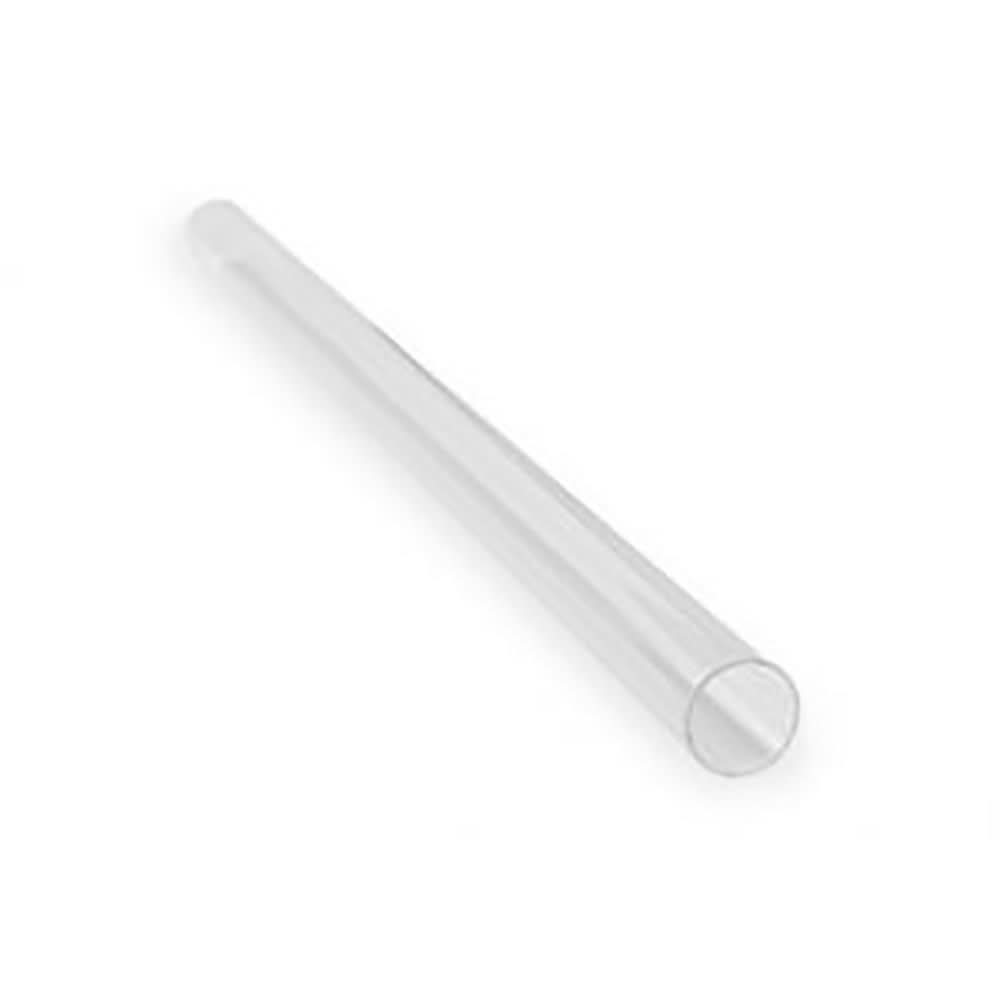

Genuine VIQUA Sterilight QS-330 Quartz Sleeve
Compatible with VIQUA Sterilight R-Can VT4, VTV/2, S2Q-PA, S2Q-PA/2, S2Q, S2Q/2, S2Q-GOLD, S2Q-GOLD/2, SSM-17, SSM-17/2 UV Systems
Viqua Sterilight Replaces the Brands R-Can and Sterilume
VIQUA UV system will disinfect against microbiological contaminants, providing you and your family with treated drinking water

format_list_bulleted Features & Specs

Package Qty: 1

UPC: 773058032056

Actual Size (in): 25.25 inches (Length) x 3.25 inches (Width)

Warranty Guarantee: One (1) Year Limited Warranty

Brand: Viqua

Length (in): 25.25 in

Width (in): 3.25 in

UPC's For Search: 773058032056

Includes: UV Quartz Sleeve, O-rings sold separately

description Instructions

Close the main water supply to the UV System, and then open a tap downstream of the UV System to release pressure.
Disconnect the main power source and allow the unit to cool for 10 minutes.
Remove the top retaining nut and O-ring.
Remove the bottom retaining nut, spring, and loosen the Oring to drain the water. NOTE: Ensure that the quartz sleeve does not slide through.
Remove the quartz sleeve from the UV chamber.
Clean the quartz sleeve with a cloth soaked in CLR, vinegar, or some other mild acid, and then rinse with water.
Re-insert the quartz sleeve with O-ring(s), spring, and retaining nut(s).
Hand tighten the retaining nut(s), taking care not to over-tighten.

filter_alt Filter Life

Filter Life (months): 12 months

verified_user Warranty Info

Warranty Guarantee: One (1) Year Limited Warranty

help Product Details

The QS-330 Sterilight UV quartz sleeve is used with the S2Q-PA system and comes with 2 o-rings. Minerals in your water will coat the quartz sleeve over time with use, this coating must we cleaned off to prevent a reduction in filtration performance. When the quartz sleeve can not be cleaned then it must be replaced.

Specs End type: Open Ended ID: 0.79" or 20mm ± .2mm OD: 0.91" or 23mm ± .2mm Length: 14.76" or 375mm ± 3.5mm
