    Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Tier1

    TIER1-P5-20

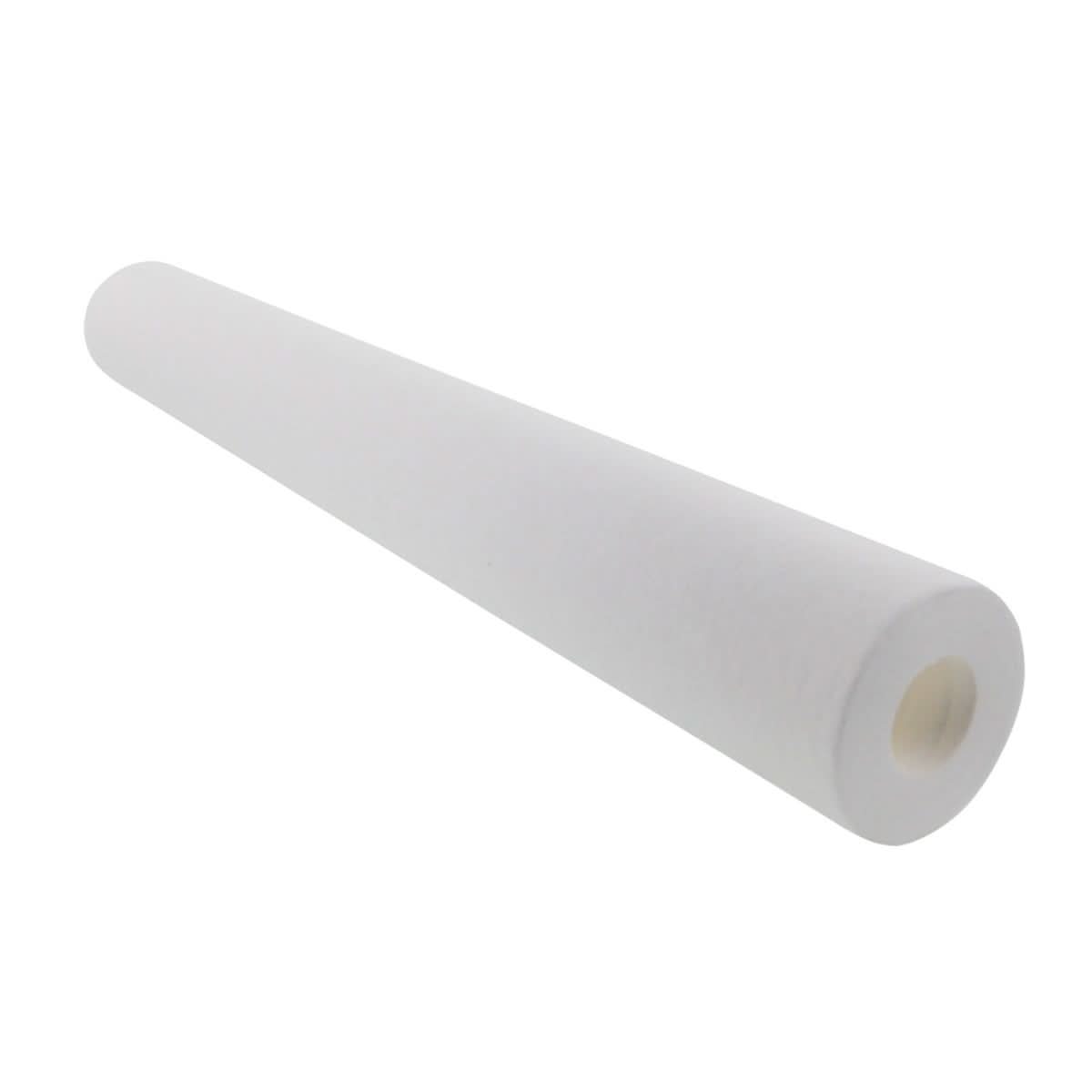

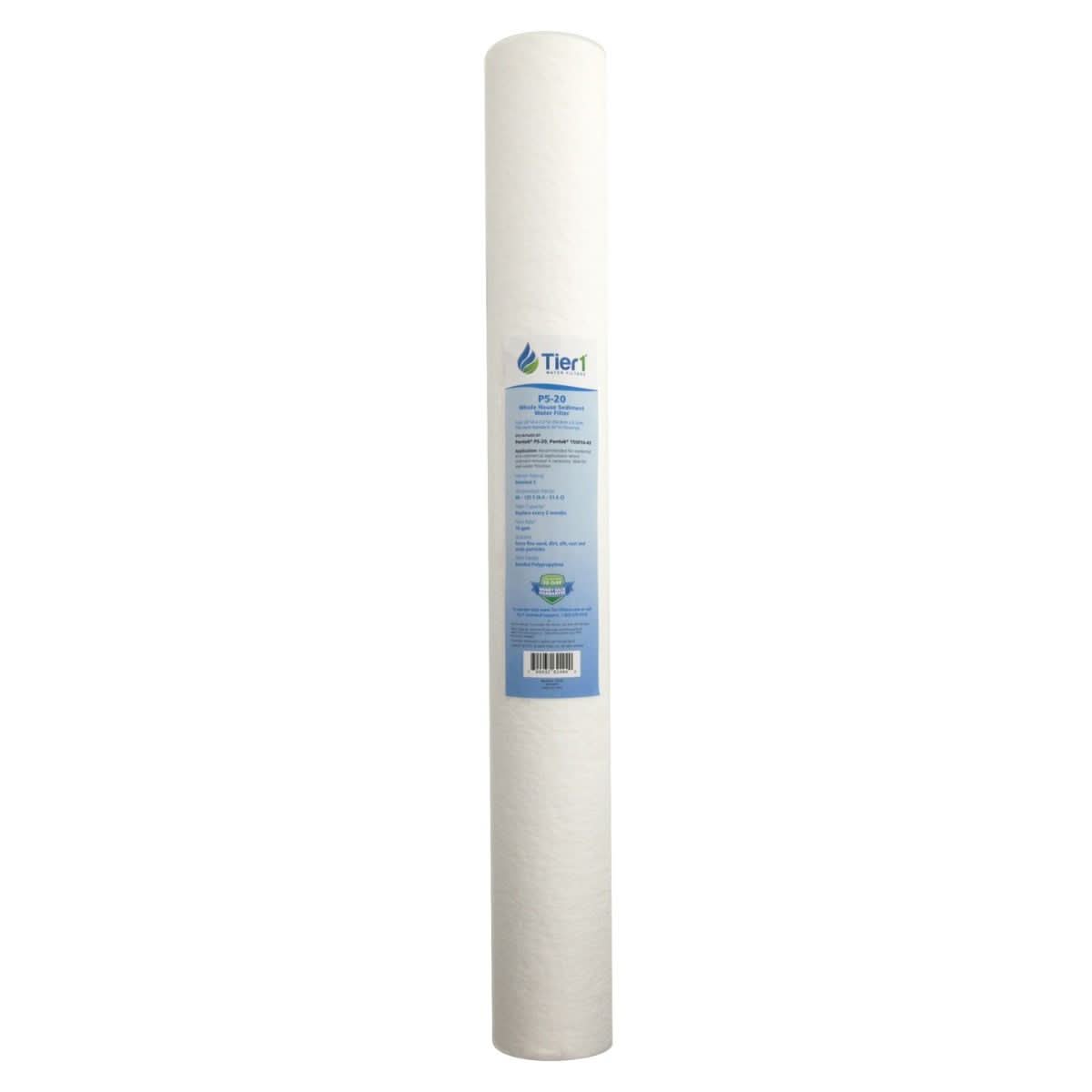

    20 X 2.5 Polypropylene Replacement Filter by Tier1 (5 micron)

    Low Stock (5)
    $11.82 - $249.64
    Fits most stand housings built for 20-inch x 2.5 inch filter cartridges
    Price Per Item

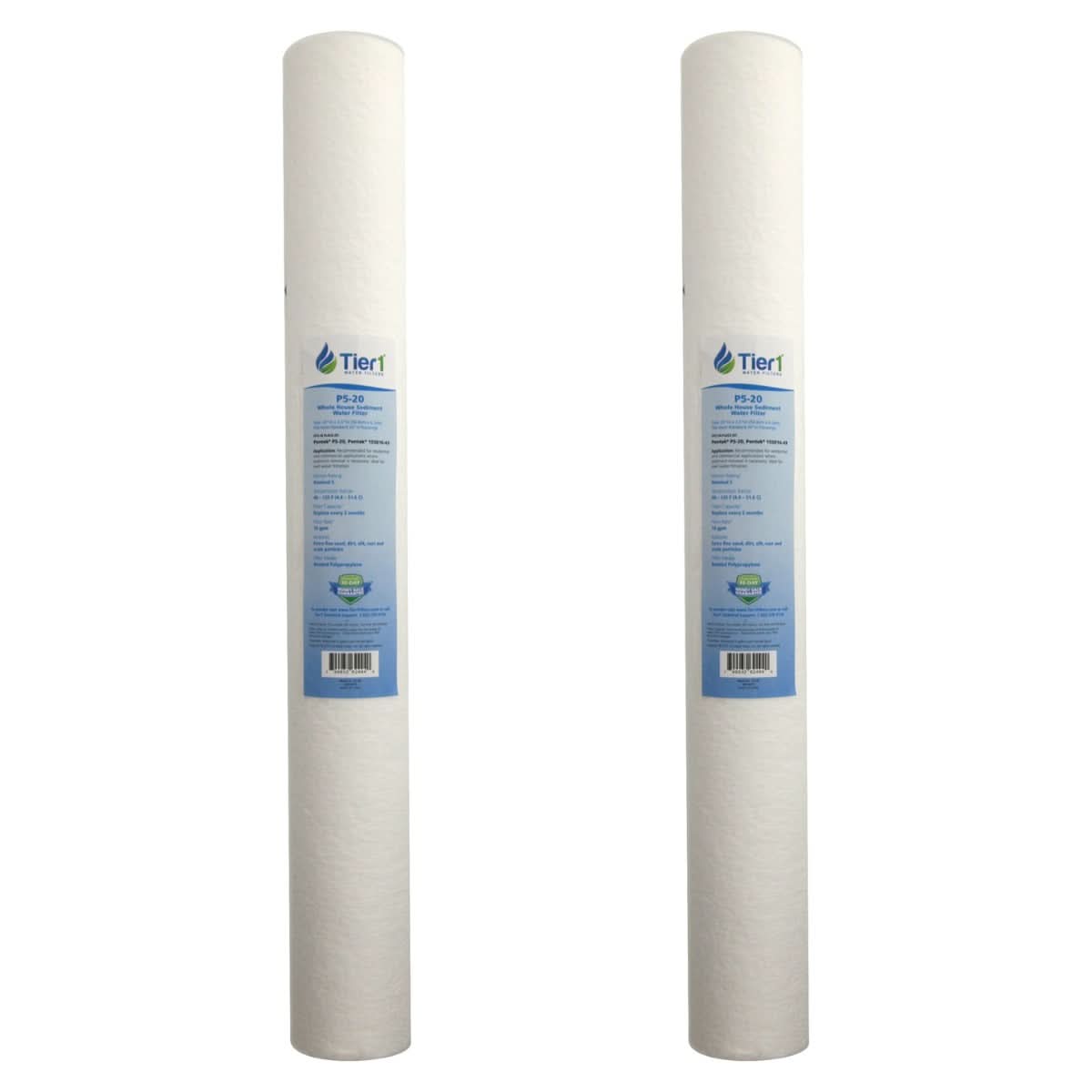

    2 PACK $11.46

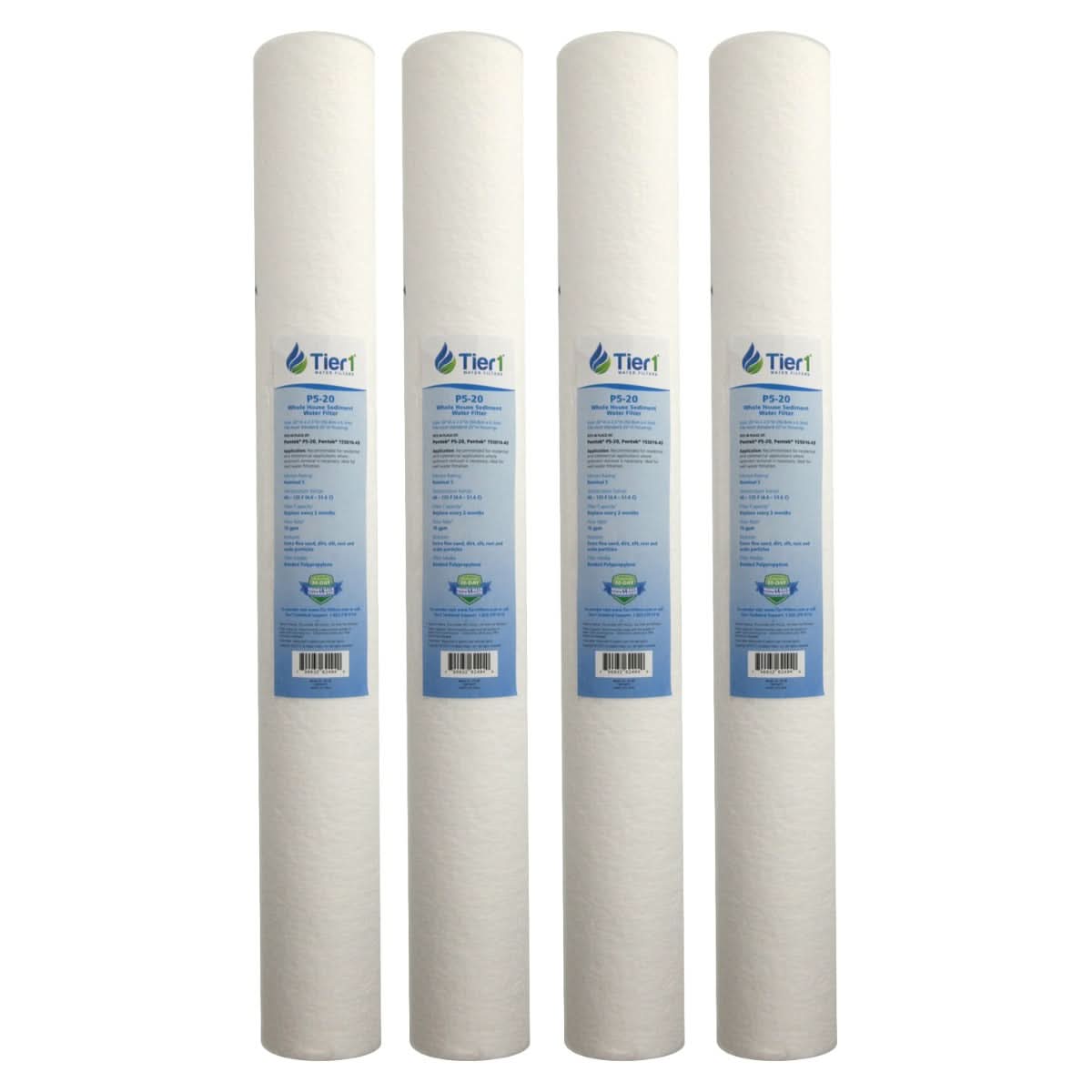

    4 PACK $11.11

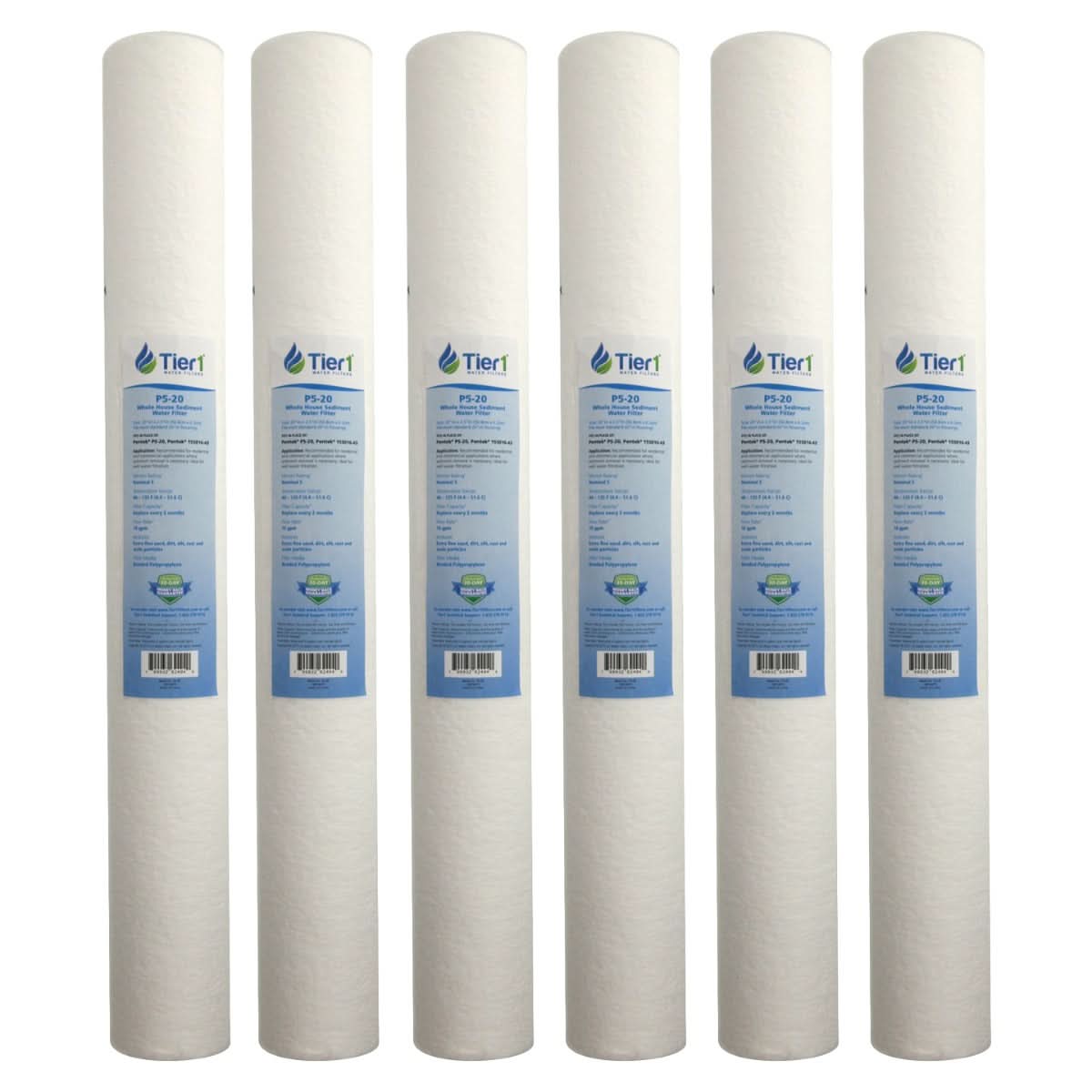

    6 PACK $10.75

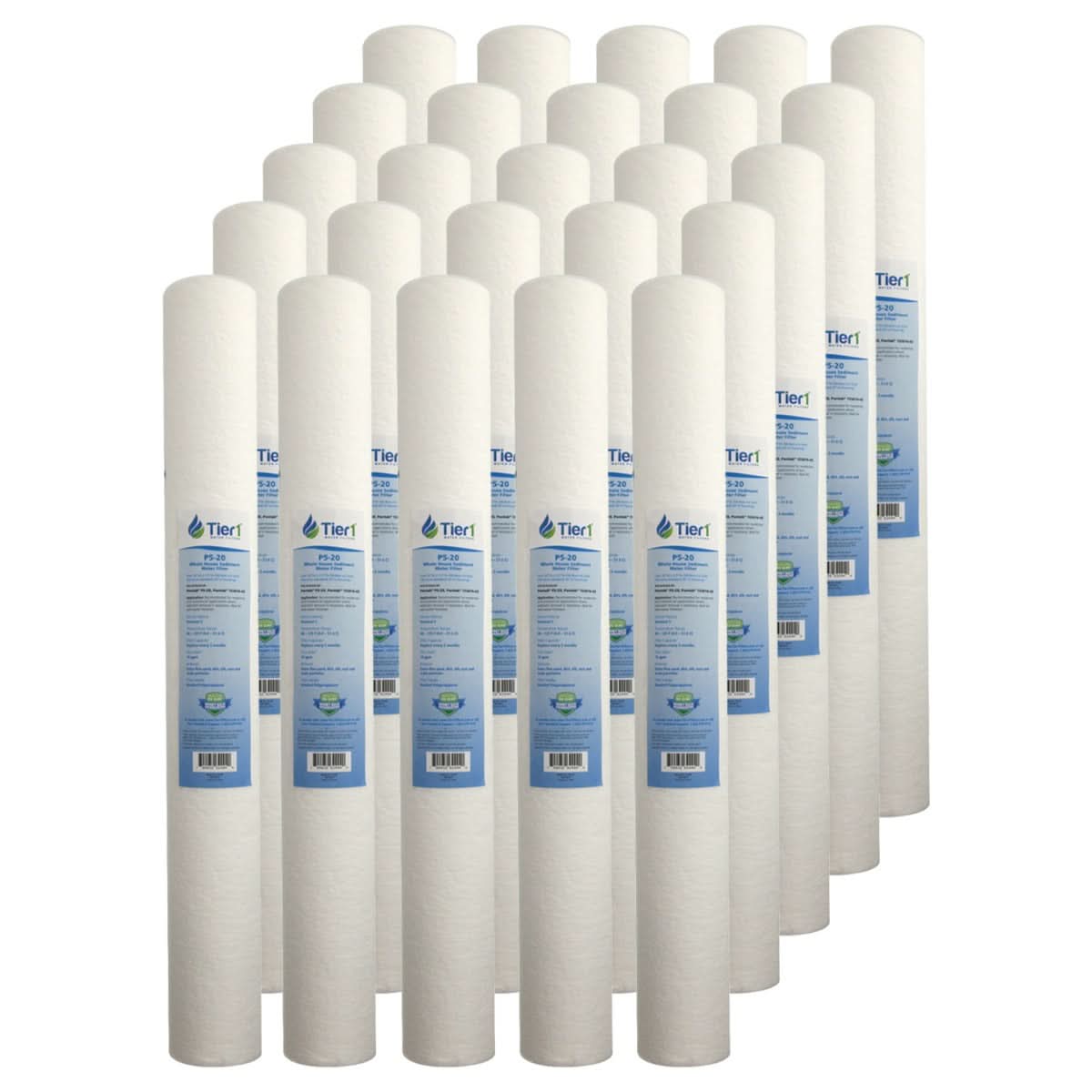

    24 PACK $10.40
    Choose a Pack Size for Your Volume Discount:

    • Ships fast!

    • Quick and easy installation and replacement

    • Provides great tasting, cleaner and fresher water

    • Goes to work reducing contaminants for up to six months

    Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: P5-20
    UPC: 799932624940
    Actual Size (in): 20 inches (length) x 2 3/8 inches (outside diameter)

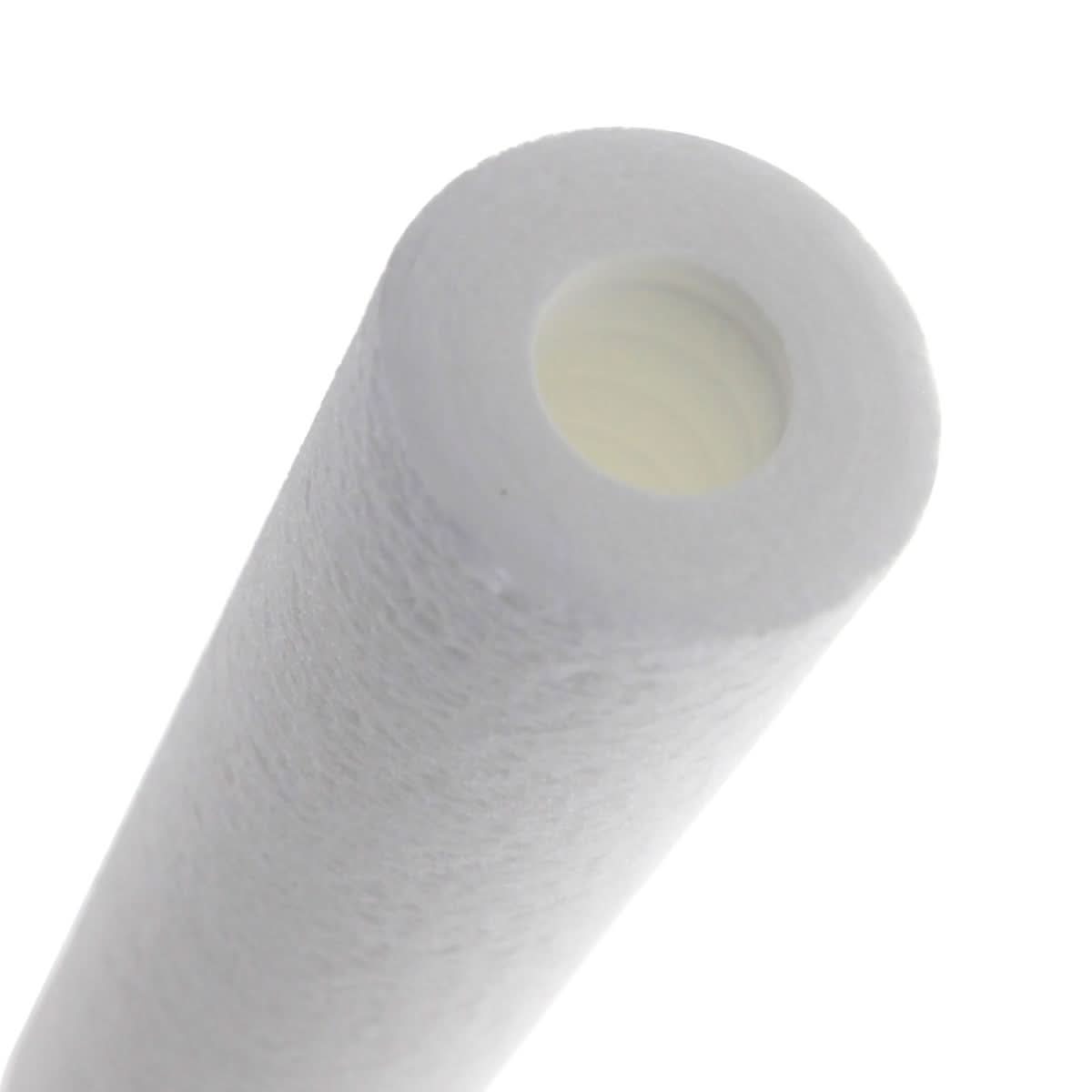

    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 2-1/2
    Depth (in): 2.38 in
    Length (in): 20 in
    Outside Diameter (in): 2.38 in
    Width (in): 2.38 in
    Media Type: Sediment Filter
    UPC's For Search: 799932624940 | 10051678016432 | 051678016435
    Country of Origin: United States
    Micron Rating Nominal: 5
    Flow Rate (gpm): 10.0
    Includes: One 20 X 2.5 Inch Polypropylene Replacement Filter by Tier1
    Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    7. Insert new filter cartridge
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    Contaminants Reduced
  • Dirt
  • Rust and Corrosion
  • Sand
  • Sediment
  • Silt
    • Filter Life
    Filter Life (months): 6 months
    Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

    TIER1-P5-20 Filter Advantages

    The Pentek P5-20 comparable whole house sediment water filter by Tier1 is a 5 micron polypropylene filter that goes to work immediately reducing the contaminants that plague your drinking water. Contaminants reduced by this filter include dirt, particles, sand, sediment, and silt. The P5-20 by Tier fits most standard 20-inch x 2.5-inch housings, making it an ideal solution for numerous settings. With simple installation and replacement steps you can replace your existing cartridge as needed when ever you need. Order today!

    Polypropylene Filter Cartridge

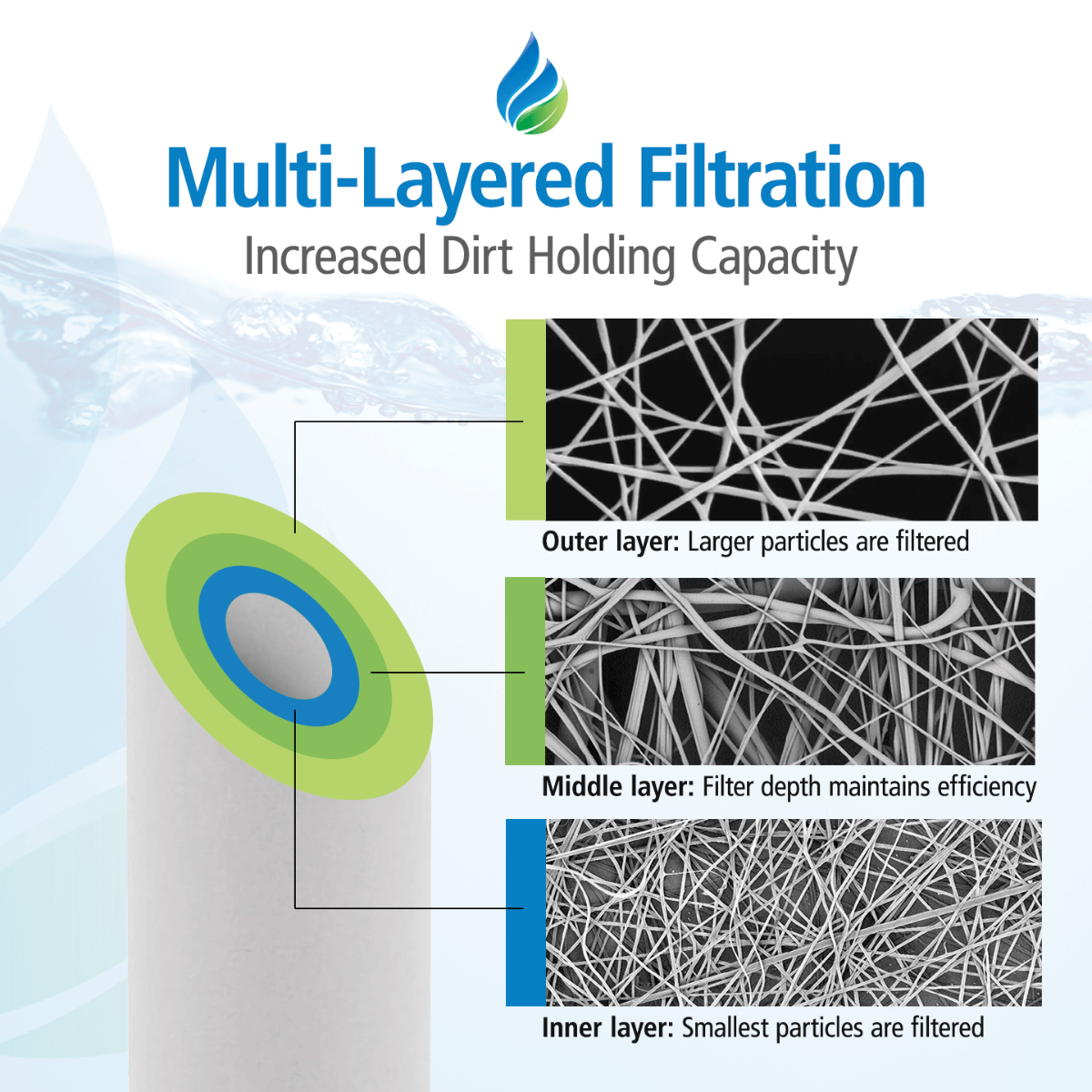

    Polypropylene media inhibits bacterial growth making it an ideal option for both municipal and well water applications. These filters are effective at capturing contaminants such as sand, sediment, silt, and more. Unlike carbon filter cartridges you wont have to worry about small carbon fines potentially spilling into your water, while still enjoying the benefits of filtered water throughout your home. Polypropylene filters are great for whole house water filtration and can be used as effective pre-filters for whole house or point of use systems.

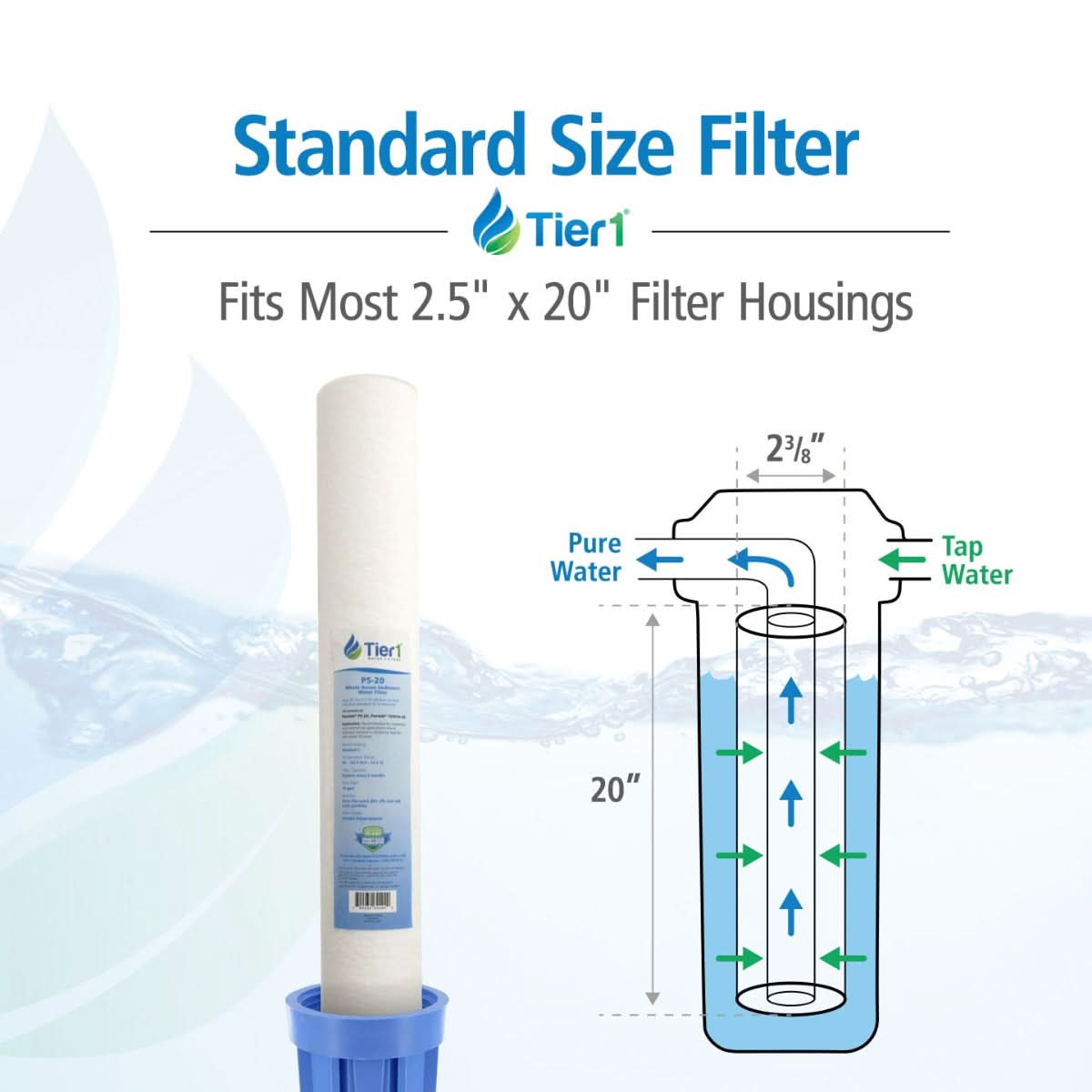

    Standardized Filter Sizing

    The 20 X 2.5 spun wound polypropylene replacement filter by Tier1 is built to fit 20-inch x 2.5-inch filter housings. This standard sizing allows this filter to easily replace existing styles of whole house filters for housings requiring 20 x 2.5 inch filters. The P5-20 goes to work immediately providing cleaner, fresher water for up to two months. Enjoy cleaner better water with your whole house replacement filter today.


    TIER1-P5-20   is comparable with the following part number(s)

    • 1193047
    • 1194282
    • 1227868-V
    • 15-052-03
    • 155796-43
    • 200144
    • 252-050
    • 255695
    • 255695-43
    • 33003033
    • 4621-43
    • 55410-27
    • 93047
    • 9320-1143
    • 94282
    • AP110-2C
    • CFS110-C20
    • COR205
    • COR220
    • ED-S-2
    • FPMB-520
    • FPMB5-20
    • FPMB520
    • GX05-20
    • PD-5-20
    • PFS205
    • PS5-20C
    • PX05-20
    • SD-25-2005
    • SDF-25-2005
    • SW5-2
    • SWS-20
    • VX05-20
    • PENTEK-P5-20
    • P5-20
    • 155016-43

    TIER1-P5-20   fits the following model number(s)

    • HFPP-1-PR20
    • W20FFPH1CBPR
    • BBFS-22
