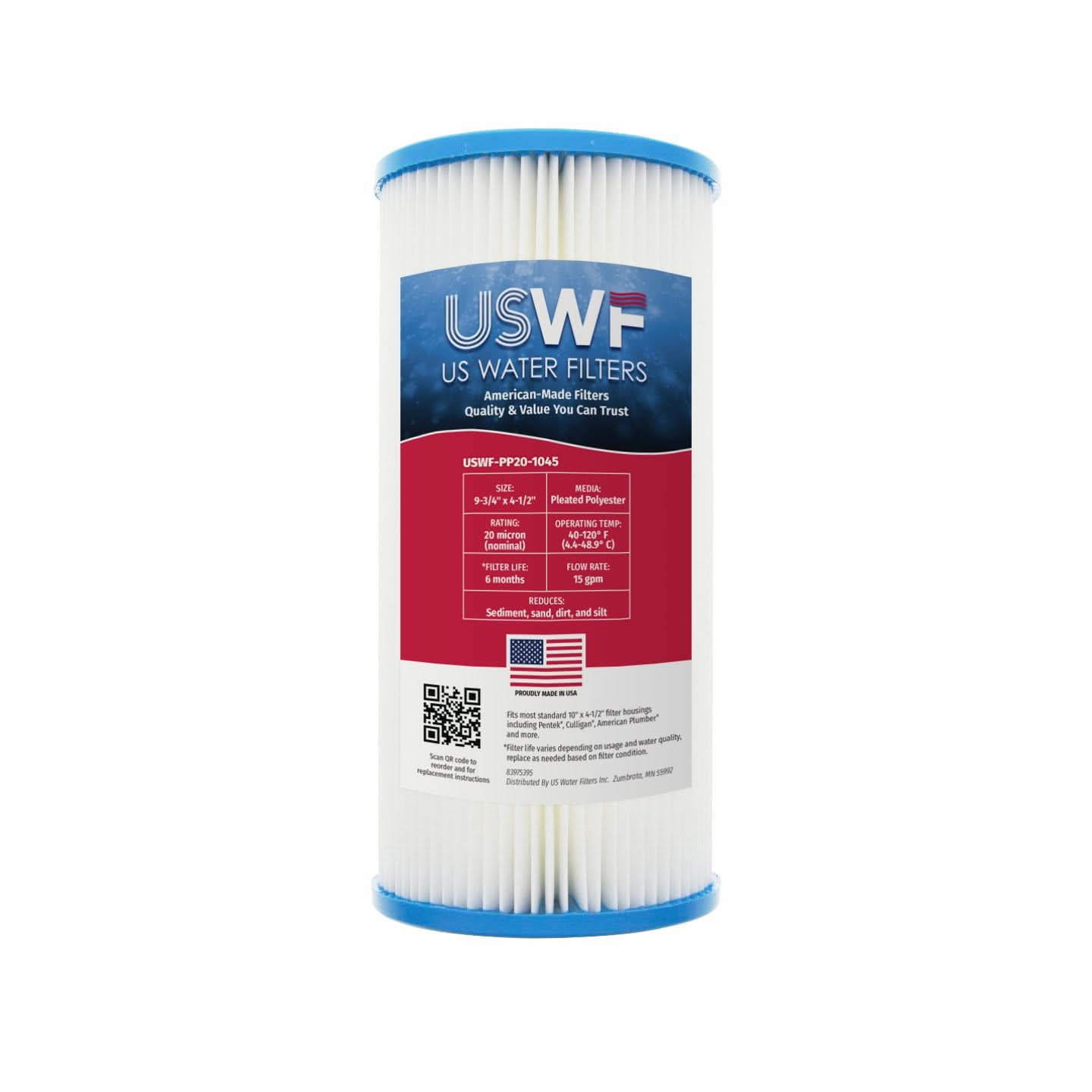

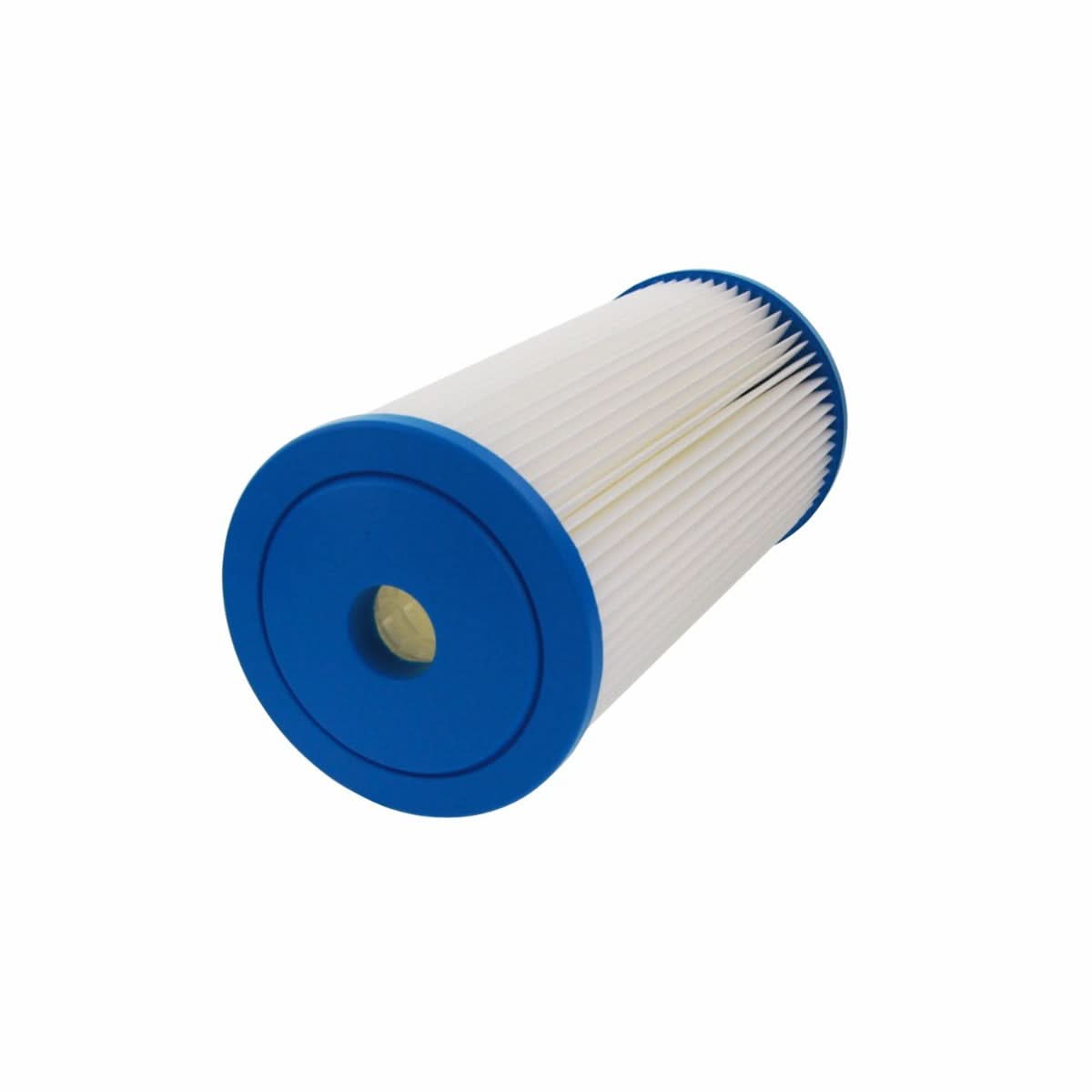

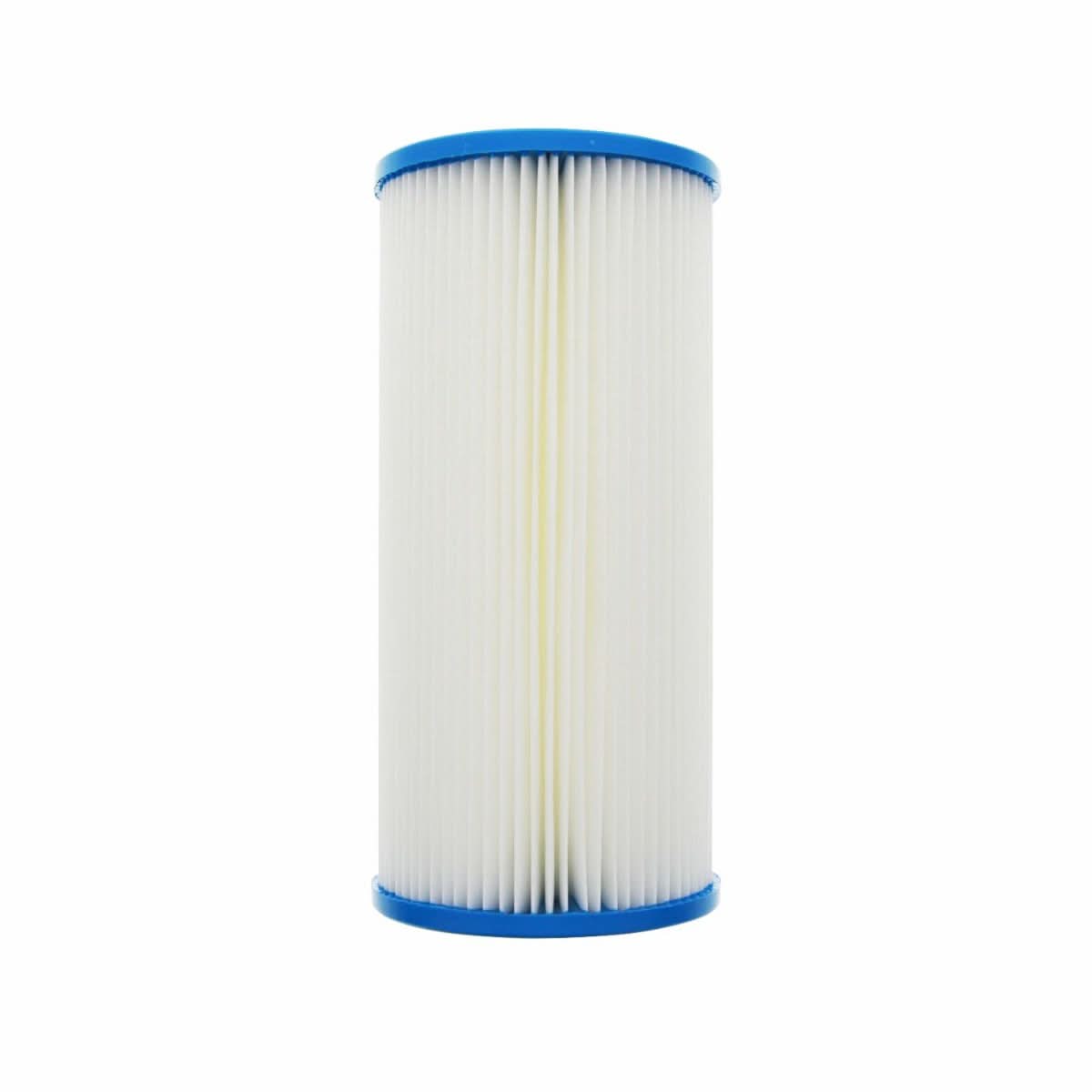

    USWF-PP20-1045

    20 Micron Pleated Polyester Sediment Filter by USWF 10"x4.5"

    • Proudly manufactured in America supporting American workers and ensuring a high quality product.

    • Pleated filter's high surface area provides the best flow rate and lowest initial pressure drop of any sediment filter type.

    • Constructed with FDA Title 21 compliant polyester fabric for use on untreated water supplies.

    • Fits most standard 10" x 4 1/2" filter housings including Pentek, Culligan, American Plumber and more.

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer's Id: PP20-1045
    Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 120
    Brand: USWF
    Advertised Size: 10 x 4-1/2
    Length (in): 9.75 in
    Outside Diameter (in): 4.5 in
    Maximum Temperature (f): 120
    Media Type: Sediment Filter
    Country of Origin: United States
    Micron Rating Nominal: 20
    Flow Rate (gpm): 15.0
    description Instructions
    1. Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
    2. Unscrew filter housing sump. (Use filter wrench if nessecary.)
    3. Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
    4. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    5. If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    6. Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
    7. Insert new filter cartridge ensuring that it is seated properly in the sump housing.
    8. Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
    9. Turn on the water supply and check for leaks before leaving the installation.
    10. Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Sand Coarse
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (months): 6 months

    USWF-PP20-1045 is a 20 micron 10"x4.5" pleated polyester sediment replacement filter that is proudly manufactured in the USA. It is made from FDA Title 21 compliant polyester fabric pleated around a polypropylene core to provide a high quality filter independently tested to NSF / ANSI standards 42, 61, and 372.
    Pleated filters offer the lowest pressure drop and highest flow rate of all sediment filter types by providing as much filtration surface as possible to maximize water flow. However because pleated filters offer no filtration gradient or depth they are best suited to filter sediment of uniform particle size.
    USWF only carries pleated polyester filters. The synthetic filter media is bacteria resistant so that it can be used on both treated and untreated water supplies. The pleated polyester is also highly durable meaning that you may rinse and clean the filter once it becomes clogs to extend the filter life.
    This American made filter is a compatible replacement for other popular pleated sediment filters like the Watts FM-BB-10-20, Pentek S1-BB, Hydronix SPC-45-1020, and more.

    USWF-PP20-1045   is comparable with the following part number(s)

    • SPC-45-1010
    • Pentek S1-BB
    • 155405-43
    • ECP20-BB
    • 255491-43
