    USWF Water Treatment

    USWF-H4-PL

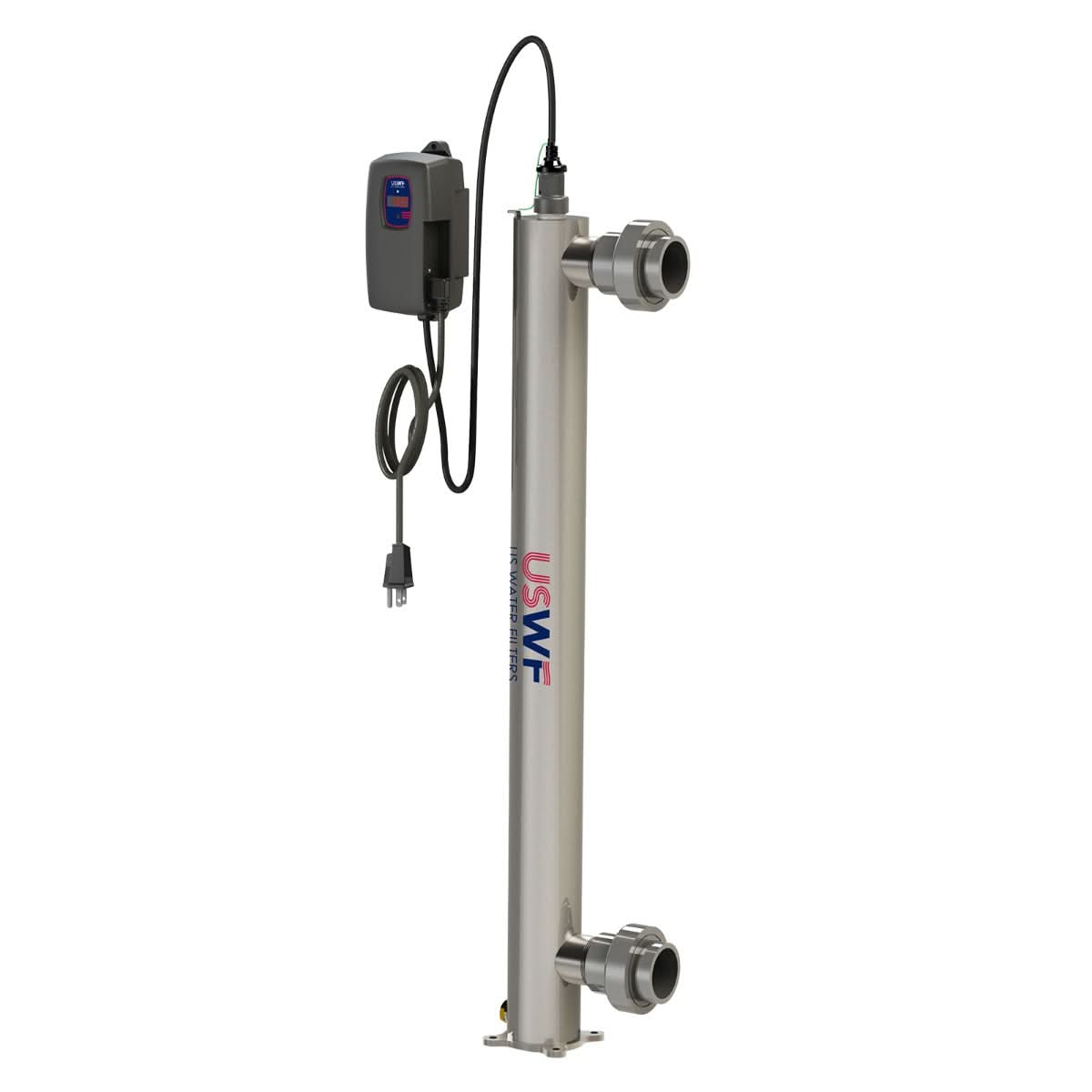

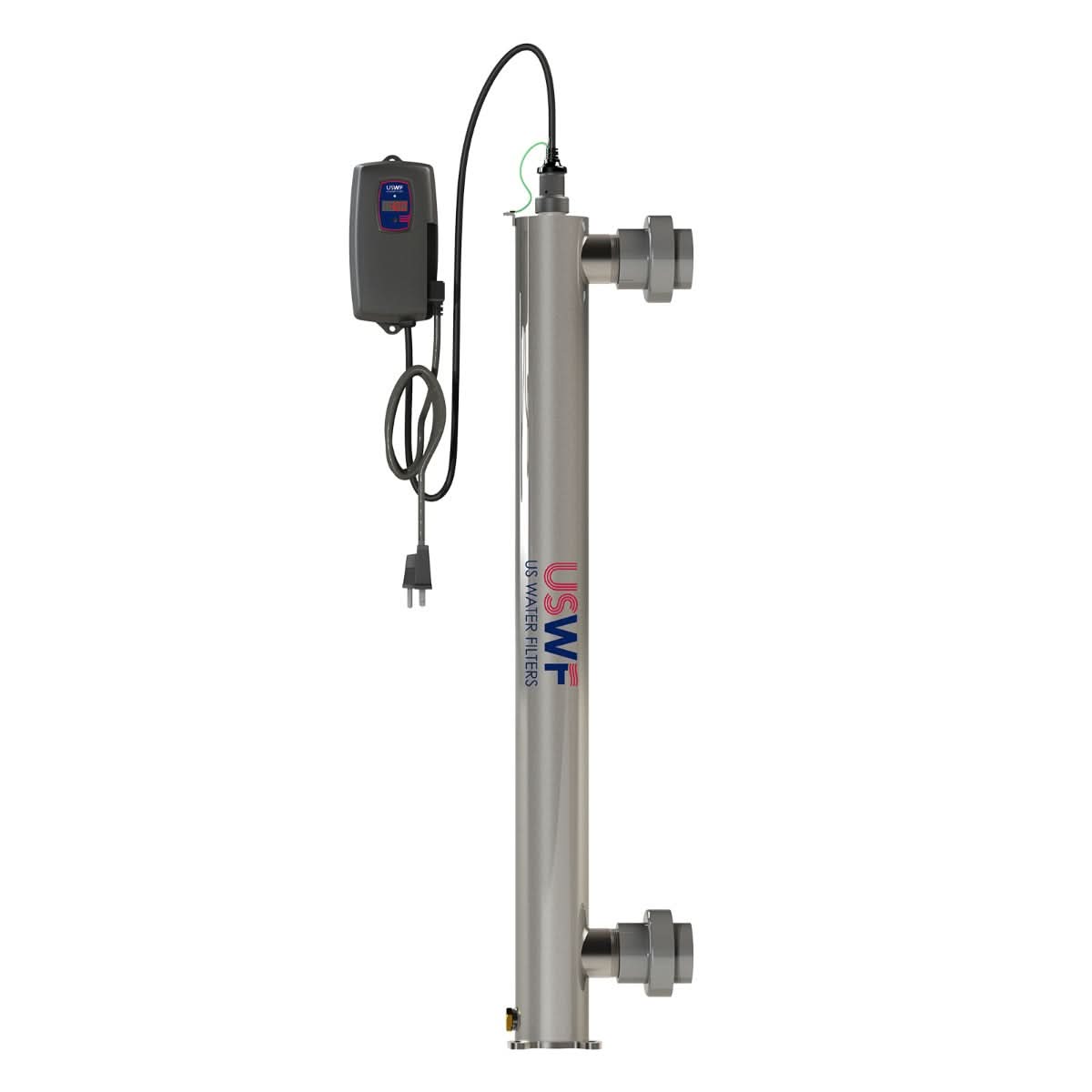

    82 GPM Pool Ultraviolet LightSterilization System H4-PL by USWF

    UV sterilization technology is an environmentally friendly way to keep your water cleaner and healthier while dramatically reducing chemical usage.
    • UV light destroys bacteria, viruses & algae without creating disinfection byproducts or affecting pH levels, saving money by reducing the amount of chlorine, shock, and pH balancing chemicals you need to maintain pool chemistry.

    • Works with any pool with up to 82GPM flow, designed for easy indoor / outdoor installation with an easy to access drain port for winterization and splash cover to protect the electronics.

    • Minimal maintenance, the UV lamp will run continuously for 10,000 hours with a single bulb so you can spend less time maintaining your pool and more time enjoying it.

    • Durable 316 grade stainless steel UV chamber with a built in zinc anode rod prevents corrosion, for realiable long lasting protection, the system comes backed by a 3 year warranty.

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer's Id: USWF-H4-PL
    Actual Size (in): 8 13/16 inches (length) x 3 1/2 inches ( width) x 41 5/16 inches (height)
    Media: Ultraviolet Light
    Operating Pressure (psi): 10 - 150
    Operating Temperature (°F): 36 - 104
    Warranty Guarantee: UV CHAMBER - Three (3) year Limited Warranty | CONTROLLER - Three (3) year Limited Warranty | UV LAMPS/QUARTZ SLEEVES - One (1) year Limited Warranty
    Brand: USWF Water Treatment
    Fitting Size (in): 2 in
    Height (in): 41.3 in
    Length (in): 8.8 in
    Width (in): 3.5 in
    Materials of Construction: 316 L Stainless Steel
    Power Requirements: 101 Watts
    Flow Rate (gpm): 82.0

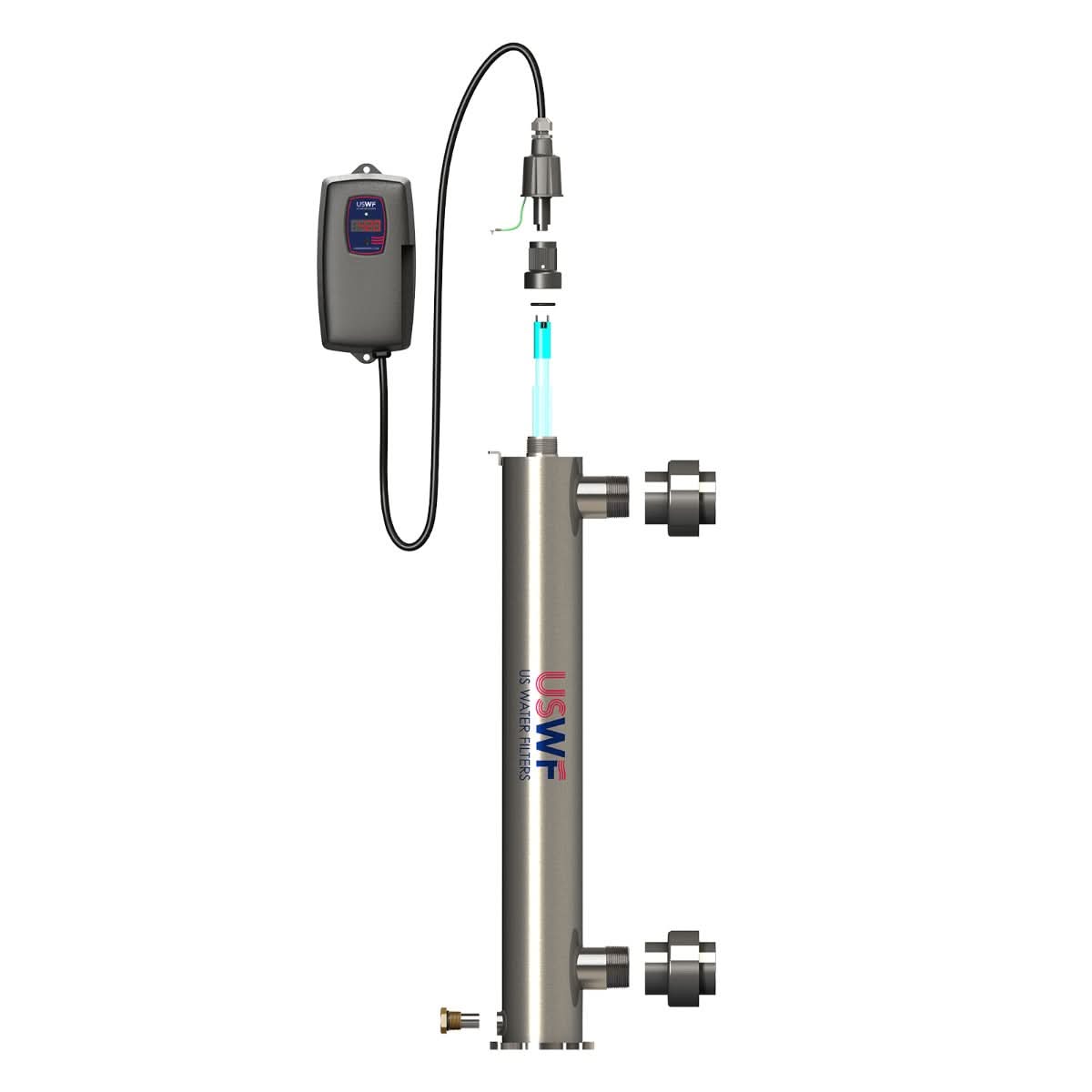

    Includes: UV chamber Controller, lamp, Quartz Sleeve, Anode Rod, Inlet/Outlet Unions, Selant, and Splash cover
    filter_alt Filter Life
    Filter Life (months): 13 months
    verified_user Warranty Info
    Warranty Guarantee: UV CHAMBER - Three (3) year Limited Warranty | CONTROLLER - Three (3) year Limited Warranty | UV LAMPS/QUARTZ SLEEVES - One (1) year Limited Warranty

    UV sterilization is growing in popularity for residential pools because they are incredibly simple to operate, environmentally friendly, produce safer, clearer water than chlorine alone, and dramatically reduce the amount of chemicals needed to keep the pool clean. The 82 GPM USWF-H4-PL is ideal for small to medium indoor / outdoor, and above / inground pools.* Built with durable 316 grade stainless steel, and a sacrificial zinc anode rod this system is built to last. Requiring minimal maintenance USWF Pool UV systems make it easy to keep your pool clean and clear all summer!
    *See sizing guide for determining the right UV system for your pool.

    Eliminate Chlorine Pool Smell


    UV light sterilizes water without creating any disinfection byproducts like chloramine or combined chlorine which is the primary culprit responsible for the chlorine pool smell. By reducing the amount of chlorine spent to sanitize the pool water USWF pool UV systems dramatically reduce the buildup of combined chlorine allowing you to enjoy your pool without the unpleastent chlorine smell.

    Reduced Chemical Usage

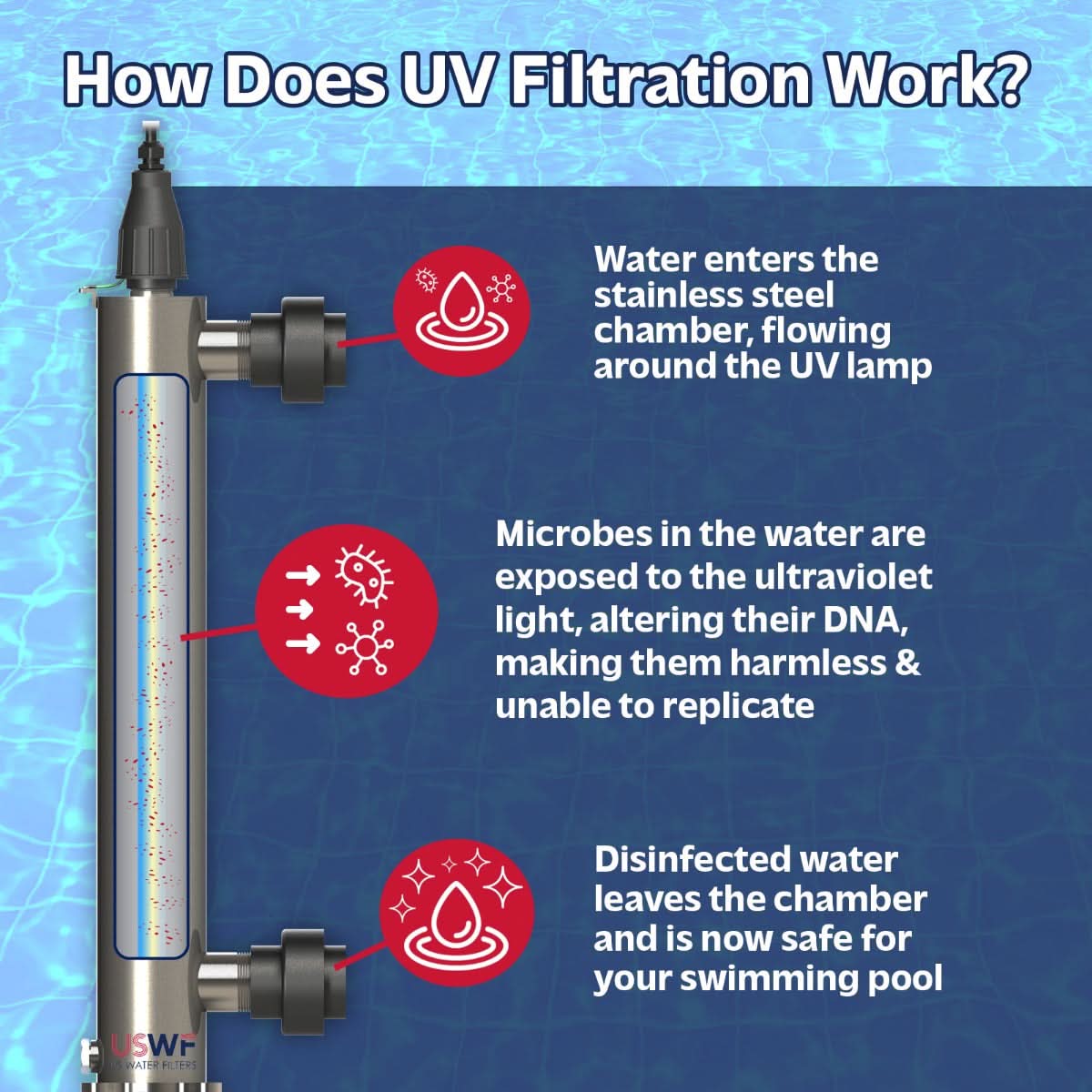

    As water circulates through the UV chamber the UV light deactivates microorganisms and algae sterilizing the water so the amount of chlorine required for residual sanitization can be greatly reduced down to levels similar to those used in municipal drinking water a 50%-90% reduction depending on the pool.


    UV sterilization also reduces the frequency of requiring pool shock. "Shocking a pool" is a process of hyperchlorination that is required to breakdown the buildup of combined chlorine or "chloramines". Chloramines form when chlorine mixes with organic materials in the pool like skin, sweat and oils, and is a natural byproduct of chlorine disinfection. Because UV sterilization supplements the disinfection process without adding any disinfection byproducts chloramines build up in the pool much more slowely reducing the frequency that pool shock is required.


    Another side effect of reducing the amount of sanitizing chemicals is that less balancing chemicals will be needed to maintain stable pool pH and alkalinity.

    Durable Performance


    USWF Pool UV systems are built to last and backed by a 3 year warranty. The UV chamber is constructed with 316 grade stainless steel commonly found in marine applications which means it can even be used in pools with saltwater chlorine generators. 316 grade stainless steel provides superior corrosion resistance to chlorides compared to 304 grade stainless, and will outlast PVC housings since UV light degrades PVC reducing its strength over time. In addition to being constructed from corrosion resistant stainless steel USWF Pool UV systems also include a replaceable sacrificial zinc anode rod which not only protects the UV chamber from corrosion, but also helps protect the rest of your pool equipment from corrosion too.
