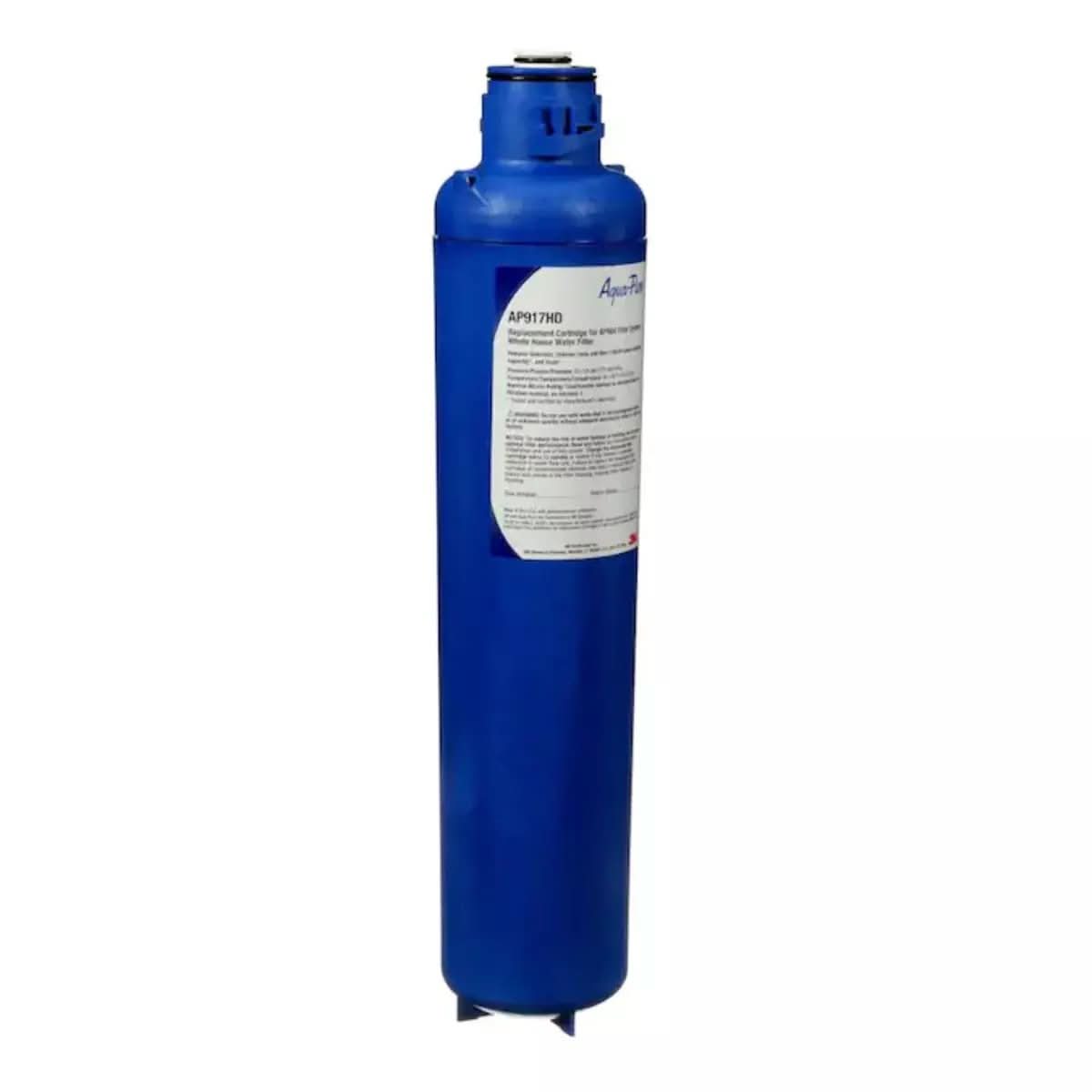

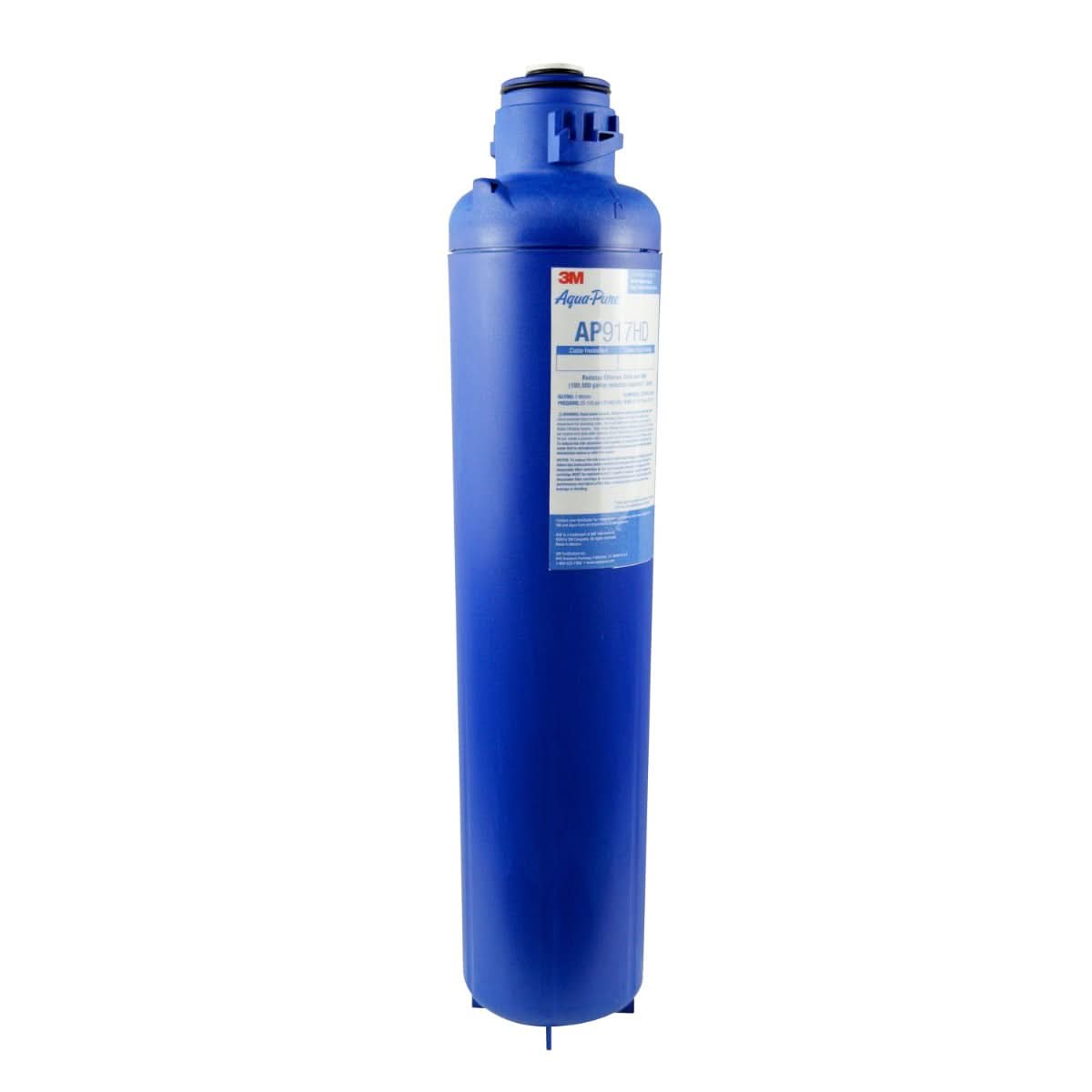

    AP917HD Whole House Water Filter Replacement by 3M Aqua-Pure

    • Activated Carbon Block with Non-Woven Pleat Media

    • FDA approved 5-micron filter construction

    • Replace every 12 months or 100,000 gallons for best results

    • Designed to fit AP903 3M Aqua-Pure whole house filtration system

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Aqua-Pure
    Manufacturer's Id: 5621006
    UPC: 016145252303
    Actual Size (in): 25-1/16 (Length) x 4-1/2 inch (Width)
    Media: Activated Carbon Block with Non-Woven Pleat Media
    Primary Filter Media: Activated Carbon Block
    Operating Pressure (psi): 25 - 125
    Operating Temperature (°F): 40 - 100
    Operating Temperature (°C): 4.4 - 37.8
    Warranty Guarantee: 1-year limited warranty
    Brand: Aqua-Pure
    Length (in): 25.06 in
    Width (in): 4.5 in
    Media Type: Carbon Filter
    Micron Rating Nominal: 5
    Flow Rate (gpm): 20.0
    description Instructions
    1. Before changing cartridge, turn off water supply. Place a bucket under filter to catch the small amount of water that will run out after housing removal.
    2. Close shut-off valve upstream of filter system, leaving downstream shut-off valve open.
    3. Open a faucet downstream of the filtration system to depressurize system.
    4. Slide cartridge locking latch to the right and lift up.
    5. With both hands, twist out filter cartridge by turning unit 90° to the left and down.
    6. Install new replacement cartridge into head by pushing cartridge up and turning to the right until locking latch clicks into place.
    7. Slowly open upstream shut-off valve until filtration system fills with water.
    8. Slowly open downstream shut-off valve. Flush at least ten (10) gallons through system before use.
    file_download Downloads
    warning_amber Contaminants Reduced
  • Chlorine
  • Particulates
  • Rust And Corrosion
  • filter_alt Filter Life
    Filter Life (gallons): 100000
    Filter Life (months): 12 months
    verified_user Warranty Info
    Warranty Guarantee: 1-year limited warranty

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Whole house filtration that begs reduction of sediment, chlorine taste and odor calls for the AP917HD water filter replacement by 3M Aqua-Pure. Created with the user in mind, this filter is manufactured from FDA adherent materials along with Sanity Quick Change (SQC) for simple replacement. Activated Carbon Block with Non-Woven Pleat filter media tackles contaminants as small as 5 micron and still has durability enough to require change only once annually to ensure effectiveness. Order today!

    AQUA-PURE-AP917HD   is comparable with the following part number(s)

    • 10U923
    • 40161502
    • AP917HD
    • AP917-HD
    • AP917HD-S
    • AP917-HD-S

    AQUA-PURE-AP917HD   fits the following model number(s)

    • AP903
    • AQUA-PURE-AP903
    • AQUAPURE-AP903
    • AP902
    • AQUA-PURE-AP902
    • AQUAPURE-AP902
