    Warranty Guarantee: 1 Year Manufacturer Limited Warranty
    Aqua-Pure

    AQUAPURE-AP810-2

    3M Aqua-Pure AP810-2 Whole House Filter

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: 3M Purification, Inc
    Manufacturer's Id: AP810-2
    UPC: 016145157028
    Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
    Media: Spun Wound Grooved Polypropylene
    Primary Filter Media: Polypropylene
    Operating Pressure (psi): 0 - 690
    Operating Temperature (°F): 40 - 100
    Operating Temperature (°C): 4.4 - 37.8
    Warranty Guarantee: 1 Year Manufacturer Limited Warranty
    Brand: Aqua-Pure
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 016145810206 | 10016145157025 | 161450969146 | 161451570280 | 016145157028
    Country of Origin: Mexico
    Micron Rating Nominal: 5
    Flow Rate (gpm): 45.0
    description Instructions
    1. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system
    2. Turn off incoming water
    3. Bleed pressure from the unit by depressing the red button on top of unit
    4. Remove housing by sliding wrench up toward head then turn left to unscrew
    5. Wipe housing clean and insert new cartridge
    6. Lubricate o-ring and screw housing into head
    7. Turn water back on
    file_download Downloads
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particulates
  • Rust And Corrosion
  • Sediment
  • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: 1 Year Manufacturer Limited Warranty

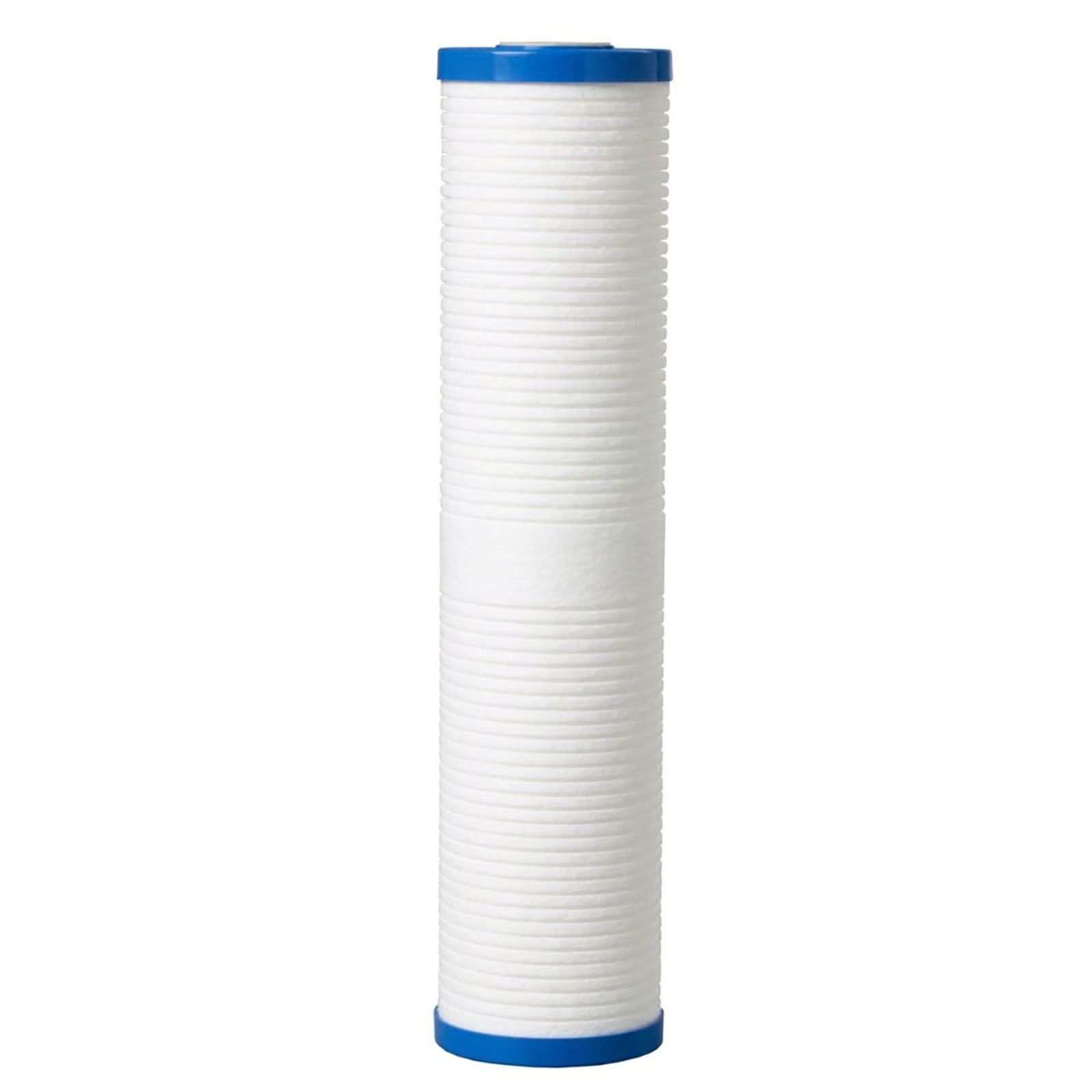

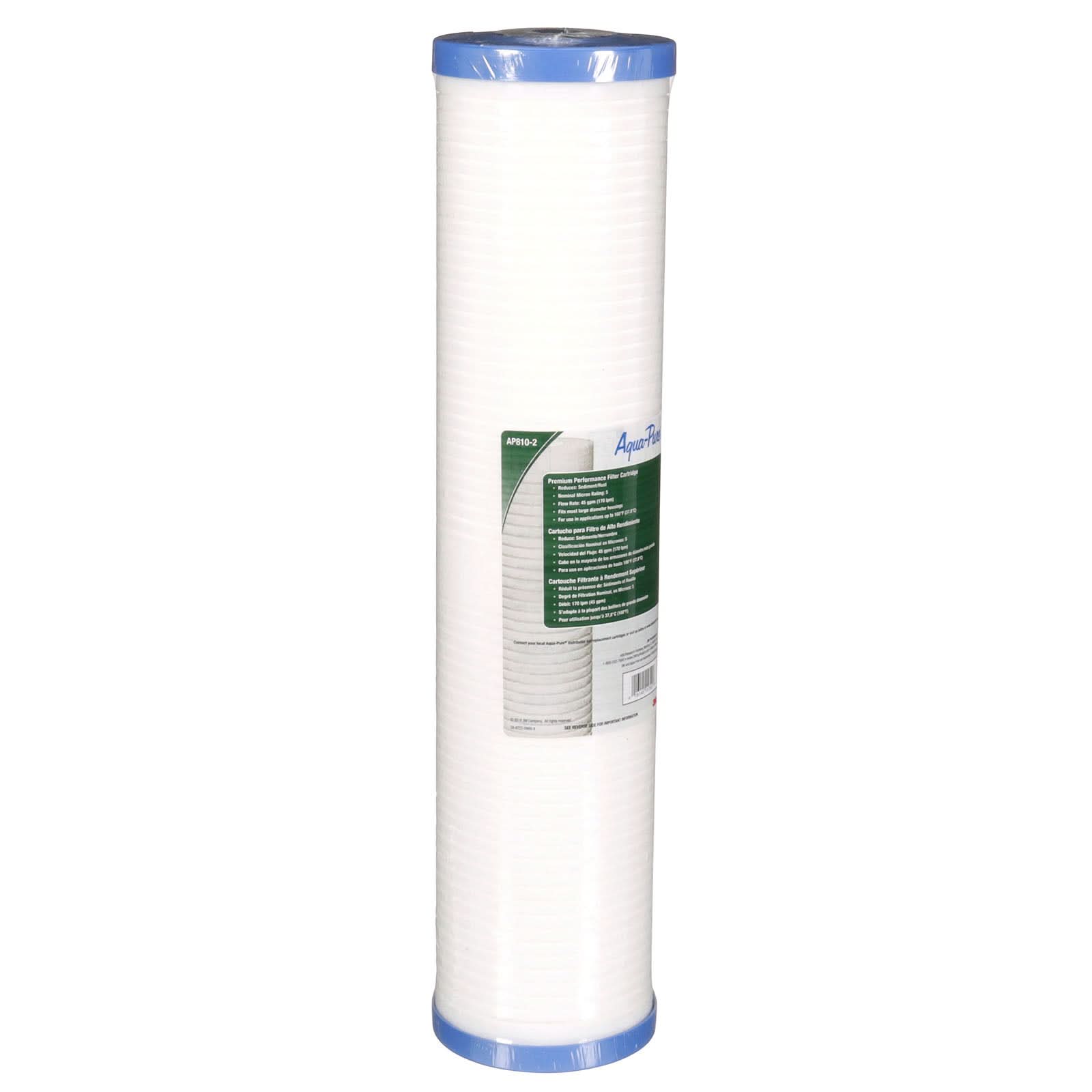

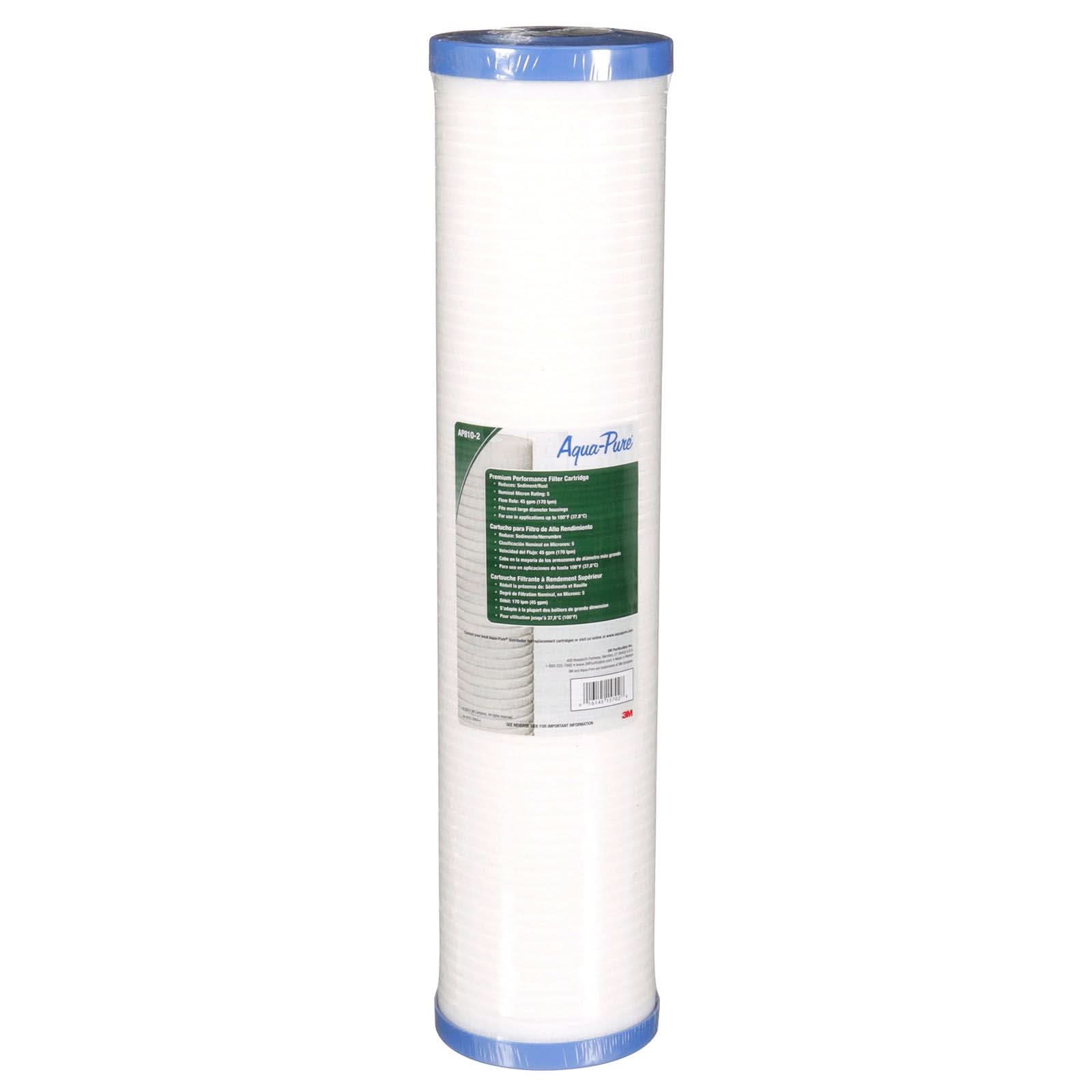

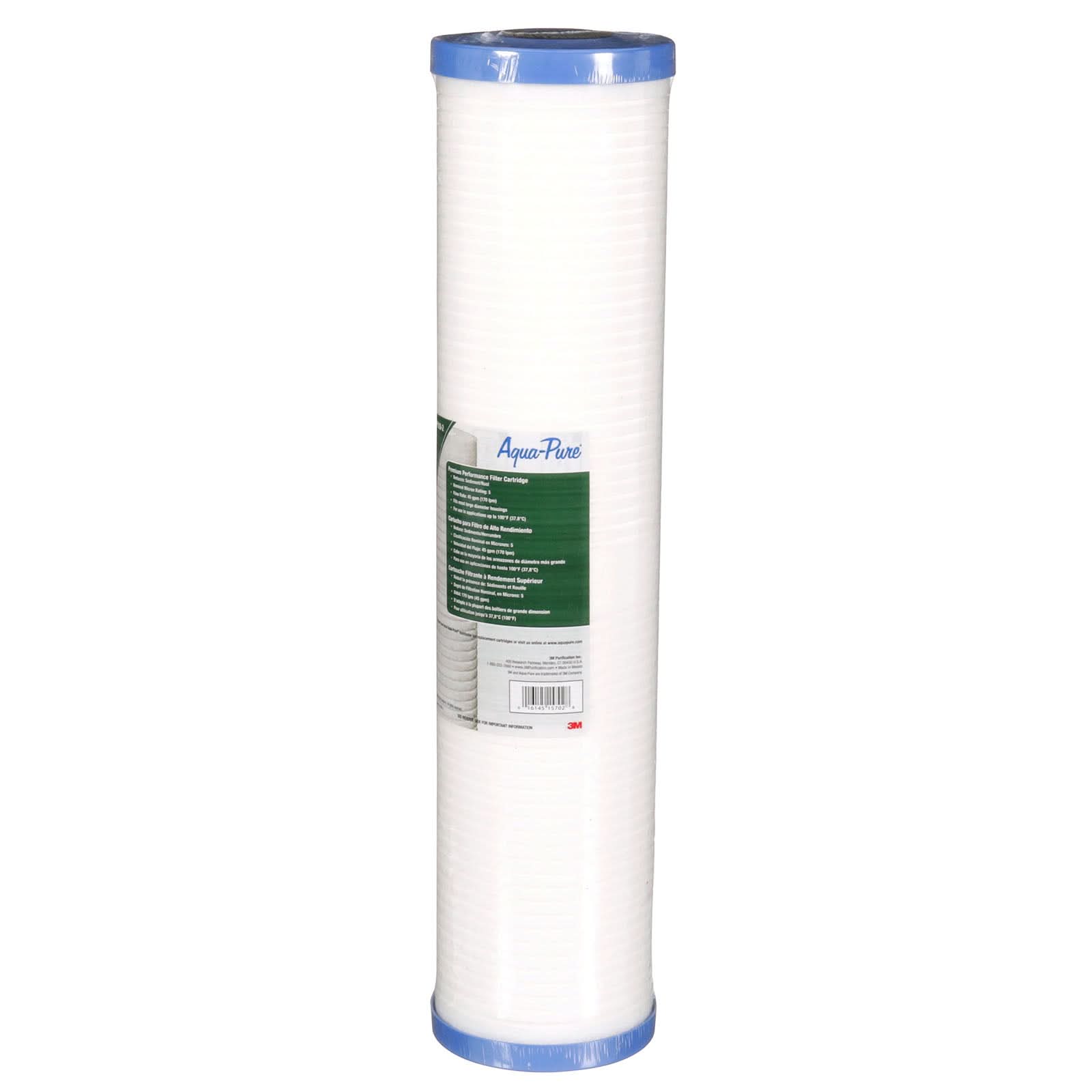

    The AP810-2 by 3M Aqua-Pure water filter replacement cartridge reduces dirt and rust down to 5 microns. This 3M Aqua-Pure AP810-2 cartridge is for Premium Performance Filtration. The larger diameter dirt & rust cartridge is for larger homes and commercial applications. The 3M Aqua-Pure AP810-2 dirt & rust water filter cartridge is made from an exclusive process using pure white cellulose fibers. As water passes from the outer surfaces into the center of the cartridge, the filtering pores become increasingly smaller to remove even microscopic particles. Unlike string-wound and pleated paper cartridges, the rigid, sturdy construction of the 3M Aqua-Pure cartridges are able to withstand high pressure drop and stressful conditions such as water hammer. Also known as 3M Aqua-Pure 55779-07 and 3M Aqua-Pure 56189-03.


    AQUAPURE-AP810-2   is comparable with the following part number(s)

    • 155305
    • 5577907
    • 55779-07
    • Ametek / Pentek DGD5005-20 155358-43
    • AP802
    • AP802-1.5
    • AP802-1.5C
    • AP810-2
    • Big Blue Sediment Filter
    • S120-BB
    • S1-20BB
    • 56189-03
