    Tier1

    TIER1-CP5-934

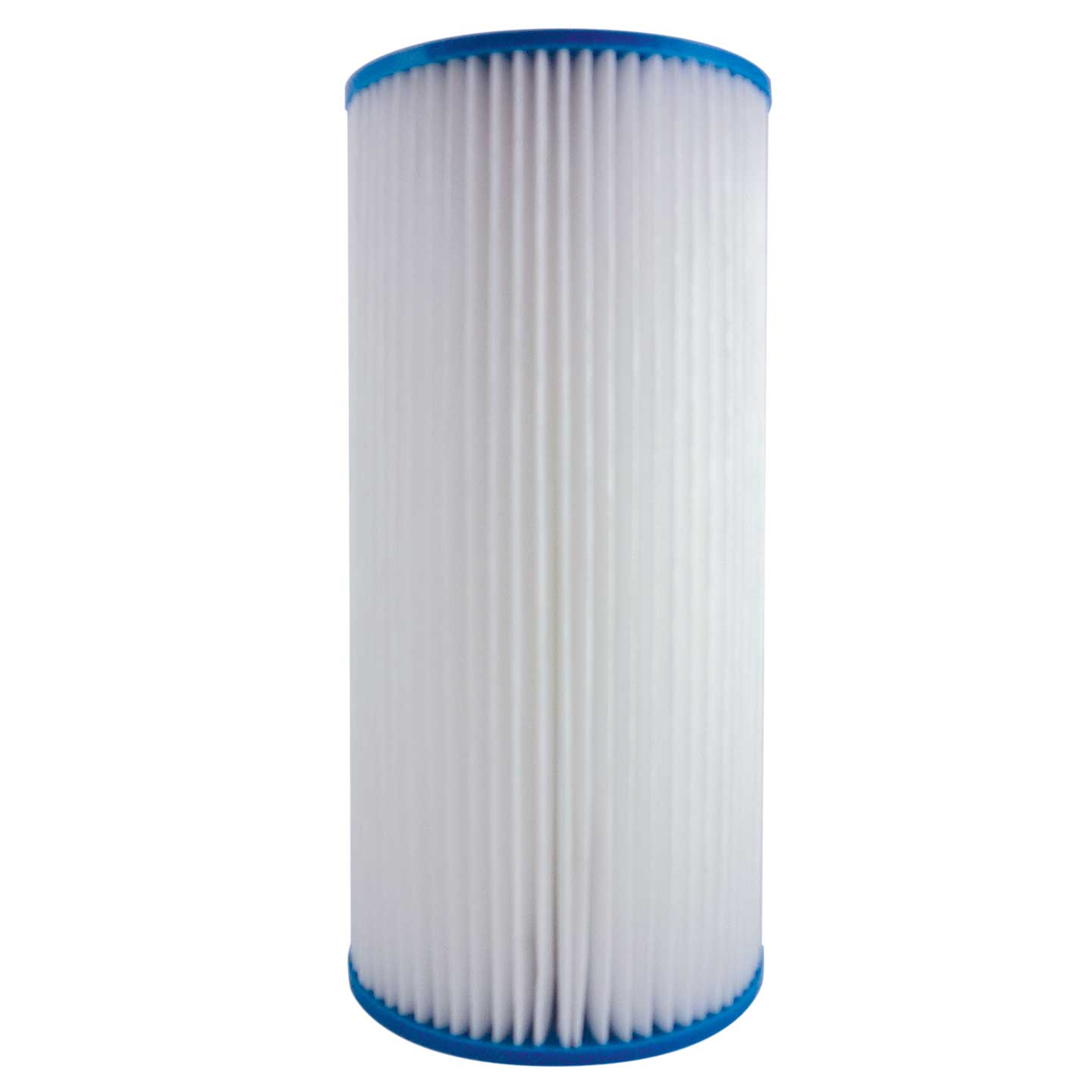

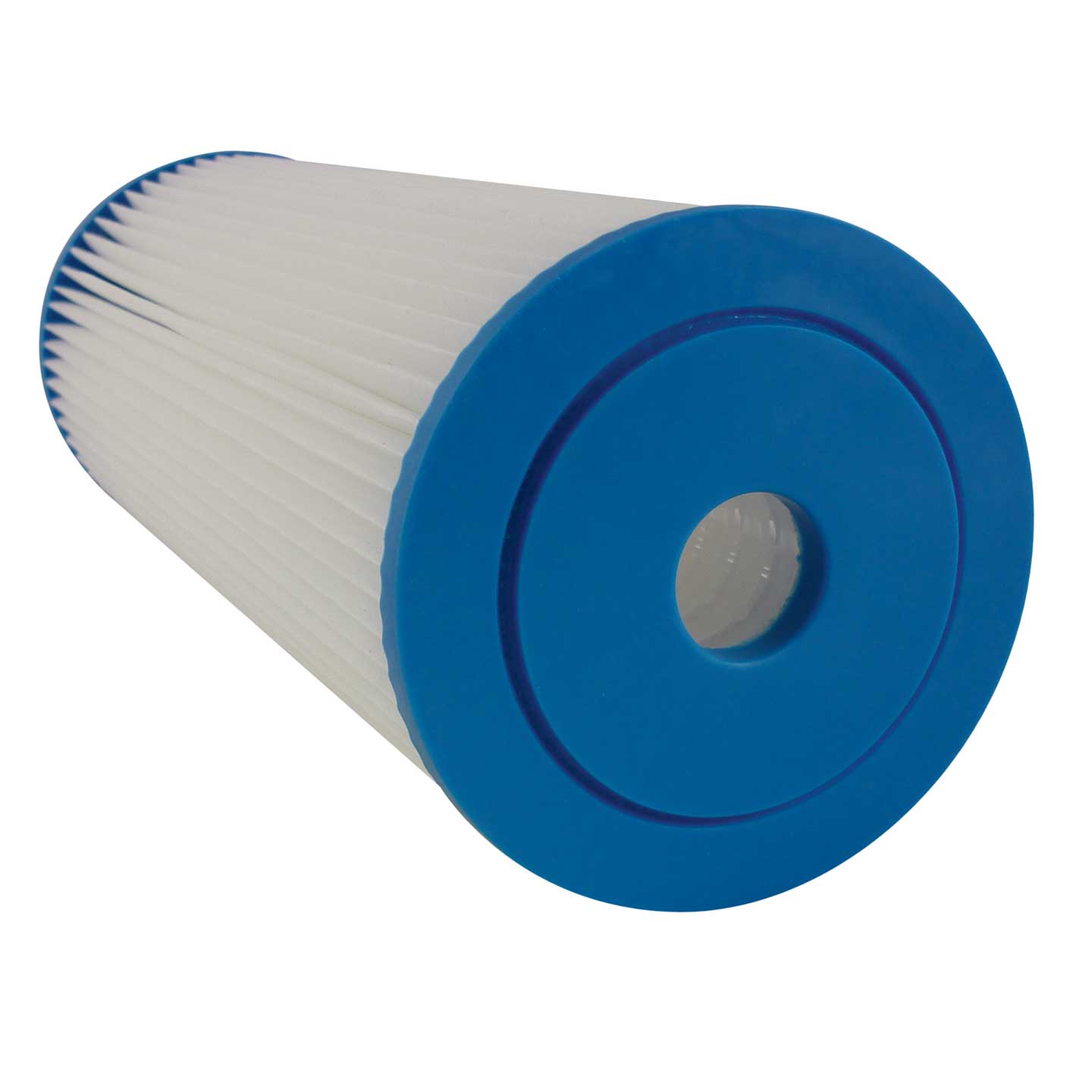

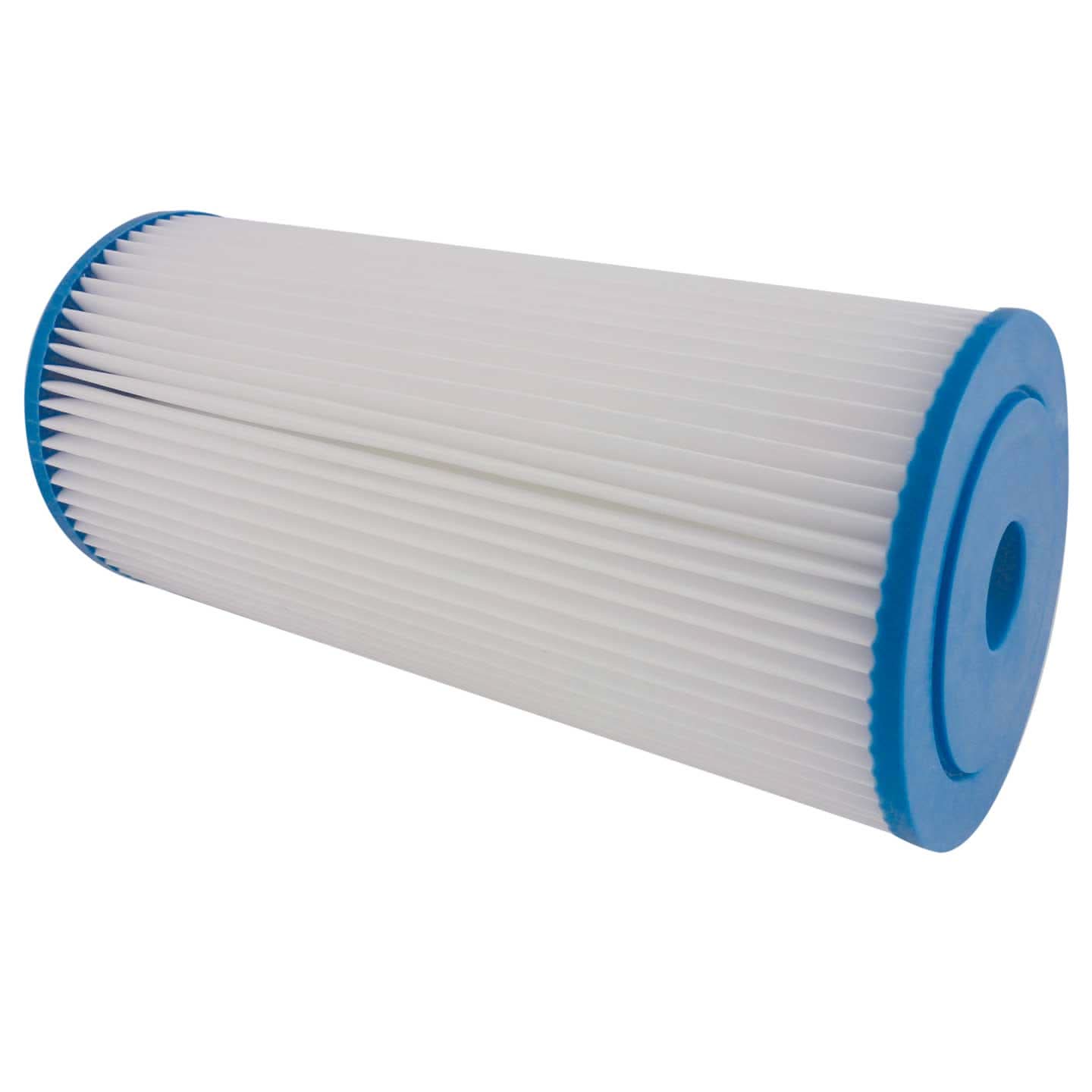

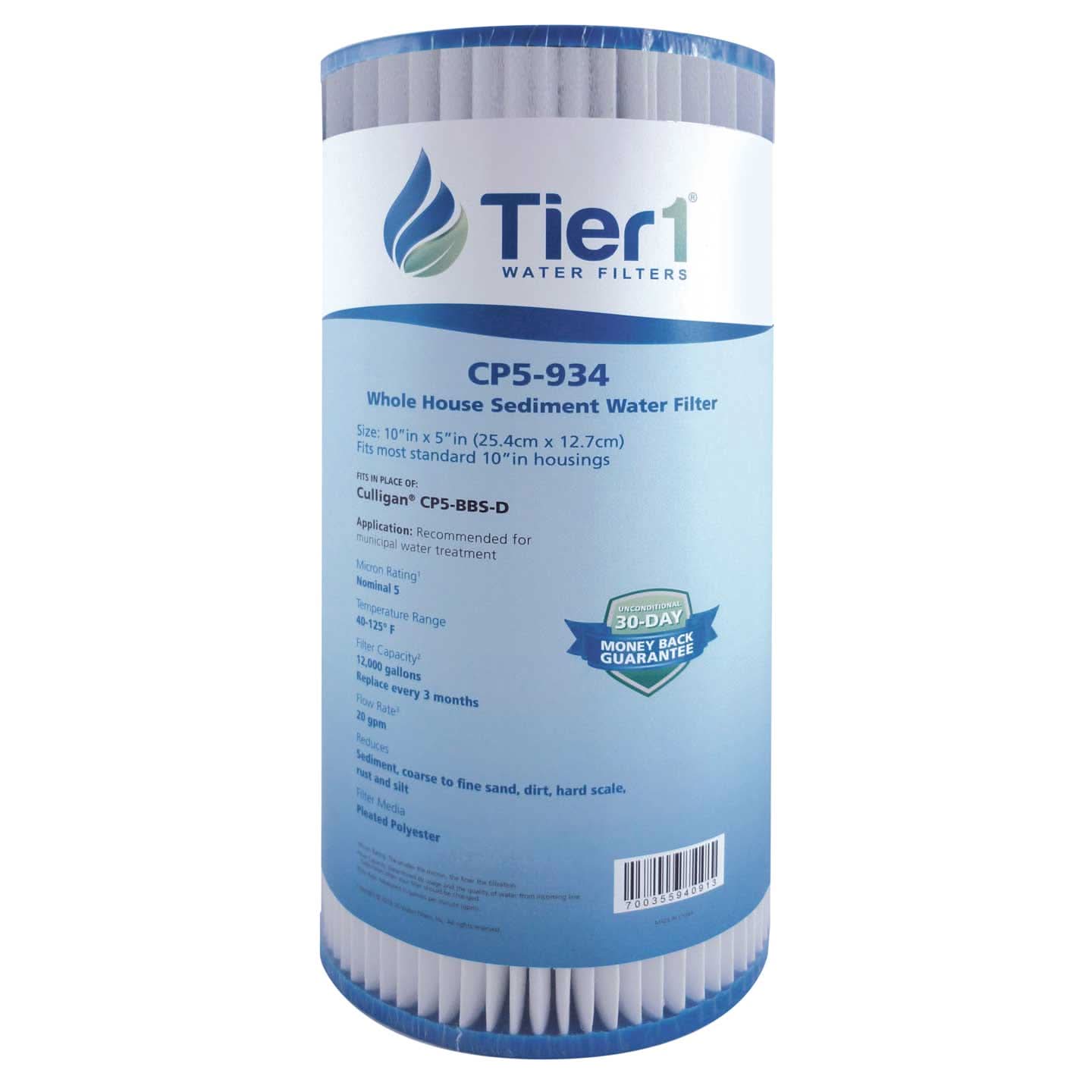

    10 X 4.5 Pleated Polyester Replacement Filter (5 micron)

    Fits most standard housings built for 10-inch x 4.5-inch filter cartridges
    • Ships fast!

    • Installs quickly and easily

    • Delivers filtered water throughout your home

    • Can be rinsed to prolong the life of the filter

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: CP5-934
    UPC: 700355940913
    Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
    Media: Pleated Polyester
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 10 x 4-1/2
    Depth (in): 4.5 in
    Length (in): 9.75 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 700355940913 | 33663005129 | 70033663005128 | 33663005129
    Micron Rating Nominal: 5
    Flow Rate (gpm): 10.0
    Includes: One Tier1 10 X 4.5 Inch Pleated Polyester Replacement Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    7. Insert new filter cartridge
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Particles
  • Rust And Corrosion
  • Sand
  • Sand Coarse
  • Sand Extra Fine
  • Sand Fine
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (gallons): 12000
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

    Tier1 CP5-934 Filter Advantages

    The Tier1 Culligan CP5-BBS-D comparable whole house sediment water filter is manufactured for 10 x 4.5-inch filter housings. Tier1 water filters go to work quickly reducing the sediment, sand, dirt, hard scale, rust, and silt that plague water. Polyester pleats hold up better to prolonged usage than cellulose fiber options and allow for improved flow rates. Rest assured with Tier1's Unconditional Product Guarantee for Life of the Product. Order the Tier1 Culligan CP5-BBS-D comparable whole house sediment water filter today!

    Pleated Filter Media

    The Tier1 CP5-934 uses pleated filter design to maximize contaminant exposure to filter media. More time along the media allows for higher capture and retention of unwanted contaminants. This also allows for greater amounts of larger particles of sediment and sand to collect within the pleats of the filter. This pleated design enhances structural stability and helps increase the performance of the filter. Pleated filter media can be rinsed for extended life capacity, if extensive staining or slight tearing and rips appear the filter must be replaced.

    Universal Filter Sizing

    The 10 X 4.5 Tier1 CP5-934 pleated polyester replacement filter is built to fit 10-inch x 4.5-inch filter housings. This standard sizing allows this filter to easily replace existing styles of whole house filters for housings requiring 10 x 4.5 inch filters. The CP5-934 goes to work immediately providing cleaner, fresher water for up to six months. Enjoy cleaner better water with your whole house replacement filter today.


    TIER1-CP5-934   is comparable with the following part number(s)

    • Culligan CP5-BBS-D
    • 155184
    • 1019138
    • 4021341
    • 10 inch Big Blue Housings
    • 155184-27
    • 255490-43
    • American Plumber 155184
    • American Plumber W5CPHD
    • Ametek CP5-BB
    • Ametek ECP5-BB
    • Bruner CP5-BB
    • CP5-BB
    • CP5-BBS
    • CP5-BBS-D
    • ECP5-BB
    • FM-BB-10-5
    • GPC5
    • HD-950
    • Keystone GPC5
    • Kleen Plus CP5-BB
    • OmniFilter RS15
    • PC05-BB-S
    • Pentair CP5-BB
    • Pentek 255490-43
    • Pentek CP5-BB
    • Pentek ECP5-BB
    • Plymouth CP5-BB
    • RS15
    • RS15-2-01
    • RS15-2-02
    • RS15-2-05
    • SPC-45-1005
    • SPF-45-1005
    • US Filter CP5-BB
    • W5CPHD
    • WB-HB-10-5
    • RB-CP5-BBS

    TIER1-CP5-934   fits the following model number(s)

    • STANDARD 10X4.5-INCH HOUSINGS
    • AQUAPURE-AP101T
    • WHIRLPOOL-WHKF-DWHBB
