    PENTEK-DGD-5005-20

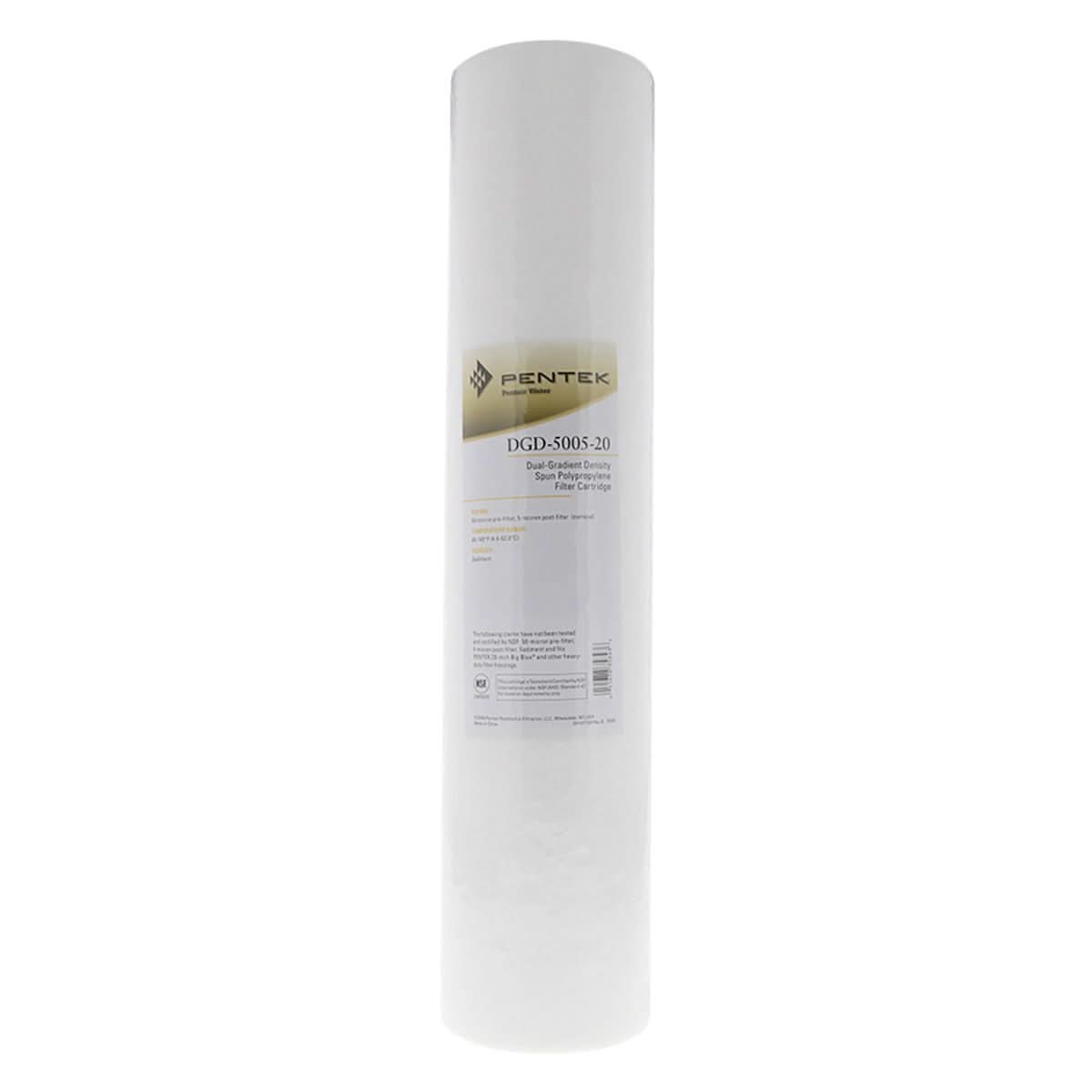

    Pentek DGD-5005-20 Sediment Water Filters (20-inch x 4.5-inch)

    Fits most stand housings built for 20-inch x 4.5 inch filter cartridges
    • Ships fast!

    • Supports a flow rate of up to 20 gallons per minute (gpm)

    • Reduces extra fine dirt, sand, sediment, silt, rust particles, and scale particles

    • Contains two separate gradient density layers that enhance cartridge performance

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: DGD-5005-20
    UPC: 051678358436
    Actual Size (in): 19.75 inches (length) x 4.25 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Brand: Pentek
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Materials of Construction: Spun Wound Polypropylene
    Media Type: Sediment Filter
    UPC's For Search: 10051678358433 | 051678358436
    Country of Origin: China
    Micron Rating Nominal: 5
    Flow Rate (gpm): 20.0
    Includes: One Dual Gradient Density Pentek DGD-5005-20 Sediment Water Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    file_download Downloads
    workspace_premium Certifications
  • NSF/ANSI Standard 42
  • warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particles
  • Rust And Corrosion
  • Sand
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (months): 6 months

    Pentek DGD-5005-20 Filter Advantages


    The Pentek DGD-5005-20 water filters reduce the need for multiple housing step-down filtration systems. The Pentek DGD-5005-20 water filters are made from pure polypropylene construction and as a result are resistant to chemicals and corrosion. The Pentek DGD-5005-20 replacement filters are designed for water purity and bacteria and chemical resistance. This cartridge will not add taste, odor, or color to the liquid being filtered. The Pentek DGD-5005-20 water filter is ideal for all residential, rural, commercial, industrial, and municipal applications.



    Dual Gradient Density Advantages


    The Pentek DGD-5005-20 prefilter (outer density layer) reduces the particle load to the postfilter (inner layer), allowing it to operate at higher velocities and offer higher flow rate. By having a gradual micron refinement, contaminants can be sifted out as water permeates the media, instead of combating all the larger particles on the outer layer, this allows for higher flow and greater holding capacity. The effective DGD-5005-20 filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters. This increased depth provides for very high particulate reduction efficiencies and added loading capacity.



    Polypropylene Filter Cartridge


    Polypropylene media inhibits bacterial growth making it an ideal option for both municipal and well water applications. These filters are effective at capturing contaminants such as sand, sediment, silt, and more. Unlike carbon filter cartridges you wont have to worry about small carbon fines potentially spilling into your water, while still enjoying the benefits of filtered water throughout your home. Polypropylene filters are great for whole-house water filtration and can be used as effective pre-filters for whole-house or point-of-use systems.


    PENTEK-DGD-5005-20   is comparable with the following part number(s)

    • 155358-43
    • C155358-43
    • DGD-5005-20
    • FPMB-BB5-20
    • P5-20BB
    • PENTEK-DGD-5005-20
    • SDC-45-2005
