    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Tier1

    TIER1-P20-10

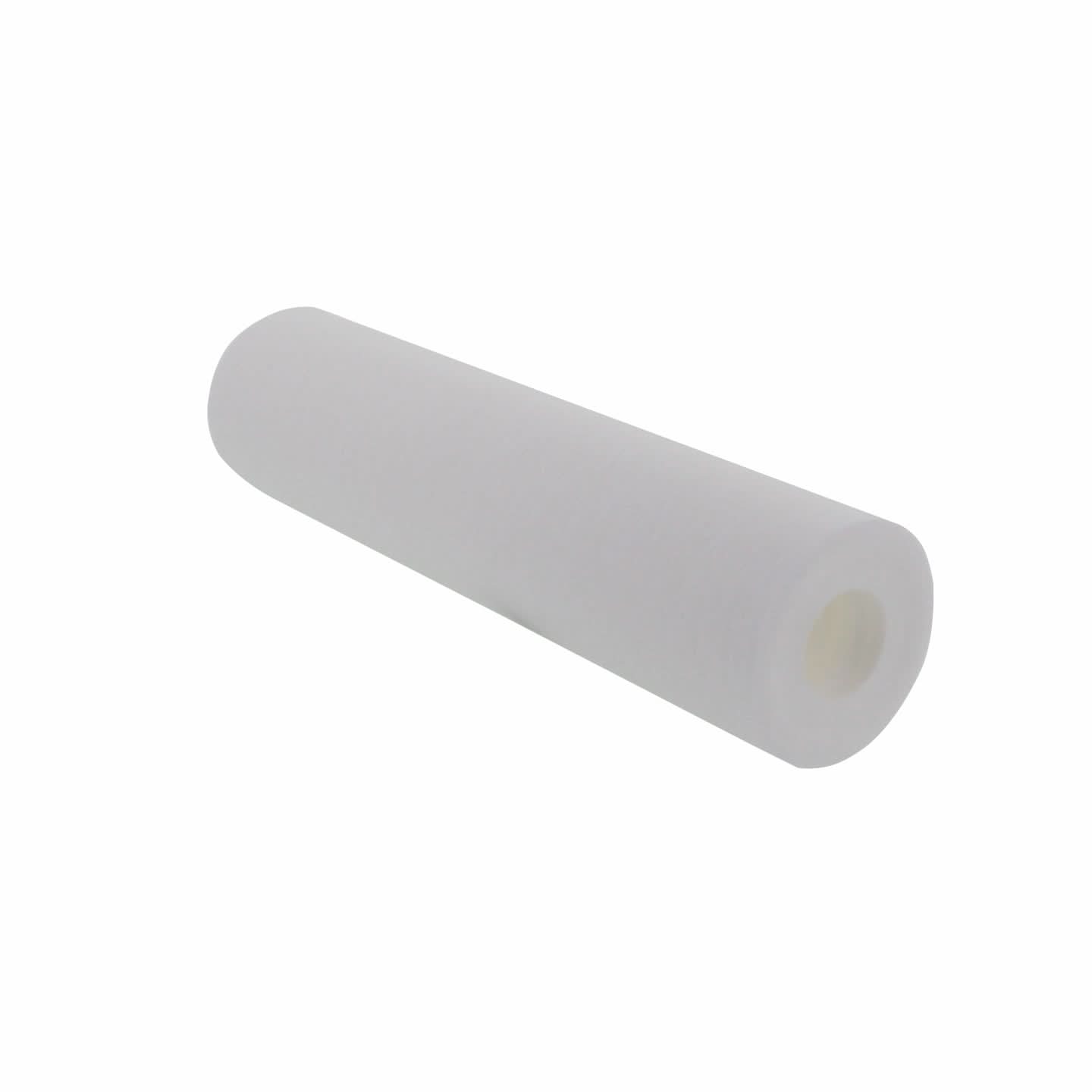

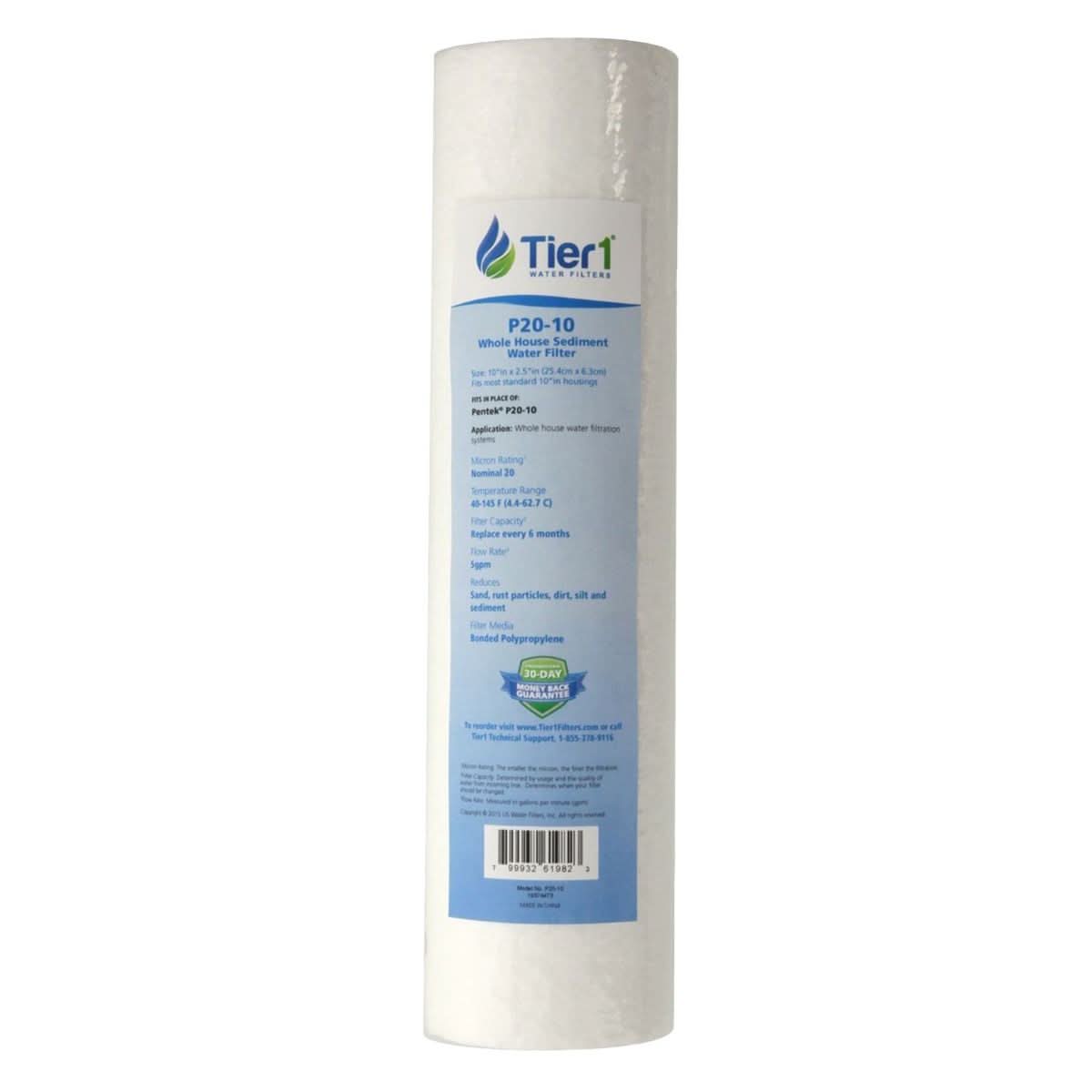

    10 X 2.5 Spun Wound Polypropylene Replacement Filter by Tier1 (20 micron)

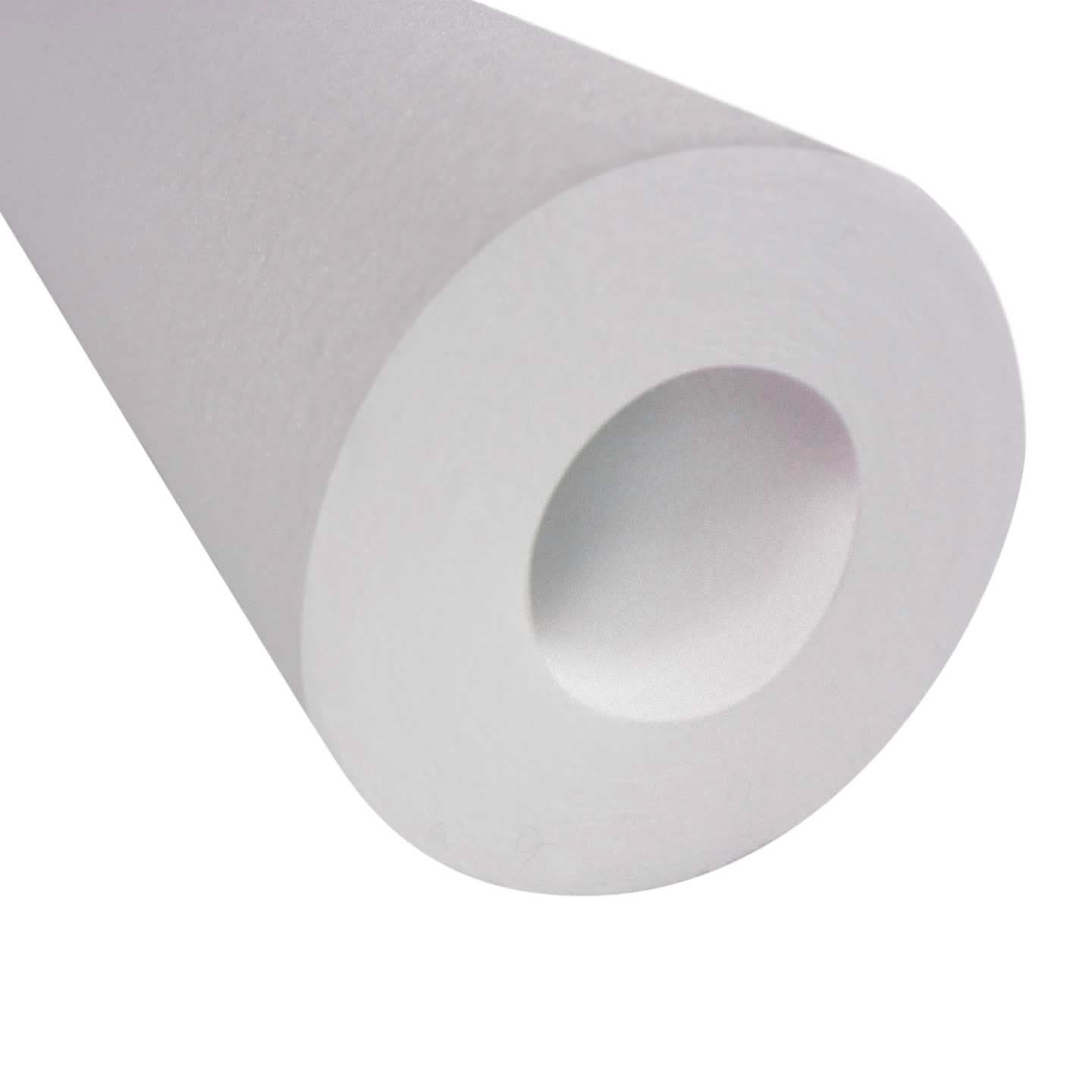

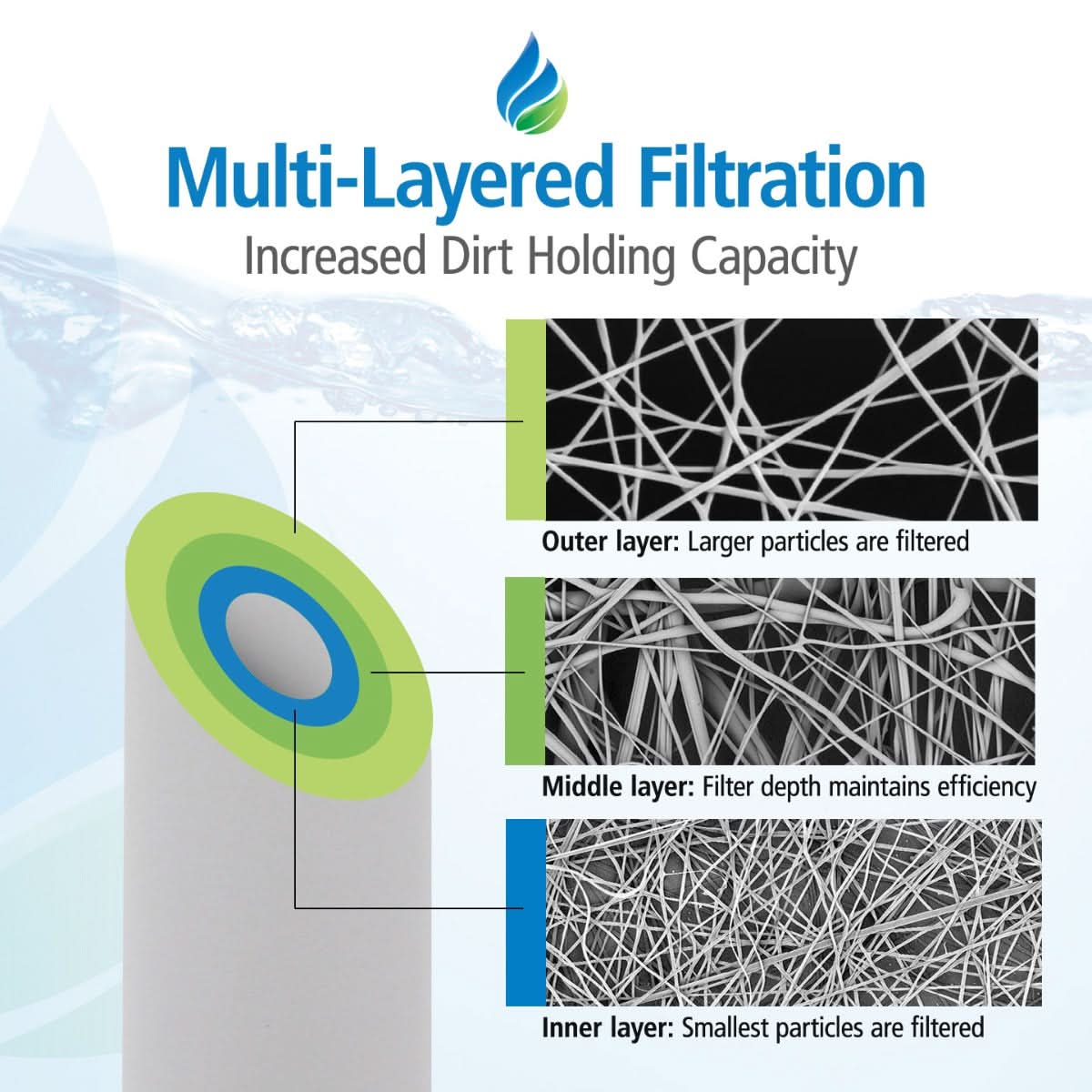

    • Bonded Polypropylene filter media

    • Brings you cleaner water along with an easy installation

    • Fits many common housings with a 10 inch by 2.5 inch size

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: P20-10
    UPC: 799932619823

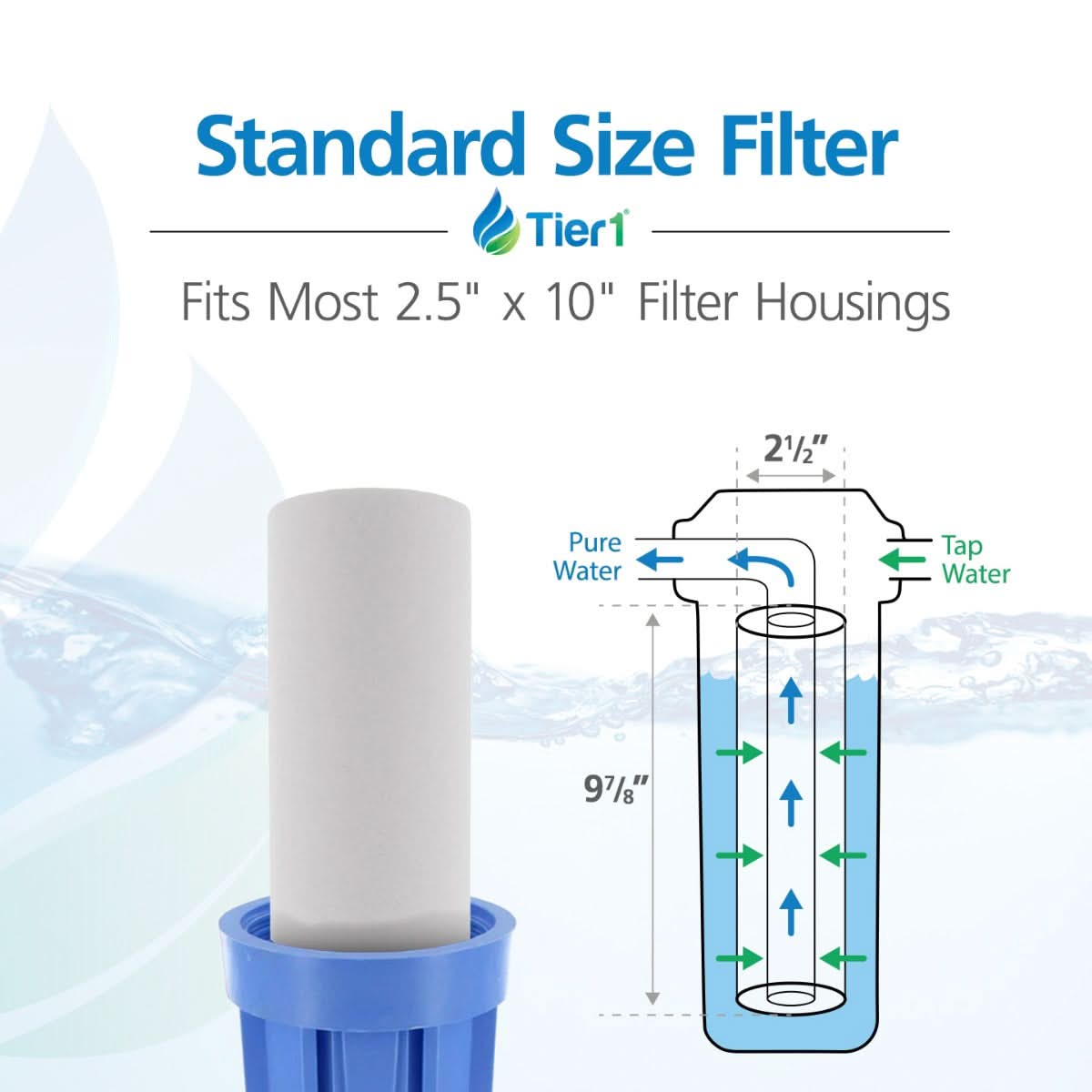

    Actual Size (in): 9-7/8 inches (length) x 2-1/2 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 10 x 2-1/2
    Length (in): 9.88 in
    Outside Diameter (in): 2.5 in
    Media Type: Sediment Filter
    UPC's For Search: 799932619823
    Country of Origin: China
    Micron Rating Nominal: 20
    Flow Rate (gpm): 5.0
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    warning_amber Contaminants Reduced
  • Particulates
  • Sediment
  • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Guarantee for Life of the Product

    The Pentek P20 Comparable Whole House Sediment Water Filter by Tier1 is a 10 x 2.5 inch whole house sediment water filter manufactured for residential applications that require the reduction of sediment. The Tier1 P20-10 Bonded Polypropylene filter reduces impurities down to 20 microns, confronting water contaminants head on. Order today!


    TIER1-P20-10   is comparable with the following part number(s)

    • PENTEK-P25
    • 93021 155015
    • 1193021
    • 155015-43
    • 155015-52
    • FPMB20-978
    • MB20-S
    • P20-10-WF
    • P25
    • PX20-9-78
    • SDC-25-1020
    • SDF-25-1020
    • W25P
    • WP25
