    PENTEK-R30-20

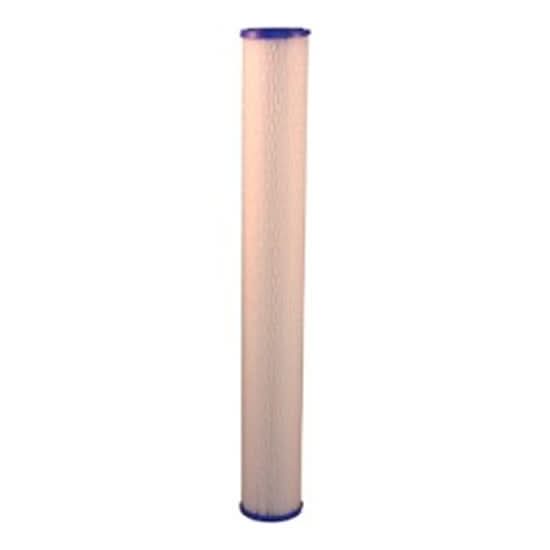

    Pentek R30-20 Pleated Polyester Water Filters (20-inch x 2-5/8-inch)

    • Greater dirt holding capacity

    • Versatile and reusable

    • Made of a durable non-woven polyester fabric

    • Used for a variety of water filtration applications

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: R30-20
    UPC: 051678416433
    Actual Size (in): 20 inches (length) x 2 5/8 inches (outside diameter)
    Media: Pleated Polyester
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Brand: Pentek
    Advertised Size: 20 x 2-1/2
    Length (in): 20 in
    Outside Diameter (in): 2.63 in
    Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol
    Media Type: Sediment Filter
    Micron Rating Nominal: 30
    file_download Downloads
    filter_alt Filter Life
    Filter Life (gallons): 6 months

    Pentek R30-20 water filters produce healthier, better-tasting drinking water. The Pentek R30-20 filter cartridge pleated design maximizes dirt-holding capacity. The Pentek R30-20 water filter is versatile and reusable, allowing for a variety of uses. The Ametek R30-20 Sediment Water Filter is manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The Pentek R30-20 water filter media is pleated around a polypropylene core for added strength and the ends are immersed in a thermosetting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency. R Series filter cartridges are resistant to both bacteria and chemical attack making them suitable for a variety of residential, commercial and industrial applications. NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. 30 micron Pentek R30-20 Pleated Polyester Water Filter Cartridge. The Pentek R30-20 replacement filter cartridge has durable polyester media that is bacteria and chemical resistant. The R30-20 filter can be used on chlorinated or non-chlorinated water supplies. The Pentek R30-20 filter cartridge media is pleated to maximize dirt-holding capacity and extend the time period between changes or cleaning.


    PENTEK-R30-20   is comparable with the following part number(s)

    • 4BB20
    • 155416-43
