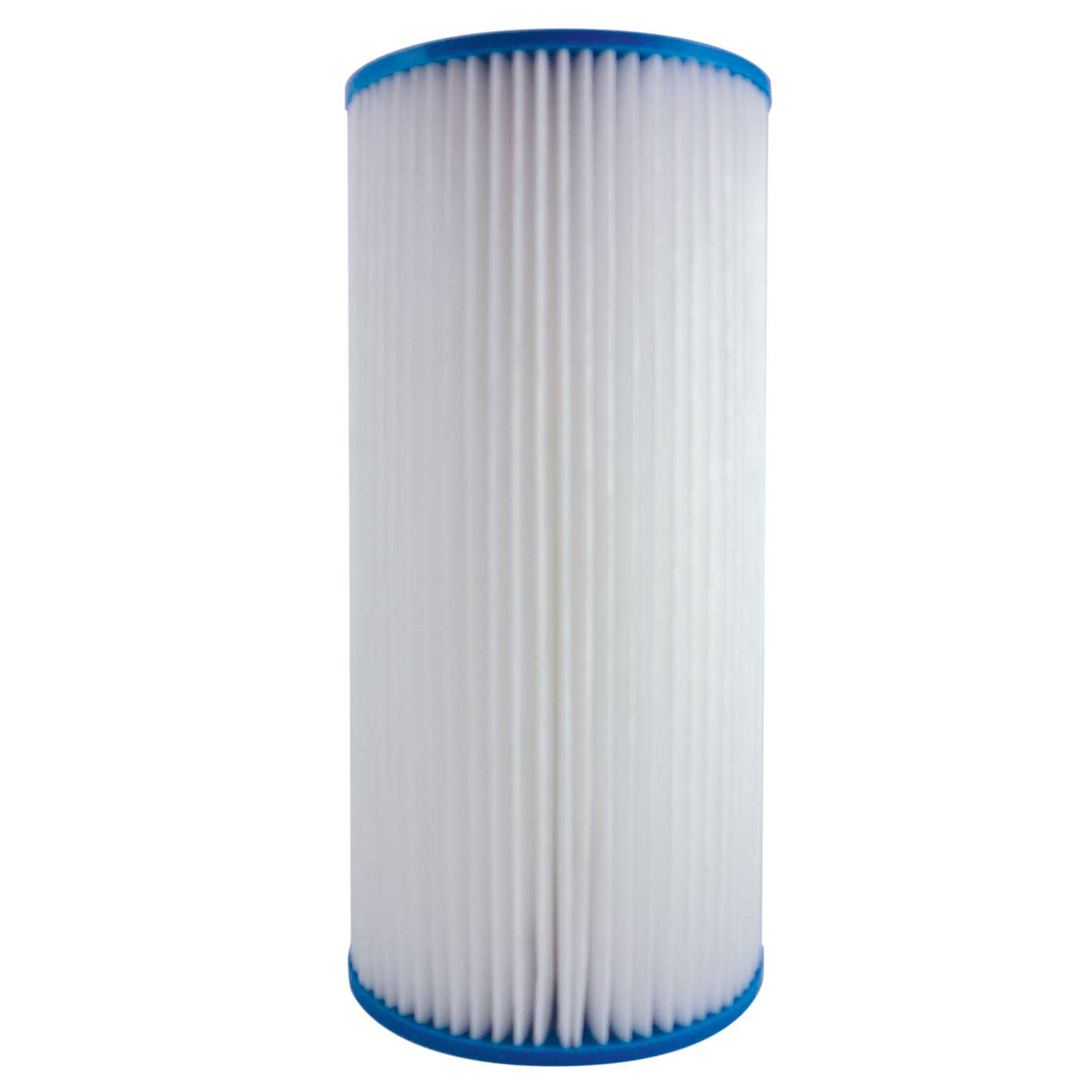

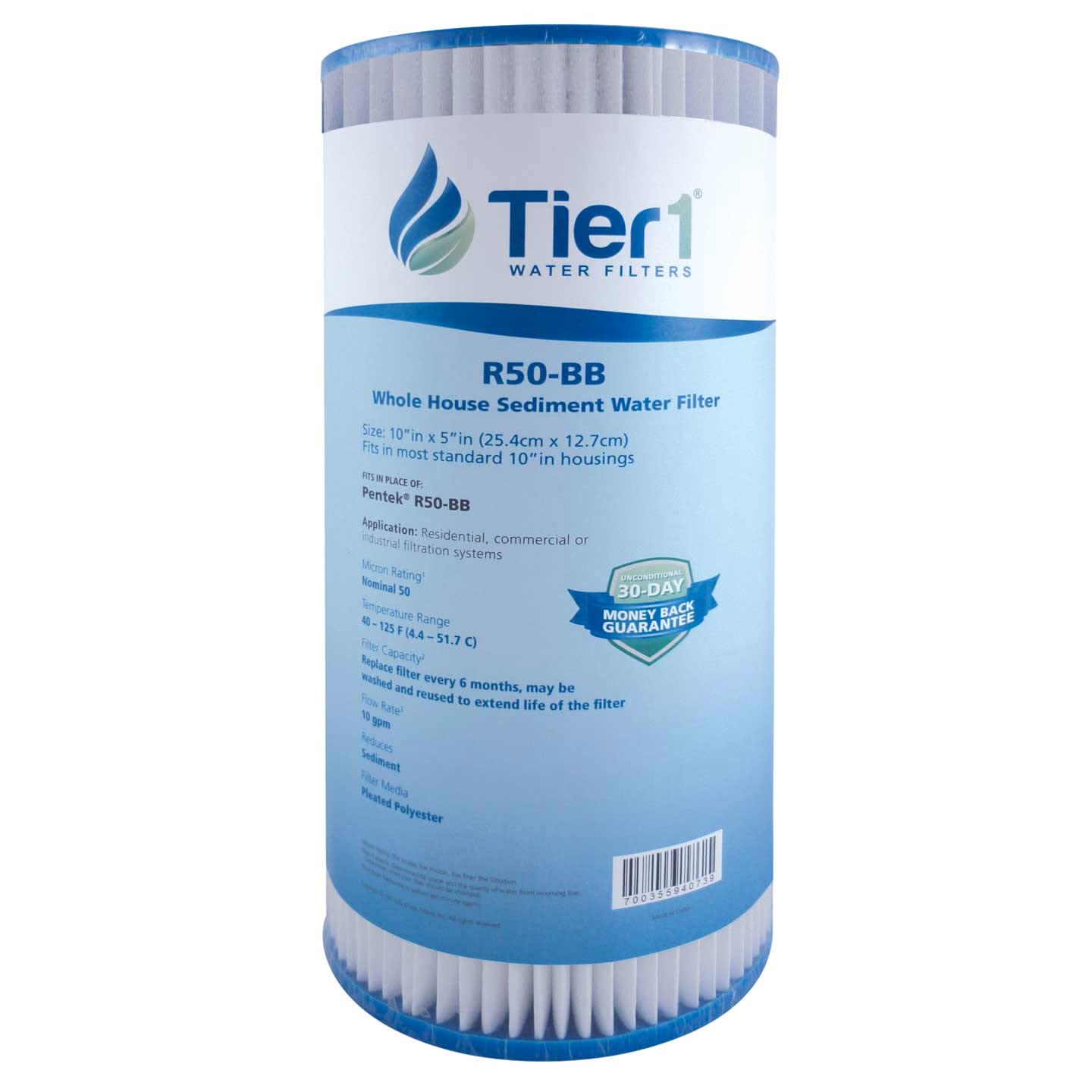

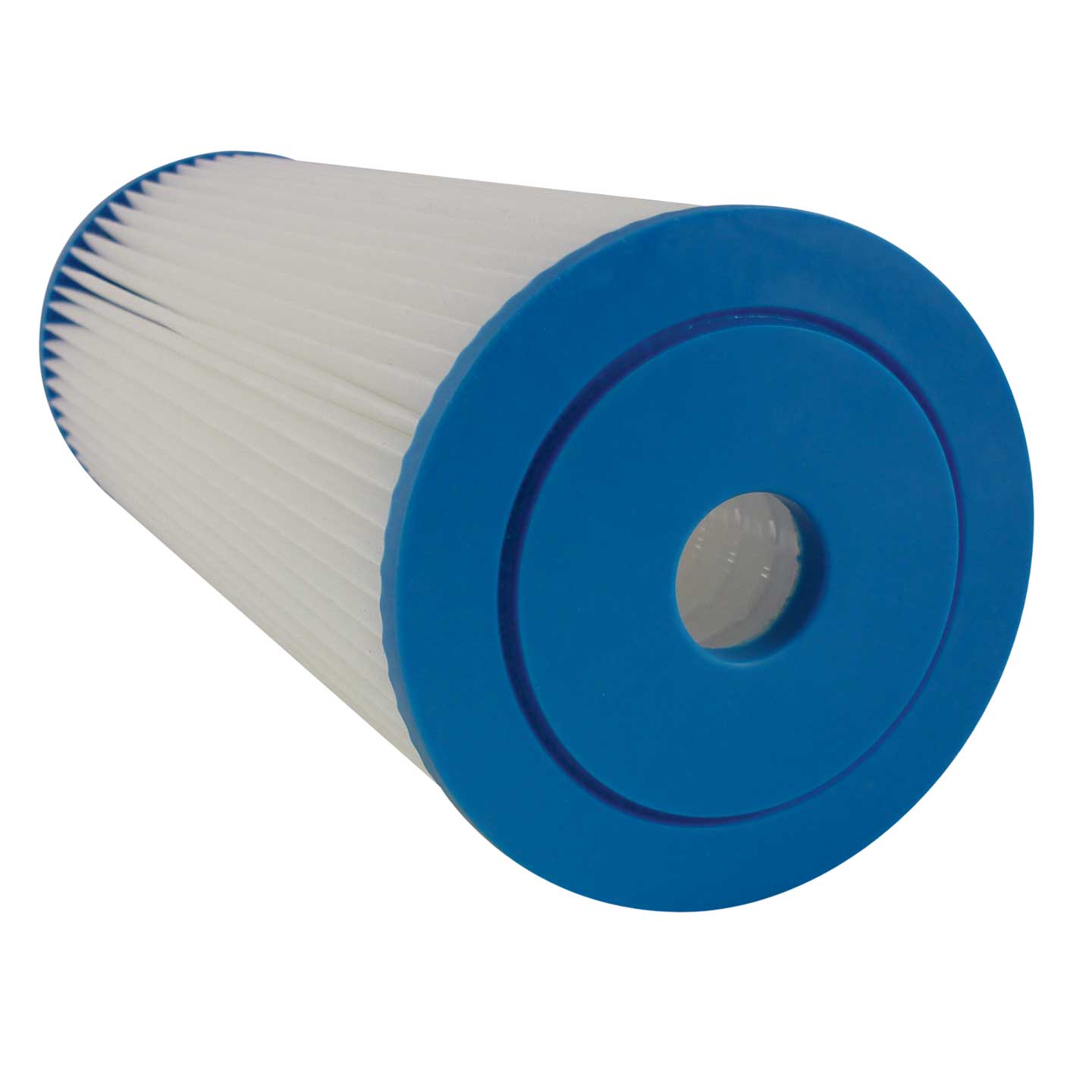

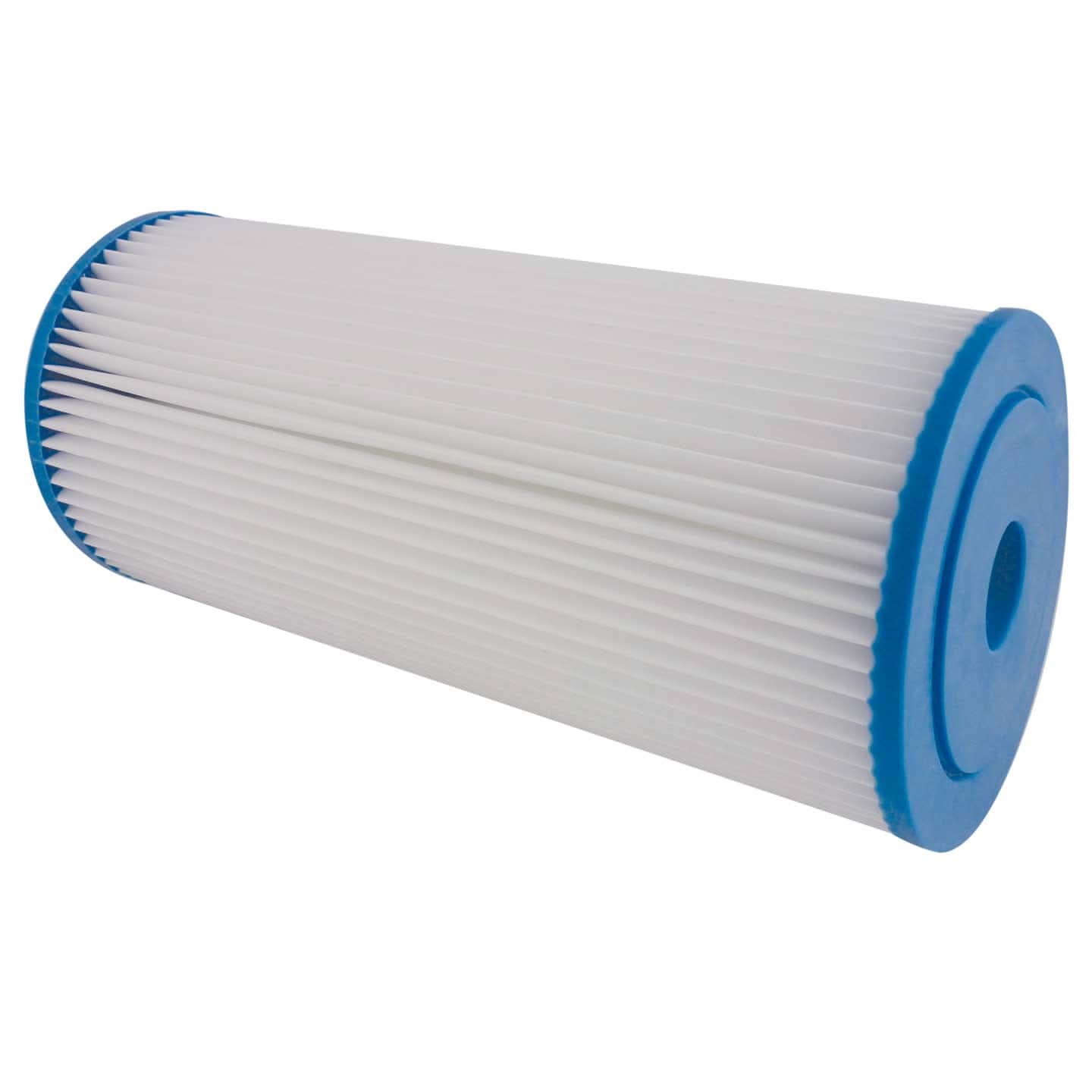

    10 X 4.5 Polypropylene Replacement Filter by Tier1 (50 micron)

    • Pleated Polyester filter media

    • Brings you cleaner water along with an easy installation

    • Fits many common housings with a 10 inch by 4.5 inch size

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: R50-BB
    UPC: 700355940739
    Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
    Media: Pleated Polyester
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: 30 day 100% satisfaction guarantee
    Brand: Tier1
    Advertised Size: 10 x 4-1/2
    Depth (in): 4.41 in
    Length (in): 9.75 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.41 in
    Media Type: Sediment Filter
    UPC's For Search: 700355940739 | 10051678053437 | 051678053430
    Country of Origin: China
    Micron Rating Nominal: 50
    Flow Rate (gpm): 10.0
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    7. Insert new filter cartridge
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Particles
  • Sediment
  • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: 30 day 100% satisfaction guarantee

    The Pentek R50-BB comparable water filter by Tier1 is a 10 x 4.5 inch whole house sediment water filter for commercial, industrial, and residential applications that require reduction of sediment. Pleated Polyester filter media headlines this 50 micron sediment filter that will meet your filtering challenges head on. Order today!

    TIER1-R50-BB   is comparable with the following part number(s)

    • 155053-43
    • Pentek R50-BB
    • PENTEK-R50BB
    • PENTEK-R50-BB
    • R50BB
    • TIER1-R50-BB

    TIER1-R50-BB   fits the following model number(s)
