    Tier1

    TIER1-ECP50-20BB

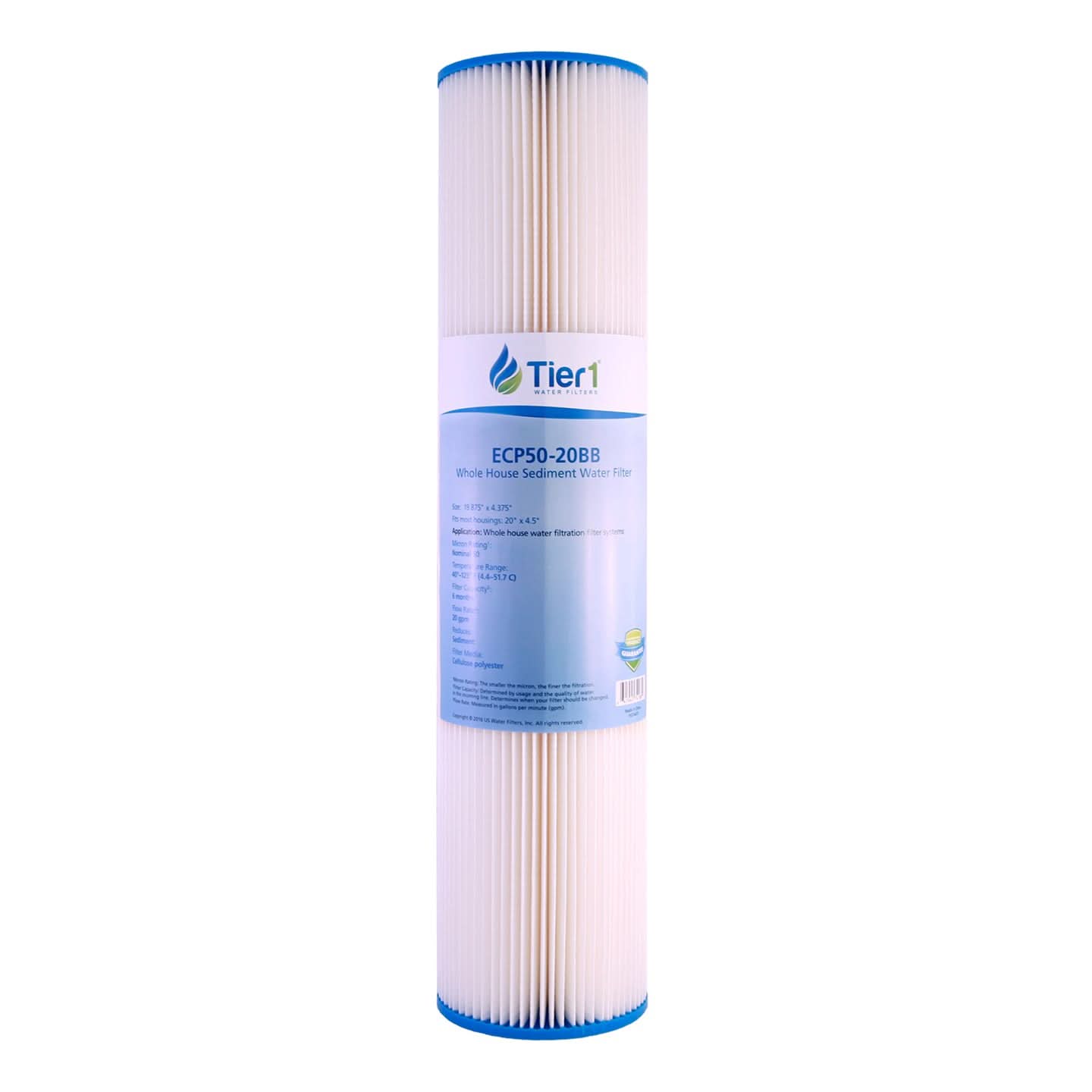

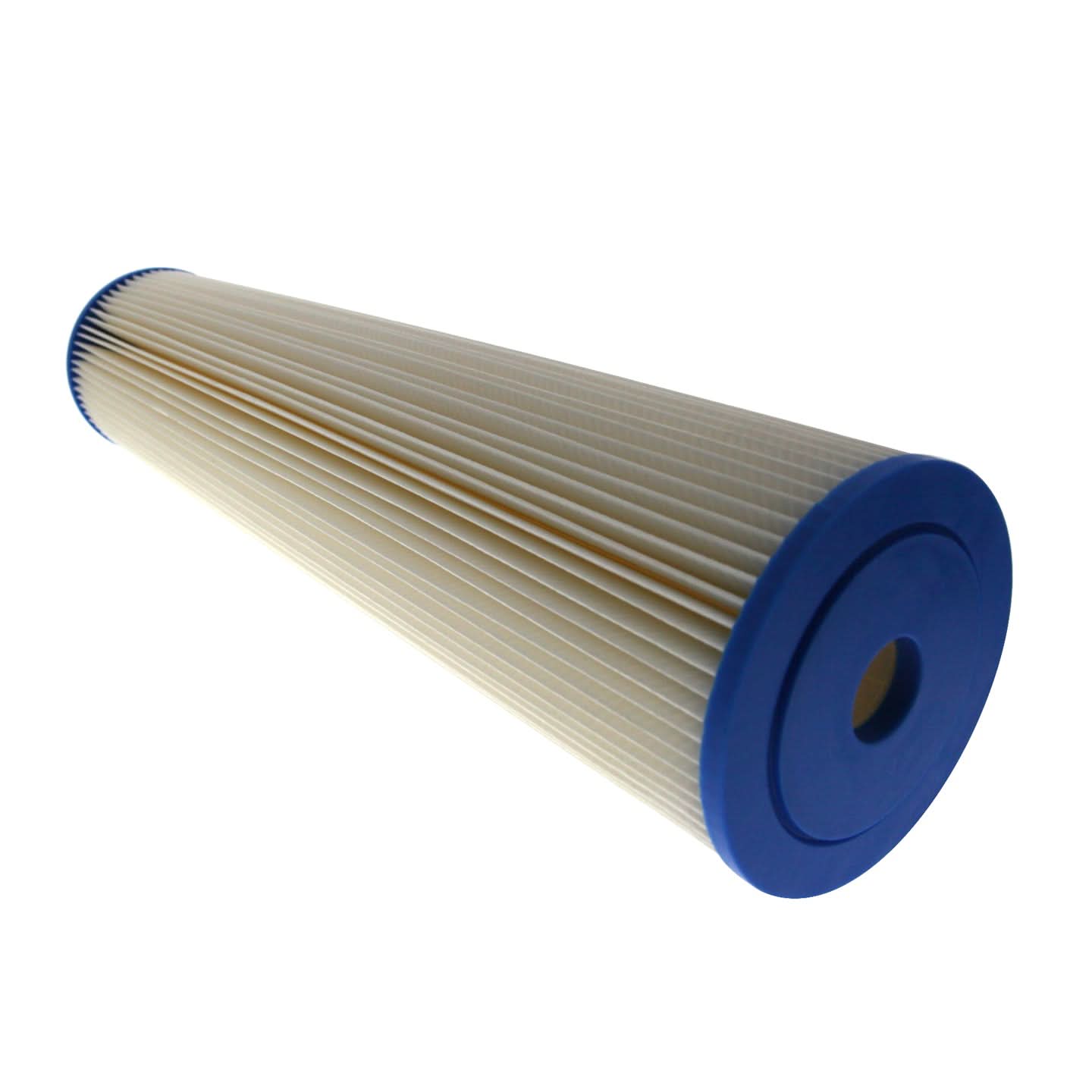

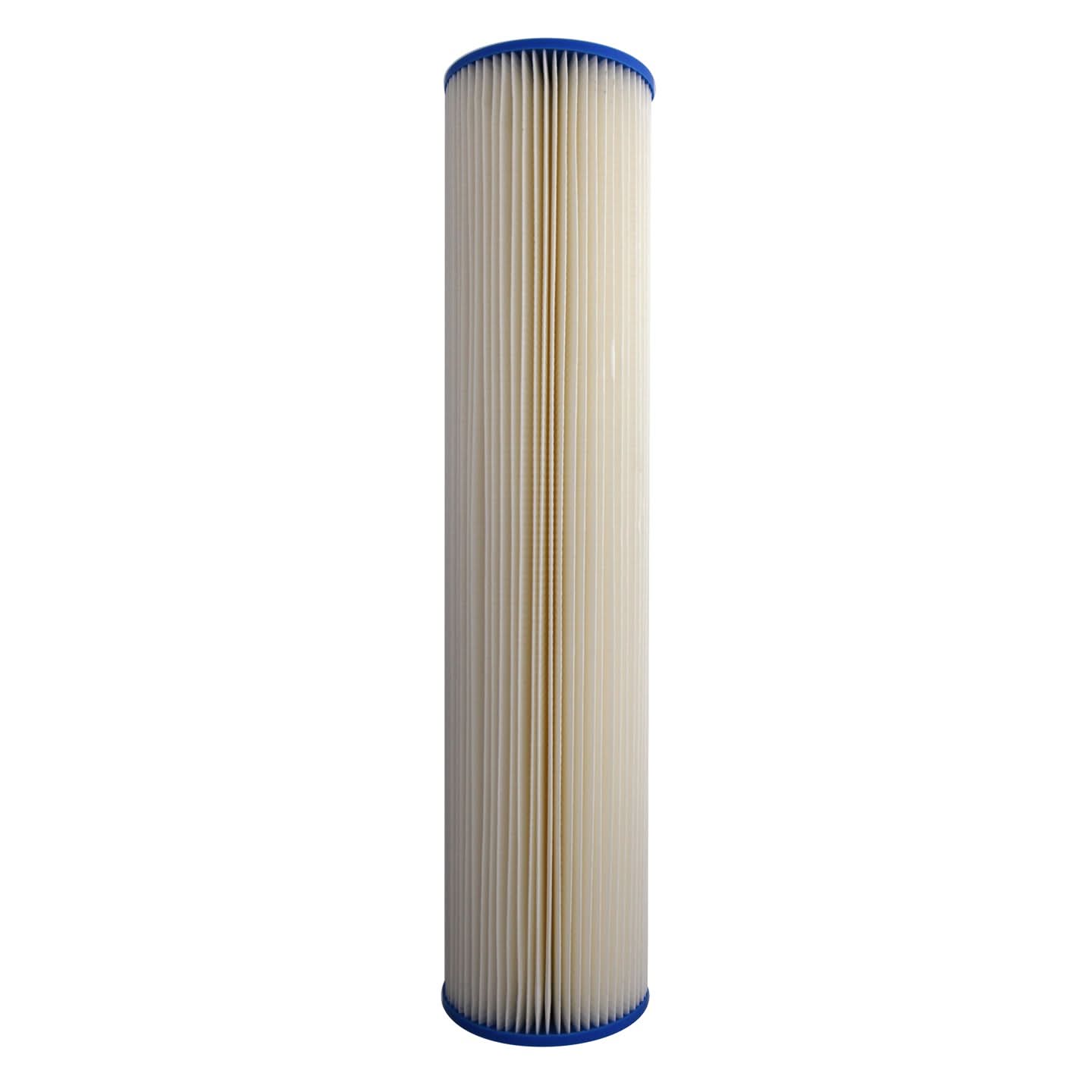

    Tier1 Pentek ECP50-20BB Comparable Pleated Sediment Water Filter

    • Great cost effective alternative

    • Large dirt holding capacity

    • Do not use on well water

    • Pleated media great for sediment capture

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: ECP50-20BB
    UPC: 641945741889
    Media: Cellulose Polyester
    Primary Filter Media: Pleated Cellulose Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 4-1/2
    Depth (in): 4.51 in
    Length (in): 20 in
    Width (in): 4.51 in
    Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol
    Media Type: Sediment Filter
    Micron Rating Nominal: 50
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge
    4. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    5. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    6. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    7. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    8. Insert new filter cartridge
    9. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    10. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Rust And Corrosion
  • Sand Fine
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Guarantee for Life of the Product

    The Pentek ECP50-20BB Comparable Pleated Sediment Water Filter by Tier1, is a cost effective filter specializing in the reduction of sediment, sand, and silt. the pleated material of this filter helps to ensure a greater dirt holding capacity. Due to the large size of this filter, (20x4.5 inches) greater filtration is enacted due to more surface area in which to work with. The Tier1-ECP50-20BB is not recommended for well water, as the cellulose within the filter may break down when in contact with bacteria. Larger contaminates will be filtered out with a micron rating of 50. Be sure to order yours today!


    TIER1-ECP50-20BB   is comparable with the following part number(s)

    • 4PAY5
    • 255496-43
