    Warranty Guarantee: Tier1® Protect Every Drop Guarantee
    Tier1

    TIER1-MANG-IRON

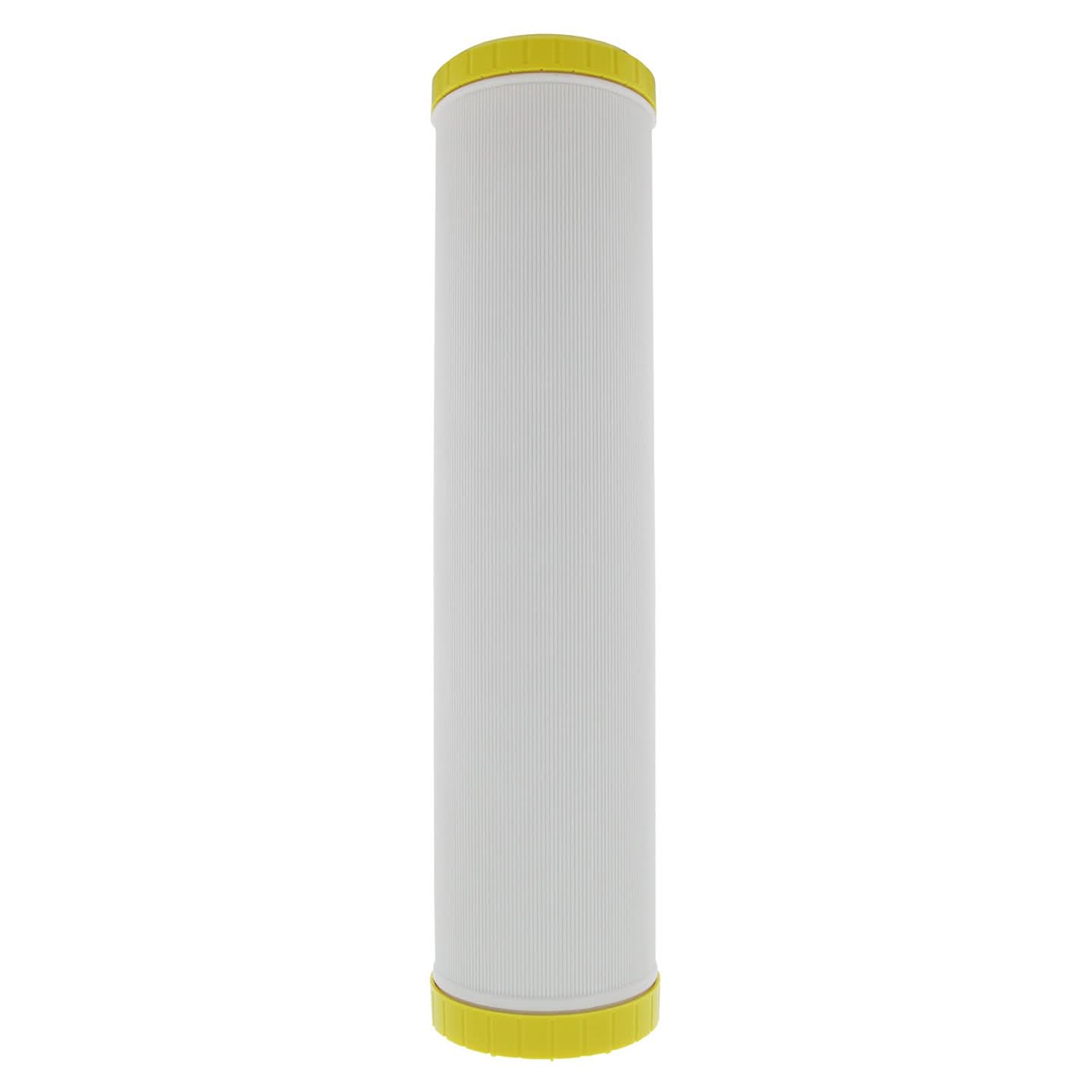

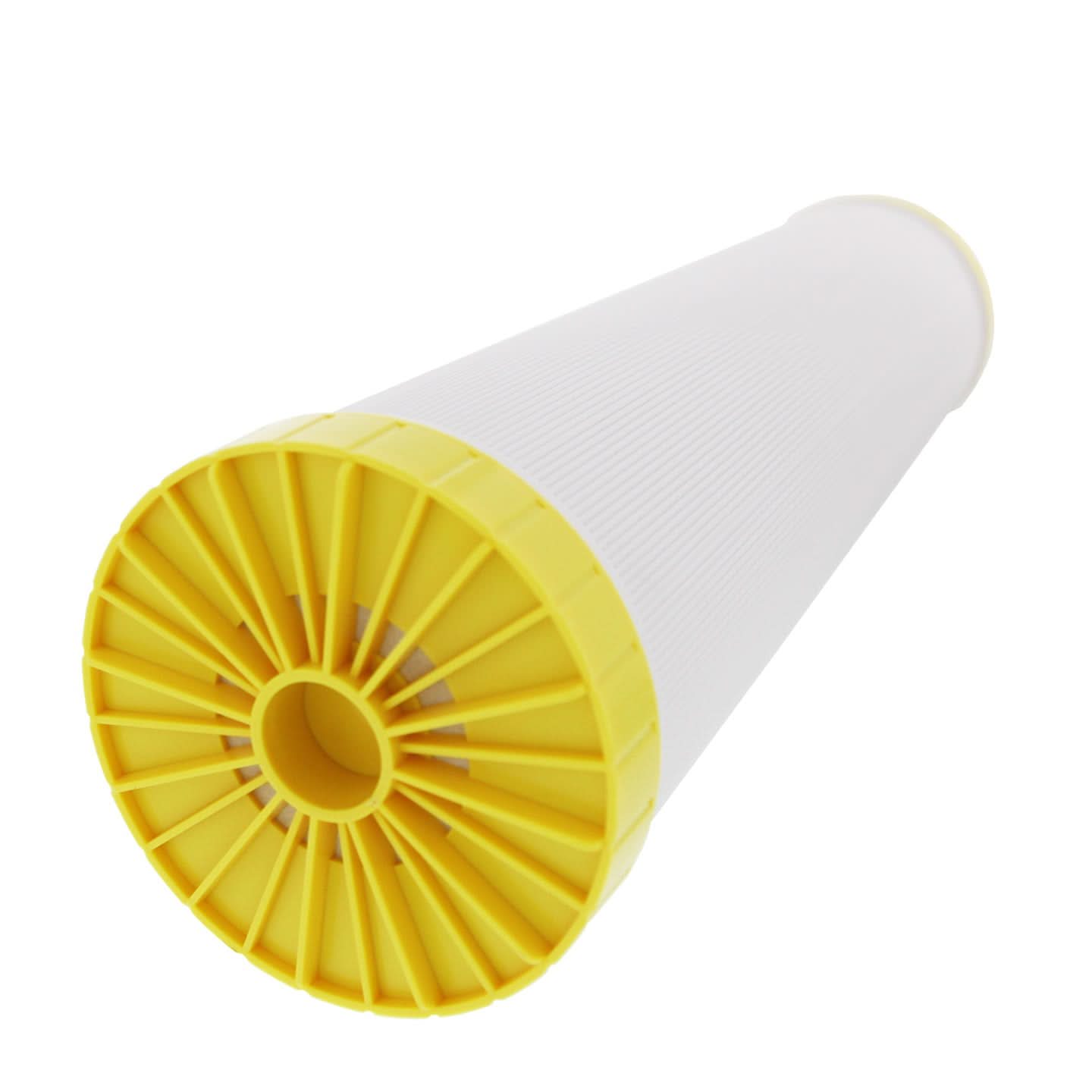

    Tier1 Iron and Manganese Reducing Replacement Water Filter

    Fits most 20 x 4.5 inch Big Blue filter housings
    • Efficiently reduces Iron and Manganese levels to 0.01 ppm

    • Most effective in water with no more than 3 ppm Iron

    • Fits most standard sized housings which require a 20 x 4.5 inch filter

    • Long filter life of 45,000 gallons or up to 6 months

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: MANG-IRON
    UPC: 810004473973
    Actual Size (in): 20 inches (length) x 4.75 inches (width) x 4.75 inches (height)
    Media: Cation Exchange Resin
    Primary Filter Media: Ion Exchange Resin
    Operating Pressure (psi): 20 - 100
    Operating Temperature (°F): 40 - 120
    Warranty Guarantee: Tier1® Protect Every Drop Guarantee
    Brand: Tier1
    Advertised Size: 20 x 4-1/2
    Height (in): 4.75 in
    Length (in): 20 in
    Width (in): 4.75 in
    Media Type: Specialty Filter
    Flow Rate (gpm): 4.5
    description Instructions
    1. Turn off the water supply. Press the red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. Insert the new filter cartridge.
    7. Screw housing onto the cap and hand-tighten. Do not overtighten. Make sure cap standpipe slips into cartridge.
    8. Turn on the water supply. Press the pressure-relief button (if present). Check for leaks before leaving installation.
    warning_amber Contaminants Reduced
  • Iron
  • Manganese
  • Oxidized Iron
  • Oxidized Manganese
  • filter_alt Filter Life
    Filter Life (gallons): 45000
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Tier1® Protect Every Drop Guarantee
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov


    The Tier1 iron and manganese reducing replacement water filter use cation exchange resin to remove minerals such as iron and manganese from your water. Cation exchange resin exchanges ions with the minerals in water to capture and reduce contaminants. In a softener this process can be repeated for longer stretches of time since the resin beads will be regenerated, however with a replacement cartridge like this, you won't have to worry about replacing salt or wasteful backwash cycles to regenerate the resin. This can be seen as a preferable economic trade-off for some homeowners. Tier1 is ready to protect every drop.

    NOTE: It is recommended that a sediment pre-filter be installed to help extend the life of the iron and manganese reducing filter.
