    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Tier1

    TIER1-SPC-25-1030

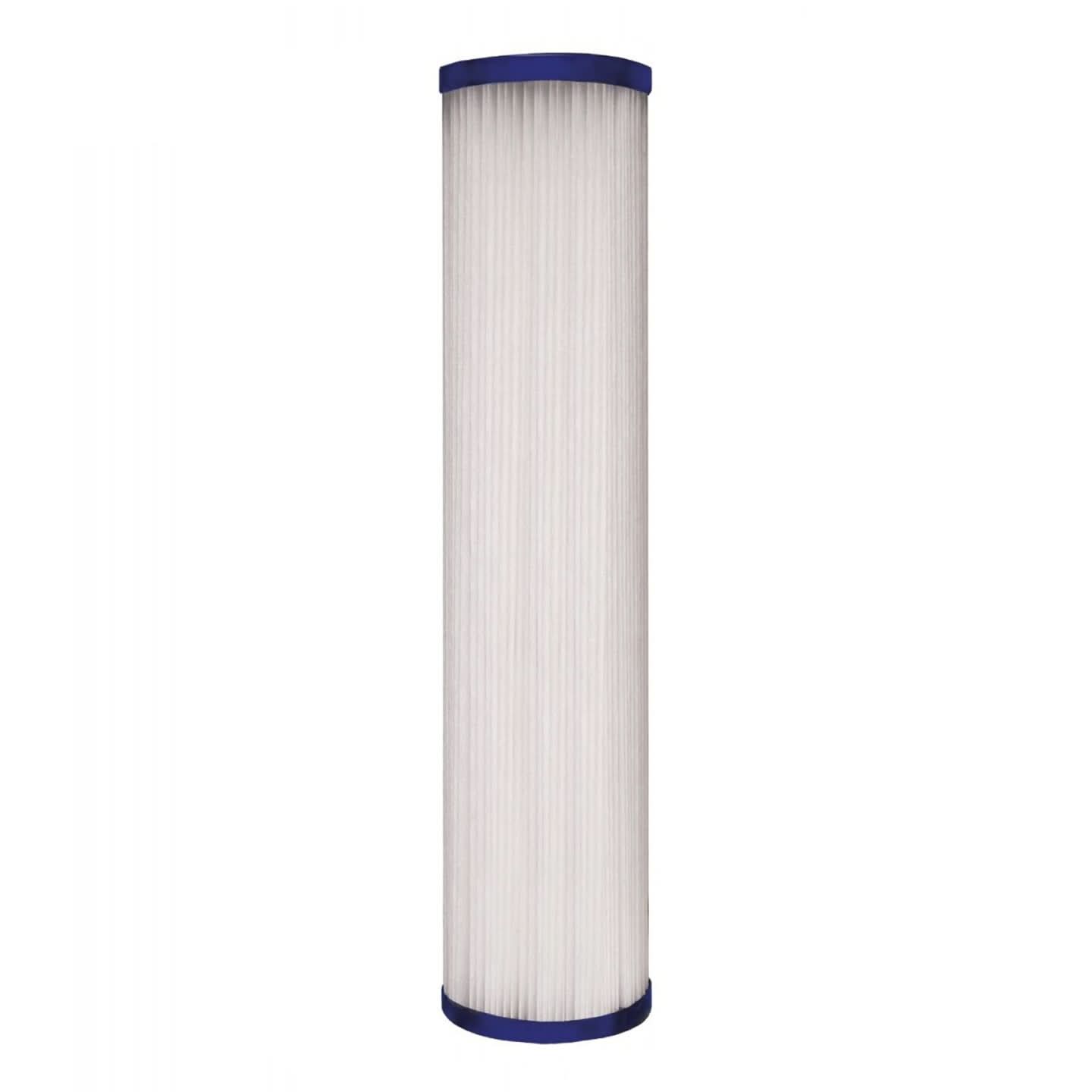

    Tier1 10 inch x 2.5 inch Pleated Sediment Water Filter (30 Micron)

    Fits standard 10 x 2.5 inch water filter housings
    • Ships fast

    • Holds more dirt than other filters

    • Washable and reusable filter

    • Can be used in a variety of applications such as commercial, residential, and industrial

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: SPC-25-1030
    UPC: 810004477513
    Actual Size (in): 9 7/8 inches (length) x 2 1/2 inches (outside diameter)
    Media: Non-Woven Pleated Polyester
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 10 x 2-1/2
    Length (in): 9.88 in
    Outside Diameter (in): 2.5 in
    Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol
    Media Type: Sediment Filter
    Micron Rating Nominal: 30
    Flow Rate (gpm): 10.0
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge
    4. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    5. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    6. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    7. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    8. Insert new filter cartridge
    9. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    10. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particulates
  • Sand
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Guarantee for Life of the Product

    The Tier1 10 inch x 2.5 inch pleated sediment water filter (30 Micron) offers a pleated design that captures more dirt, and particles keeping your water clean and drinkable. Designed for applications such as residential, commercial and industrial environments this filter is resistant to bacteria and chemicals while also reducing different kinds of sediment. You can even wash and re-use this filter for better use. Be sure to order today!


    TIER1-SPC-25-1030   is comparable with the following part number(s)

    • PENTEK-R30
