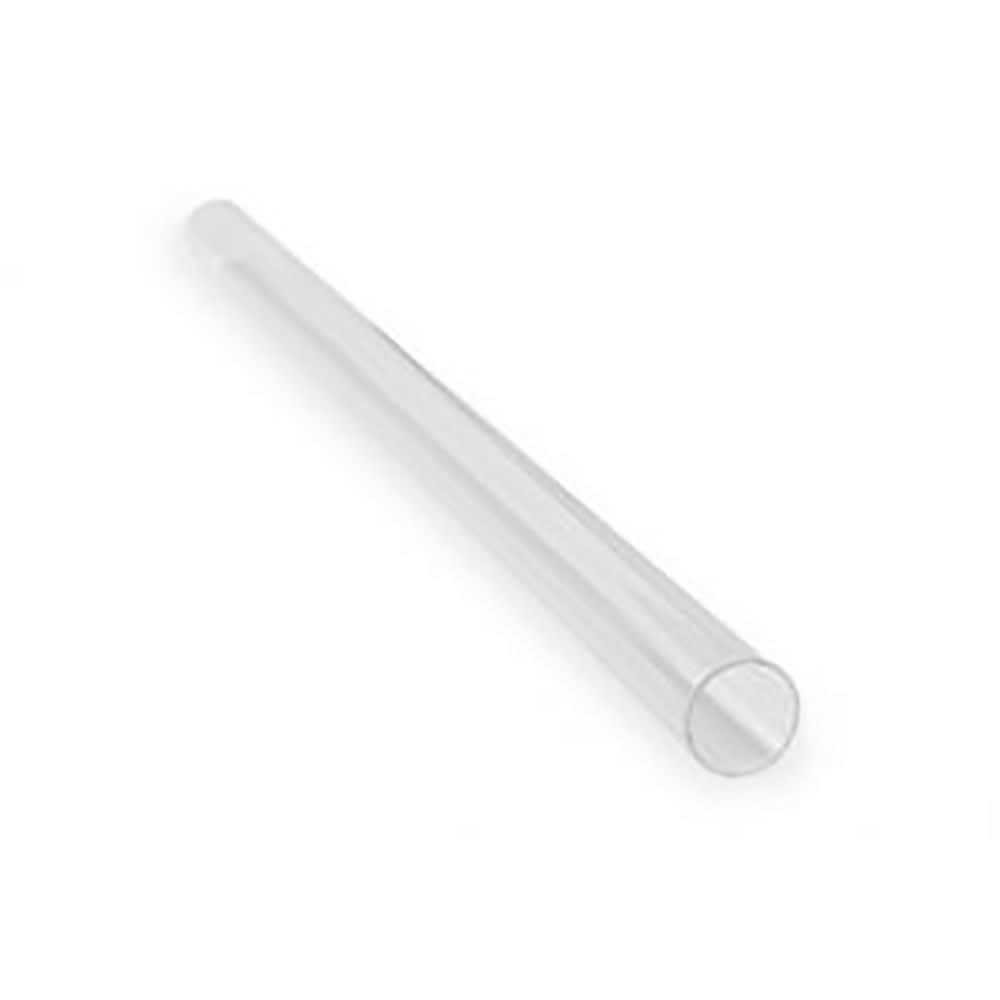

    Viqua Replacement Quartz Sleeve for VH200

    • Decrease health risk from water contaminants

    • Long life quartz sleeve

    • Replacement sleeve compatible with Viqua VH200

    • Low maintenance component for UV system

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Viqua

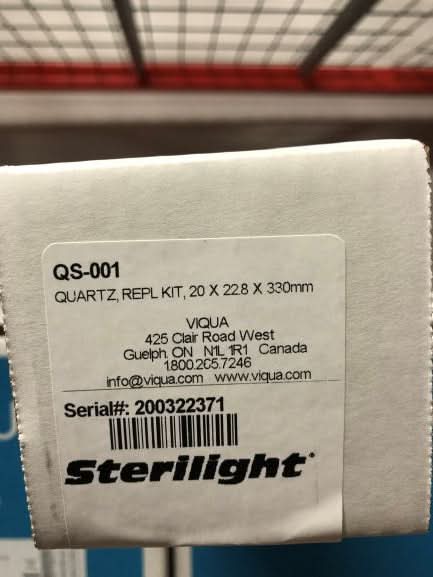

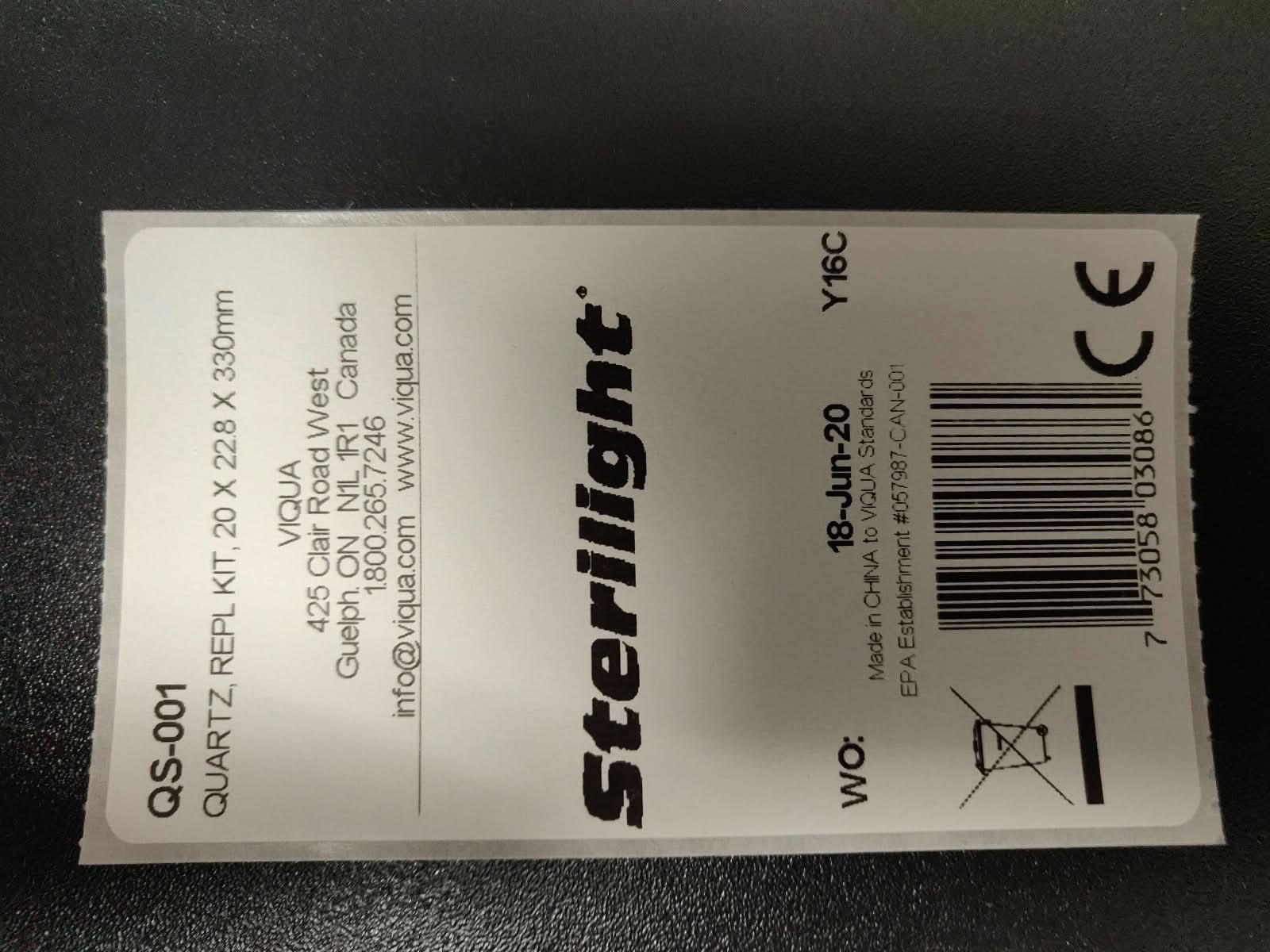

    Manufacturer's Id: QS-001
    UPC: 773058030861
    Actual Size (in): 14-inches (length) x 2-inches (outside diameter)
    Warranty Guarantee: One (1) Year Limited Warranty
    Brand: Viqua
    Length (in): 14 in
    Outside Diameter (in): 2 in
    description Instructions
    1. NOTE: Water must be turned off with chamber drained and UV Lamp removed before quartz sleeve can be cleaned and or replaced.
    2. Remove the top retaining nut and O-ring.
    3. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water. Note: Ensure that the quartz sleeve does not slide through.
    4. Remove the quartz sleeve from the UV chamber.
    5. Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
    6. Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s).
    7. Hand tighten the retaining nut(s), taking care not to over-tighten.
    8. When completed, replace the UV lamp and turn water back on.
    verified_user Warranty Info
    Warranty Guarantee: One (1) Year Limited Warranty

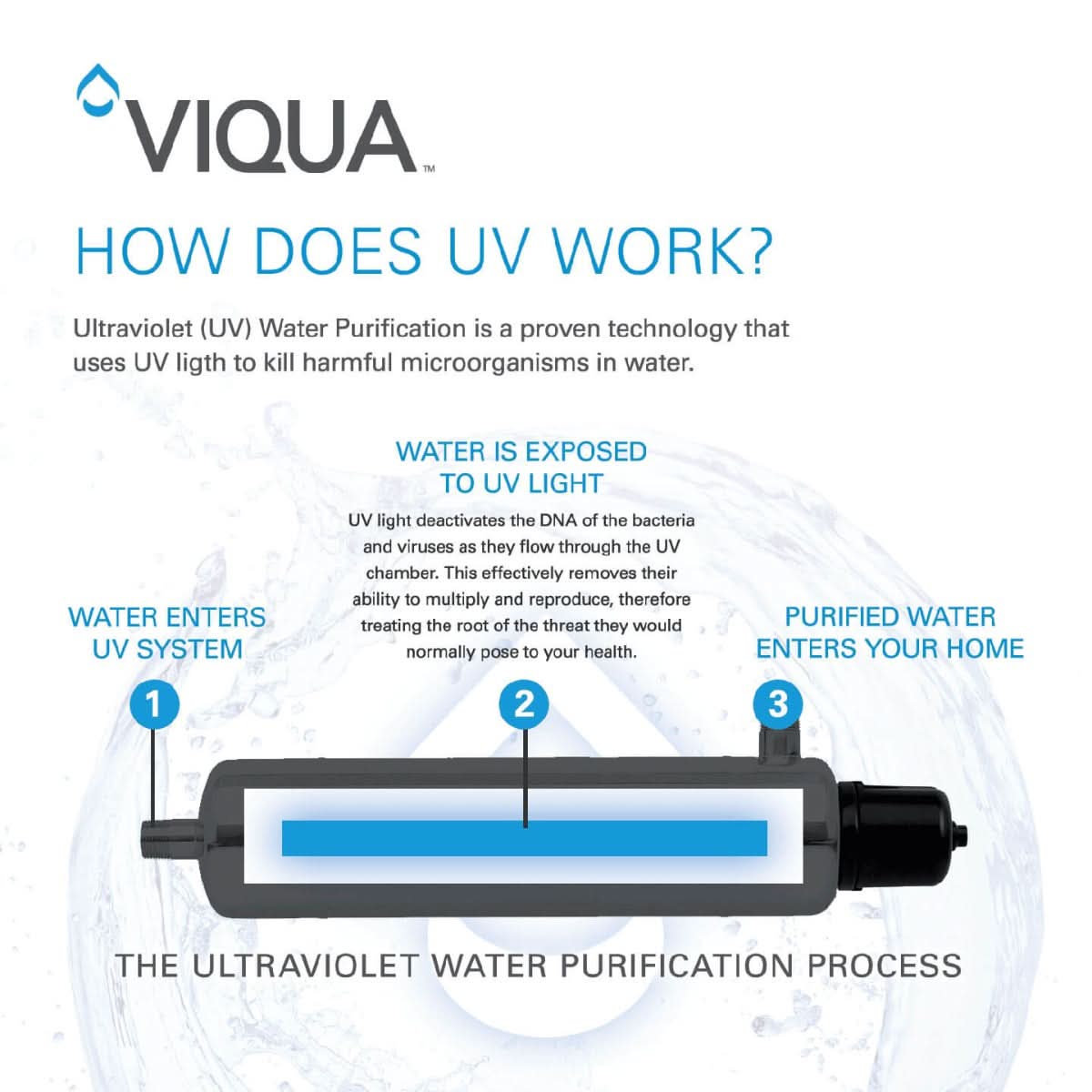

    The Viqua Replacement Quartz Sleeve for VH200 surrounds the UV light protecting and preventing it from coming in contact with the water. UV light is transmitted through the quartz sleeve and purifies the water reducing the bacteria and viruses that would otherwise make it to your beverages. With use, the sleeve will accumulate minerals from the water which must be taken care of and removed about every 3 months to prevent the UV treatment from becoming less effective. Cleaning the sleeve will both help the efficacy of the system but also prolong the life of the sleeve. Once the mineral layer becomes permanent and can not be removed the sleeve needs to be replaced. Protect your UV lamp and keep your system running properly with the Viqua Replacement Quartz Sleeve for VH200, order today!

    VIQUA-QS-001   is comparable with the following part number(s)

    • VH200
    • S1Q-PA
    • SSM-14 UV systems
