    AQUAPURE-AP810

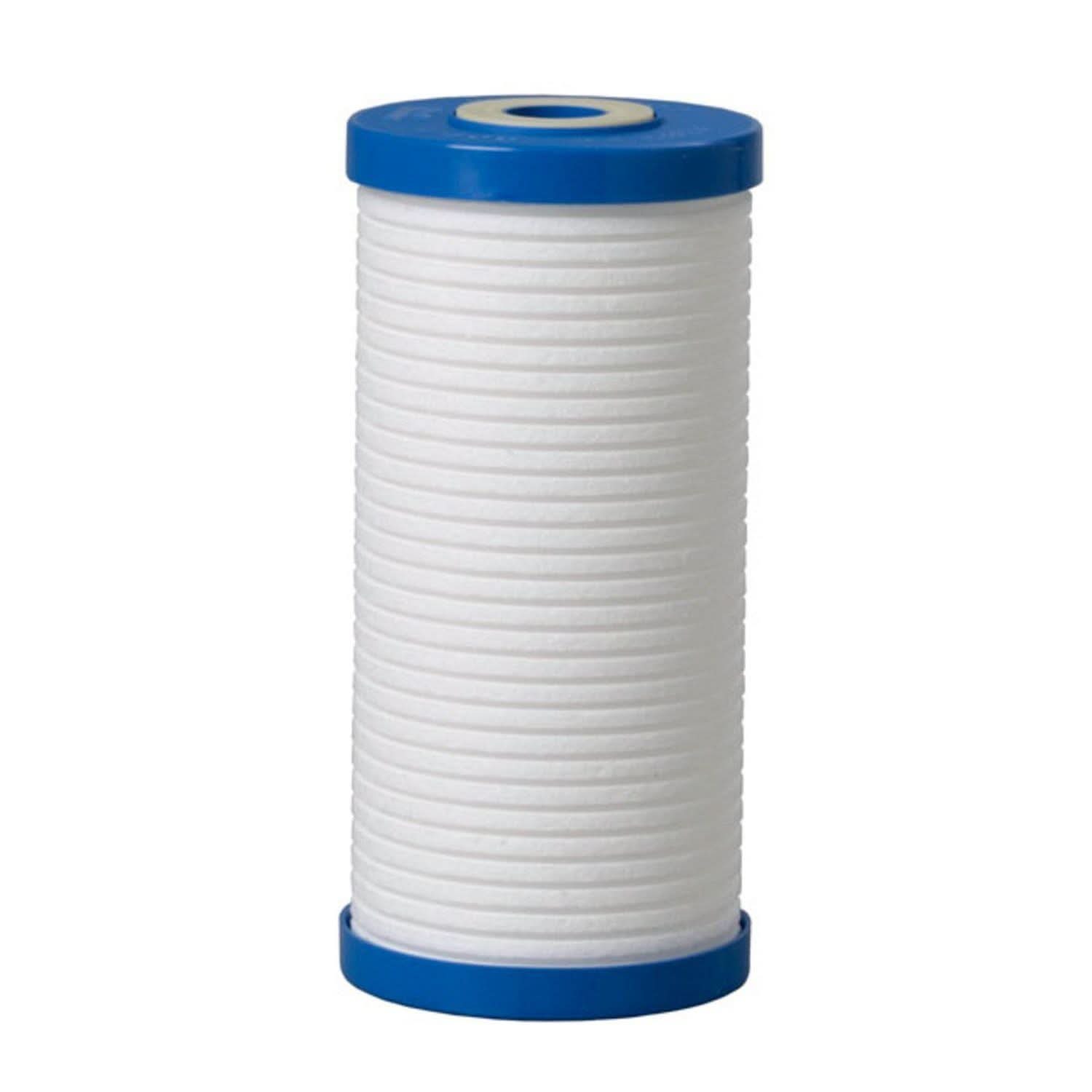

    3M Aqua-Pure AP810 Whole House Filter

    • Filters down to 5 microns

    • 20 gallons per minute flow rate!

    • Great for larger homes with multiple bathrooms

    • Six months of high quality filtration

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: 3M Purification, Inc
    Manufacturer's Id: AP810
    UPC: 016145158766
    Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
    Primary Filter Media: Polypropylene
    Operating Pressure (psi): 0 - 100
    Operating Temperature (°F): 40 - 100
    Operating Temperature (°C): 4.4 - 37.8
    Brand: Aqua-Pure
    Advertised Size: 10 x 4-1/2
    Length (in): 9.75 in
    Outside Diameter (in): 4.75 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    UPC's For Search: 016145810107 | 161451063478 | 161451587660 | 016145158766
    Micron Rating Nominal: 5
    description Instructions
    1. The 3M Aqua-Pure AP810 water filter cartridge needs to be replaced every 3-4 months, or sooner depending on your water quality and your water usage
    2. Turn off incoming water
    3. Bleed pressure from the unit by depressing the red button on top of unit
    4. Remove housing by sliding wrench up toward head then turn left to unscrew
    5. Wipe housing clean and insert new cartridge
    6. Lubricate o-ring and screw housing into head
    7. Turn water back on
    file_download Downloads
    warning_amber Contaminants Reduced
  • Rust And Corrosion
  • Sediment
  • filter_alt Filter Life
    Filter Life (months): 6 months

    The AP810 by 3M Aqua-Pure water filter replacement cartridge reduces dirt and rust down to 5 microns. The 3M Aqua-Pure AP810 dirt & rust water filter cartridge is made from an exclusive polypropylene process that contributes to its ability to capture and retain sediment. As water passes from the outer surfaces into the center of the cartridge, the filtering pores become increasingly smaller to remove even microscopic particles. Unlike string-wound and pleated paper cartridges, the rigid, sturdy construction of the 3M Aqua-Pure cartridges are able to withstand high pressure drop and stressful conditions such as water hammer.


    AQUAPURE-AP810   is comparable with the following part number(s)

    • 5577915
    • 5577916
    • 55779-15
    • 55779-16
    • 56122-05
    • 56122-06
    • Ametek / Pentek DGD 5005 155357-43
    • AP801
    • AP801-1.5C
    • AP801-C
    • AP801T-C
    • AP802
    • AP802-1.5C
    • AP810
    • AP-810
    • AP810T-C
    • Pentek WP5BB97P 35521443
    • WHCFGD25BB
    • WHCF-GD25BB
    • WHKF-GD25BB
    • 5618902
