    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Tier1

    TIER1-AP85-934

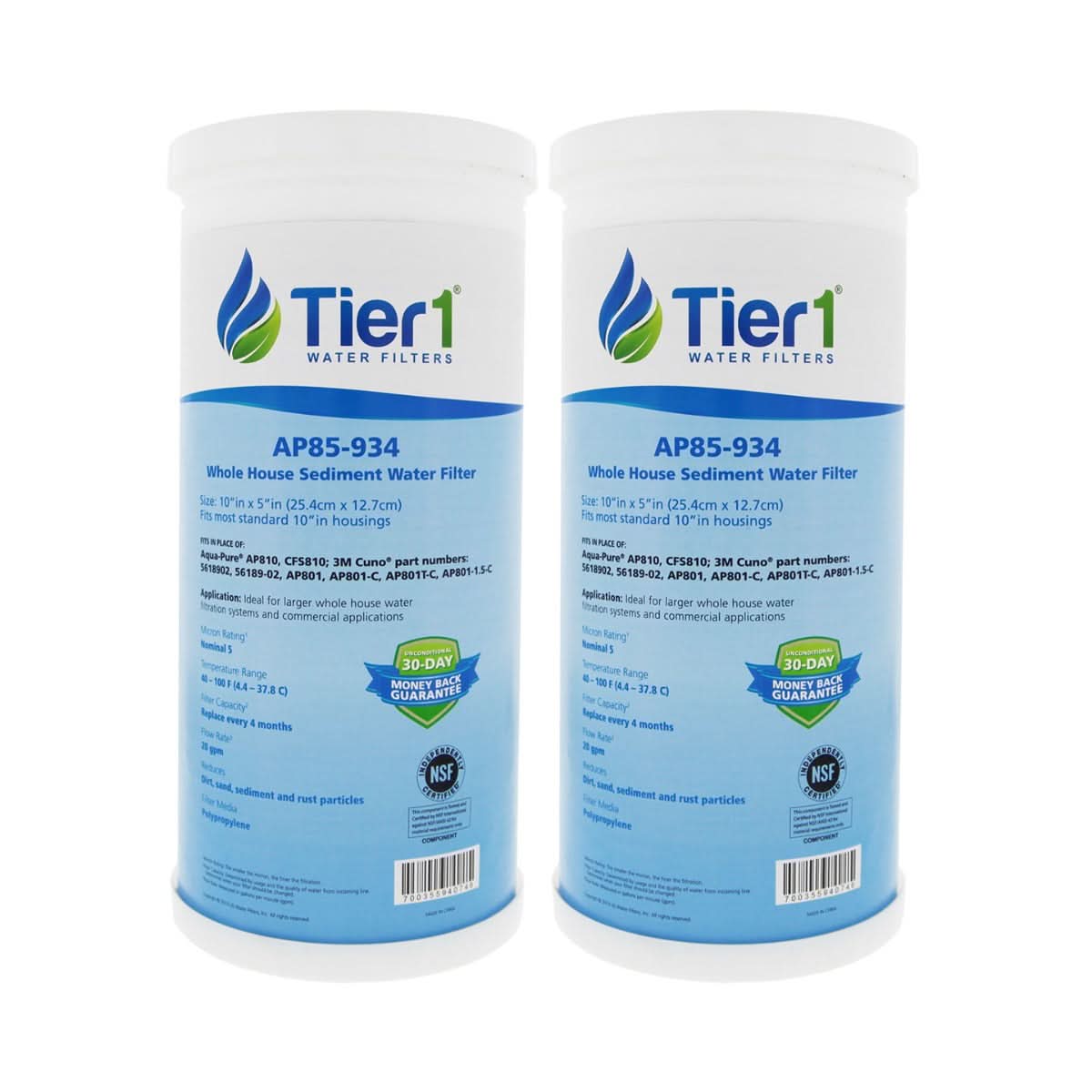

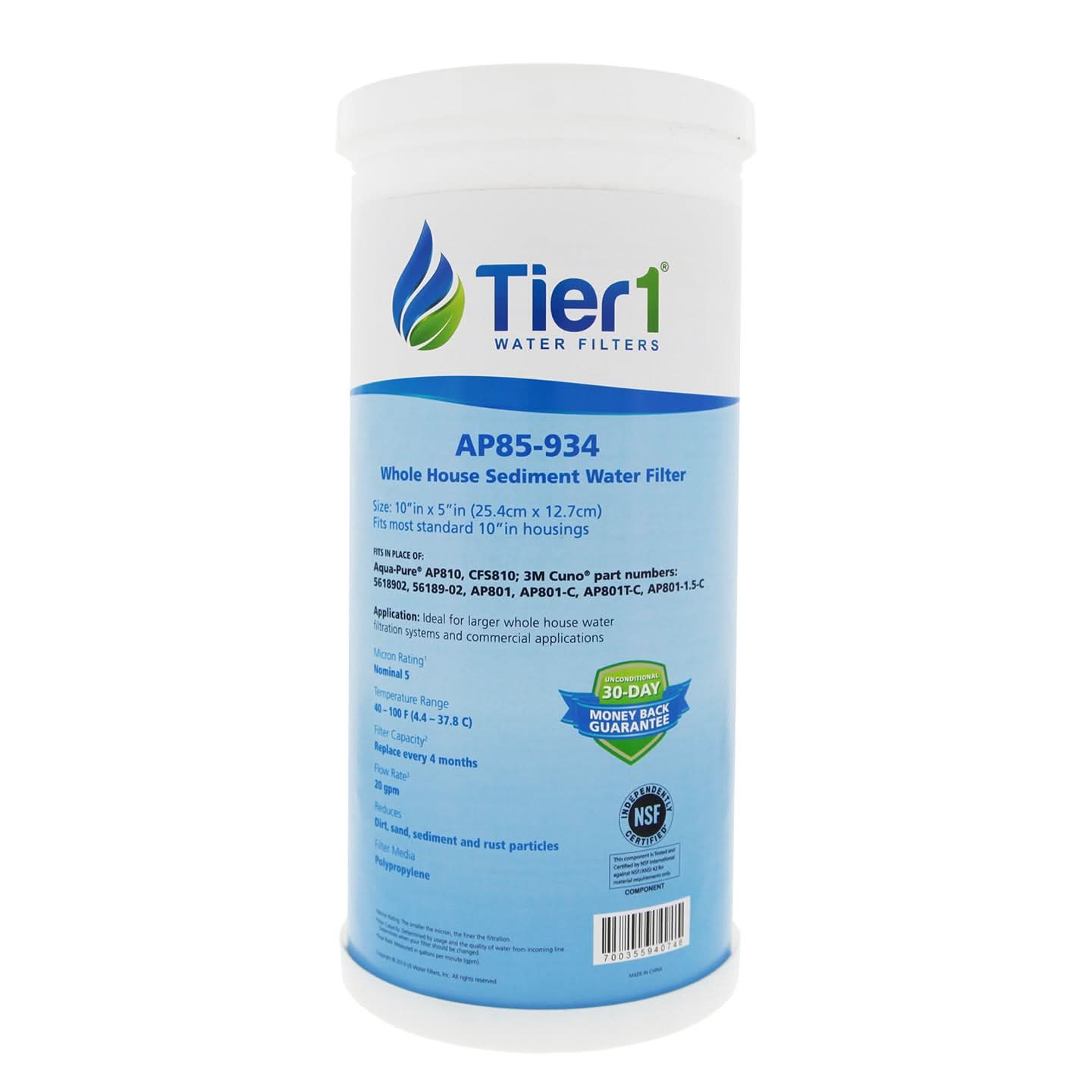

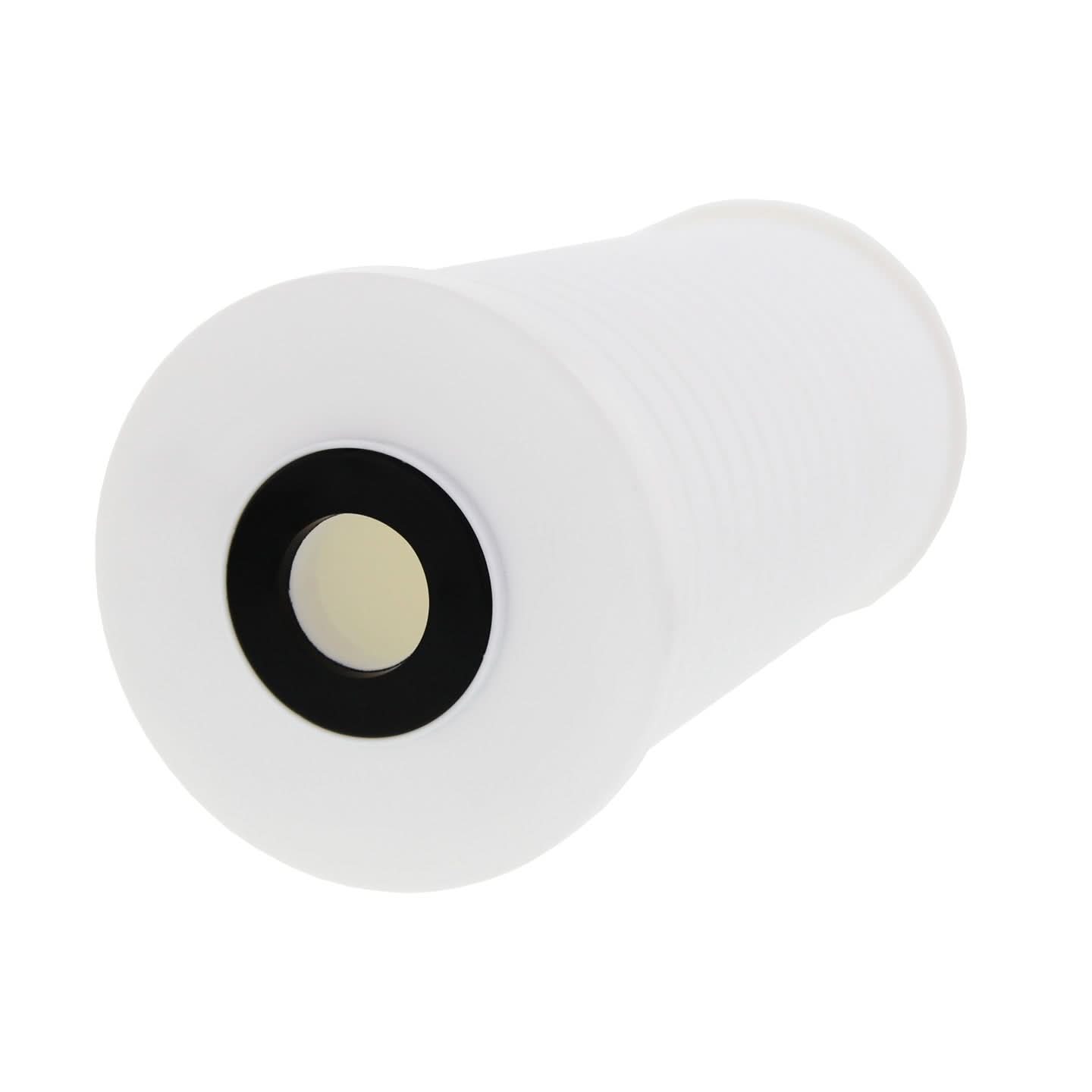

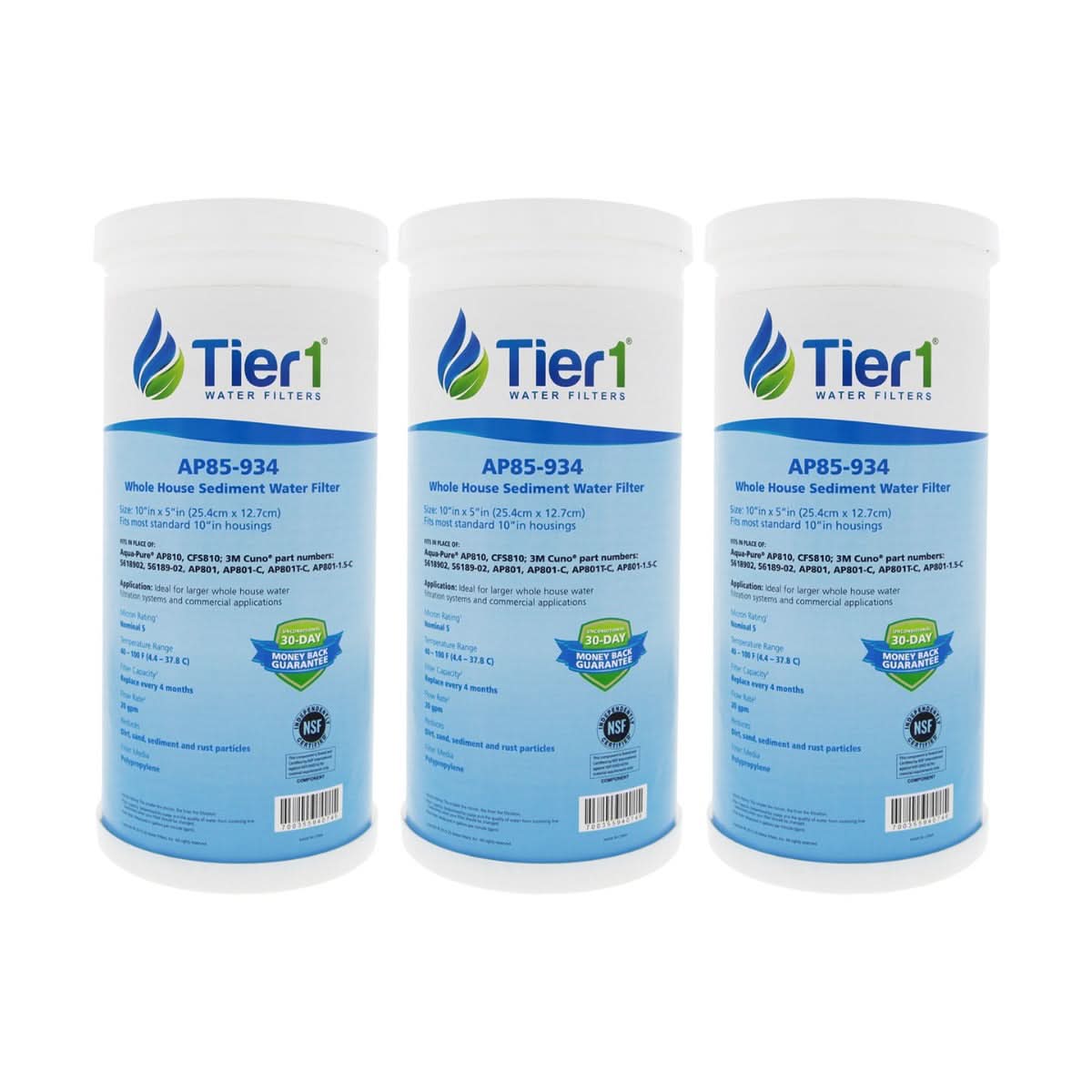

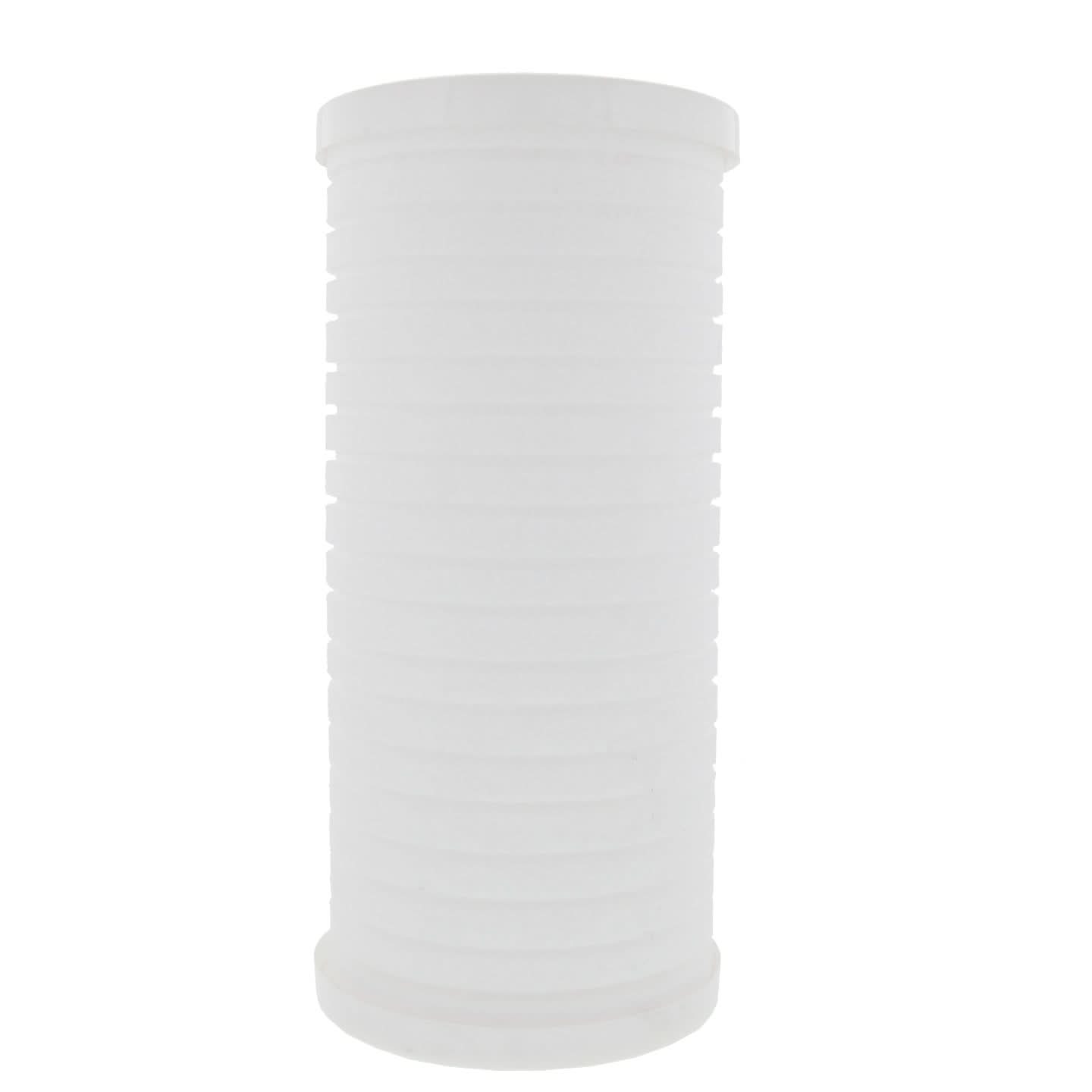

    10 X 4.5 Spun Wound Polypropylene Replacement Filter by Tier1 (5 micron)

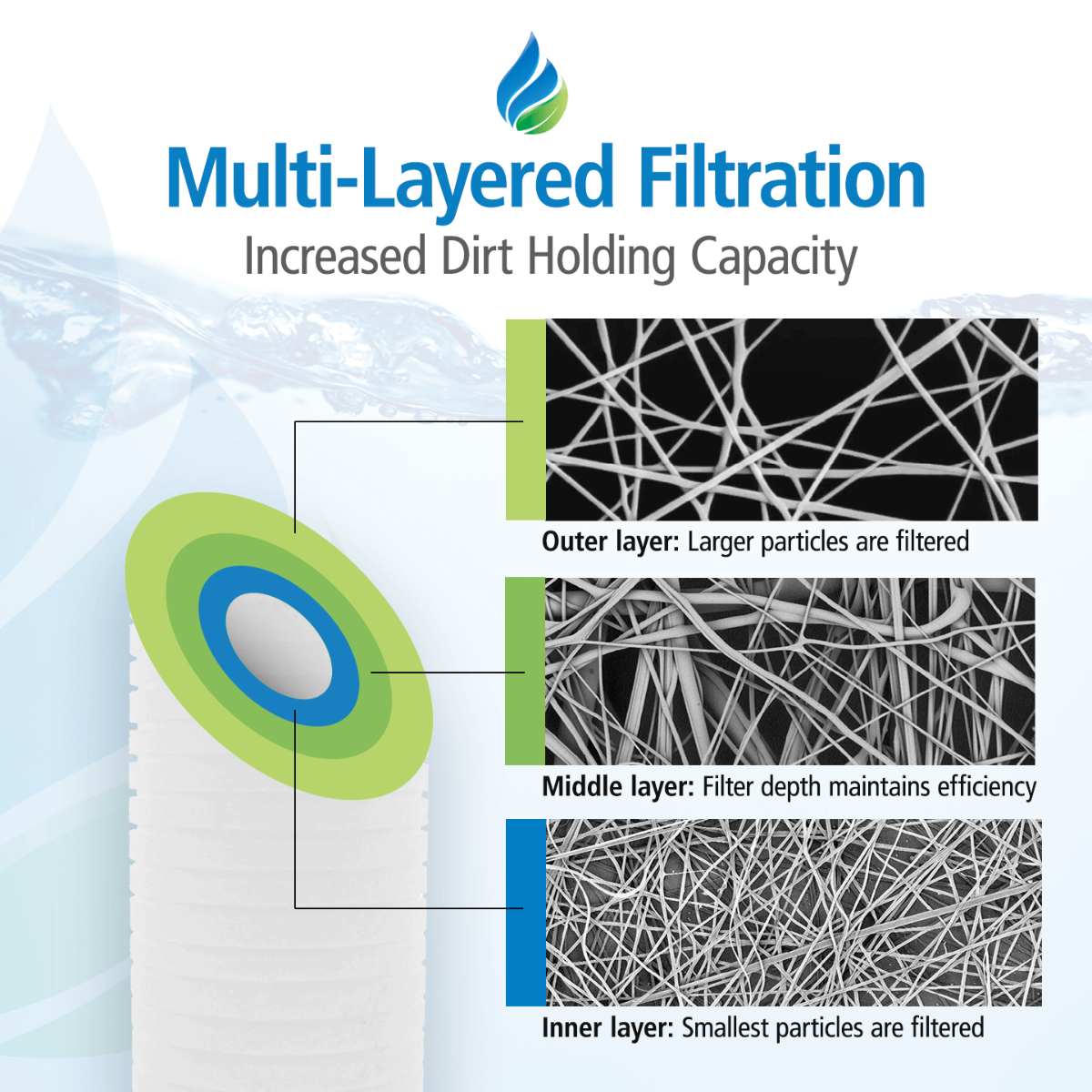

    • Melt Blown Polypropylene filter media

    • Brings you cleaner water along with an easy installation

    • 30 day 100% satisfaction guarantee

    • Fits many common housings with a 10 inch by 5 inch size

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: AP85-934
    UPC: 700355940746

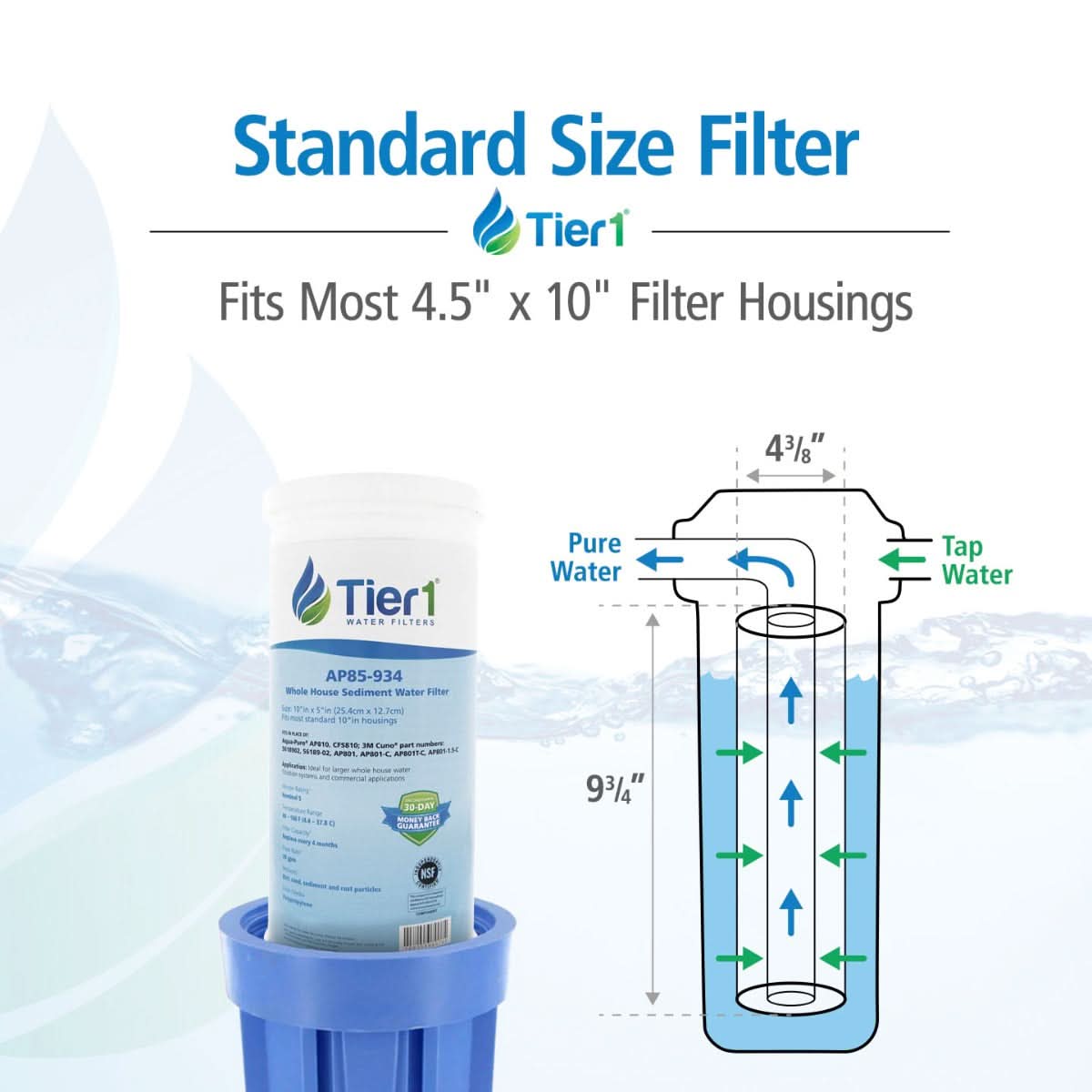

    Actual Size (in): 9-3/4 inches (length) x 4-3/8 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 100
    Operating Temperature (°C): 4.4 - 37.8
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 10 x 4-1/2
    Length (in): 9.75 in
    Width (in): 4.38 in
    Media Type: Sediment Filter
    UPC's For Search: 700355940746
    Micron Rating Nominal: 5
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present)
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
    7. Insert new filter cartridge
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Oxidized Iron
  • Particles
  • Sand
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

    The Whirlpool WHKF-DWHB comparable by Tier1 is a 10 x 5 inch whole house sediment water filter for commercial and residential applications that require reductions of dirt, sand, sediment, and rust. Melt Blown Polypropylene filter media headlines this 5 micron sediment filter that will meet your filtering challenges head on. Order today!


    TIER1-AP85-934   is comparable with the following part number(s)

    • 5618902
    • 5577915
    • 5577916
    • 3M Cuno 5618902
    • 3M Cuno 56189-02
    • 3M Cuno AP801
    • 3M Cuno AP801-1.5-C
    • 3M Cuno AP801-C
    • 4LW37
    • 55779-15
    • 55779-16
    • 56122-05
    • 56122-06
    • 56189-02
    • Ametek / Pentek DGD 5005 155357-43
    • AP801
    • AP801-1.5-C
    • AP801-C
    • AP801T-C
    • AP802
    • AP802-1.5C
    • AP810
    • AP-810
    • AP810T-C
    • Aqua-Pure AP810
    • CFS810
    • Pentek WP5BB97P 35521443
    • WHCFGD25BB
    • WHCF-GD25B
    • WHKF-GD25BB

    TIER1-AP85-934   fits the following model number(s)

    • AQUAPURE-AP101T
    • WHIRLPOOL-WHKF-DWHBB
