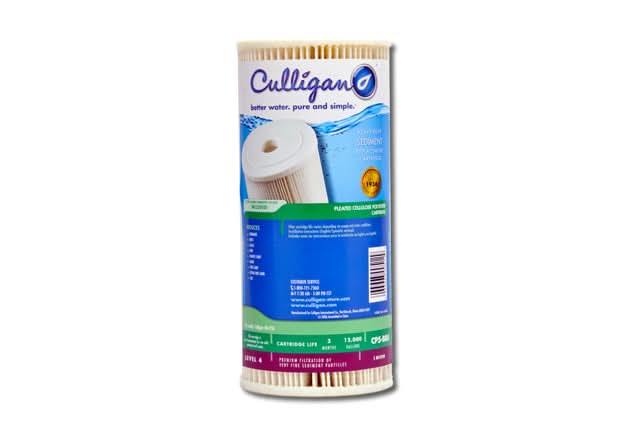

    Culligan CP5-BB Pleated Sediment Water Filter (9-3/4-inch x 4-1/2-inch)

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Culligan
    Manufacturer's Id: CP5-BBS-D
    UPC: 033663005129
    Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)
    Media: Pleated Polyester & Cellulose
    Primary Filter Media: Pleated Cellulose
    Operating Pressure (psi): 30 - 100
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Manufacturer 30 day limited warranty
    Brand: Culligan
    Advertised Size: 10 x 4-1/2
    Length (in): 9.75 in
    Outside Diameter (in): 4.5 in
    Materials of Construction: End Caps: Vinyl Plastisol, Core: Polypropylene
    Media Type: Sediment Filter
    UPC's For Search: 70033663005128 | 033663005129
    Micron Rating Nominal: 5
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Rust And Corrosion
  • Sand
  • Sand Coarse
  • Sand Extra Fine
  • Sand Fine
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (gallons): 3 months
    verified_user Warranty Info
    Warranty Guarantee: Manufacturer 30 day limited warranty

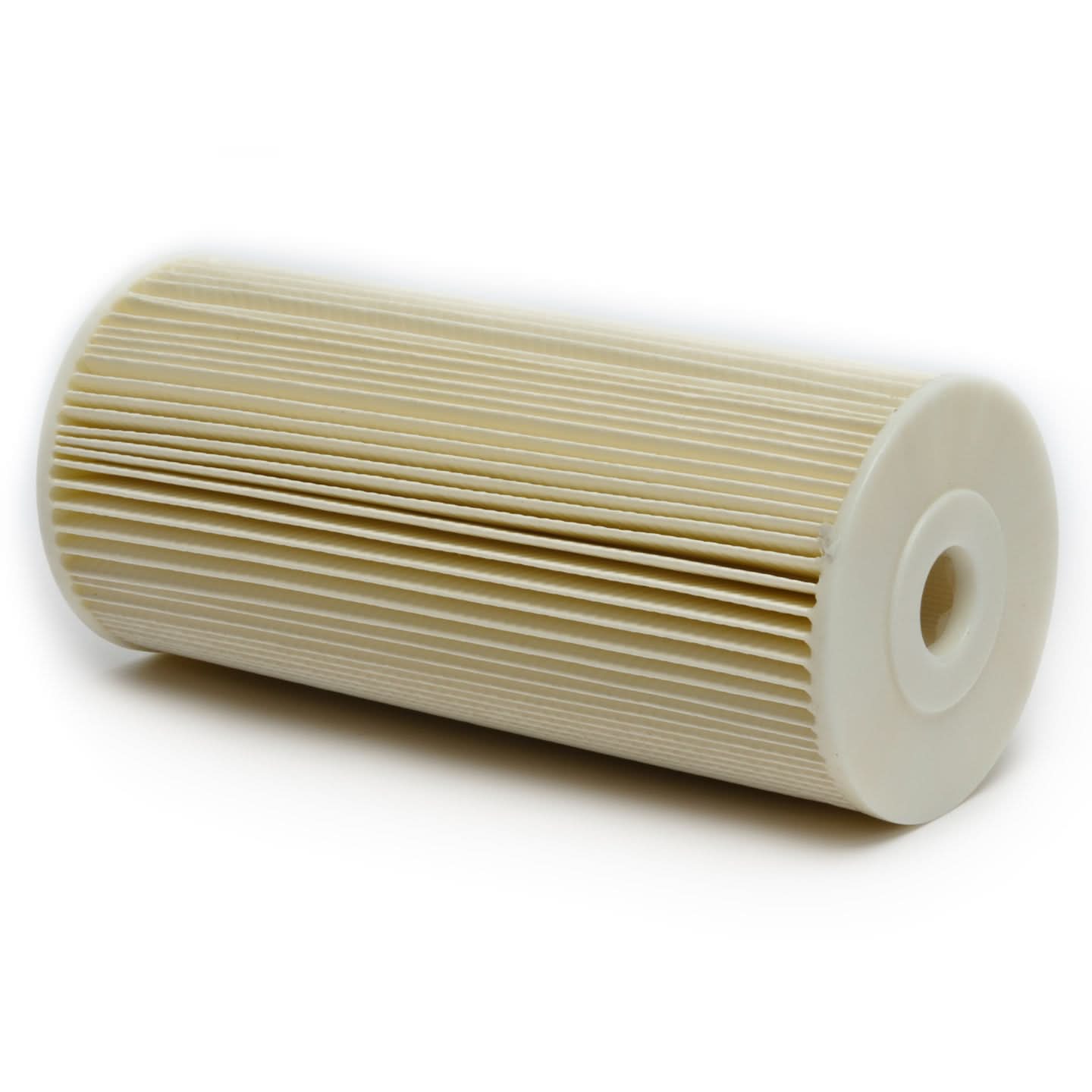

    The Culligan CP5-BB water filter cartridge is a special formulation of resin-impregnated cellulose and polyester fibers. The Culligan CP5-BB water filter provides higher wet strength than regular cellulose cartridges. The Culligan/Ametek CP5-BB water filters also provide high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop. The filters have minimal unloading and media migration. The cartridge media is pleated around a polypropylene core for added strength and the ends are immersed in a thermosetting vinyl plastisol. Embedding and sealing each end of the pleat block in this fashion fuses the components together, forming a unitized end cap and gasket. The Culligan CP5-BB replacement filter cartridge is not recommended for non-chlorinated water supplies. Cellulose may start to break down if there is bacteria present in well water or other non-chlorinated water supplies. NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Nominal 5 micron Culligan CP5-BB Pleated Cellulose Polyester Water Filter Cartridge.

    CULLIGAN-CP5-BBS-D   is comparable with the following part number(s)

    • 155184
    • 4021341
    • US Filter CP5-BB
    • 10 inch Big Blue Housings
    • 155184-27
    • 255490-43
    • American Plumber 155184
    • American Plumber W5CPHD
    • Ametek CP5-BB
    • Ametek ECP5-BB
    • Bruner CP5-BB
    • CP5-BB
    • CP5-BBS
    • CP5-BBS-D
    • ECP5-BB
    • FM-BB-10-5
    • GPC5
    • HD-950
    • Keystone GPC5
    • Kleen Plus CP5-BB
    • OmniFilter RS15
    • PC05-BB-S
    • Pentair CP5-BB
    • Pentek 255490-43
    • Pentek CP5-BB
    • Pentek ECP5-BB
    • Plymouth CP5-BB
    • RS15
    • RS15-2-01
    • RS15-2-02
    • RS15-2-05
    • SPC-45-1005
    • SPF-45-1005
    • W5CPHD
    • WB-HB-10-5W
    • 1019138
