    PENTEK-DGD-7525-20

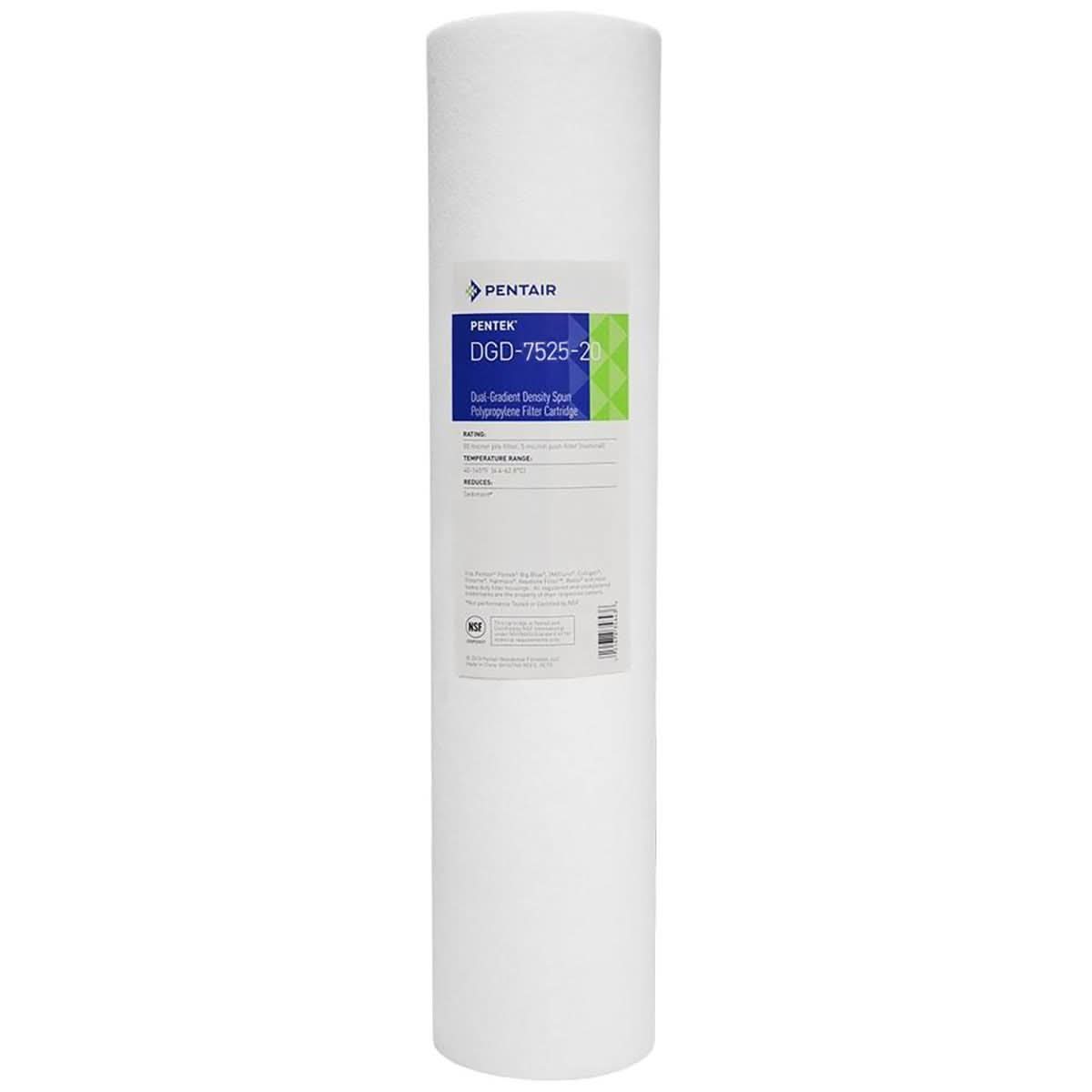

    Pentek DGD-7525-20 Sediment Water Filters (20-inch x 4.5-inch)

    Fits most standard housings built for 20-inch x 4.5 inch filter cartridges
    • Bacteria resistant and chemical resistant

    • Reduces the need for multiple housing step-down filtration systems

    • Up to three times the dirt-holding capacity of similar sized sediment water filter cartridges

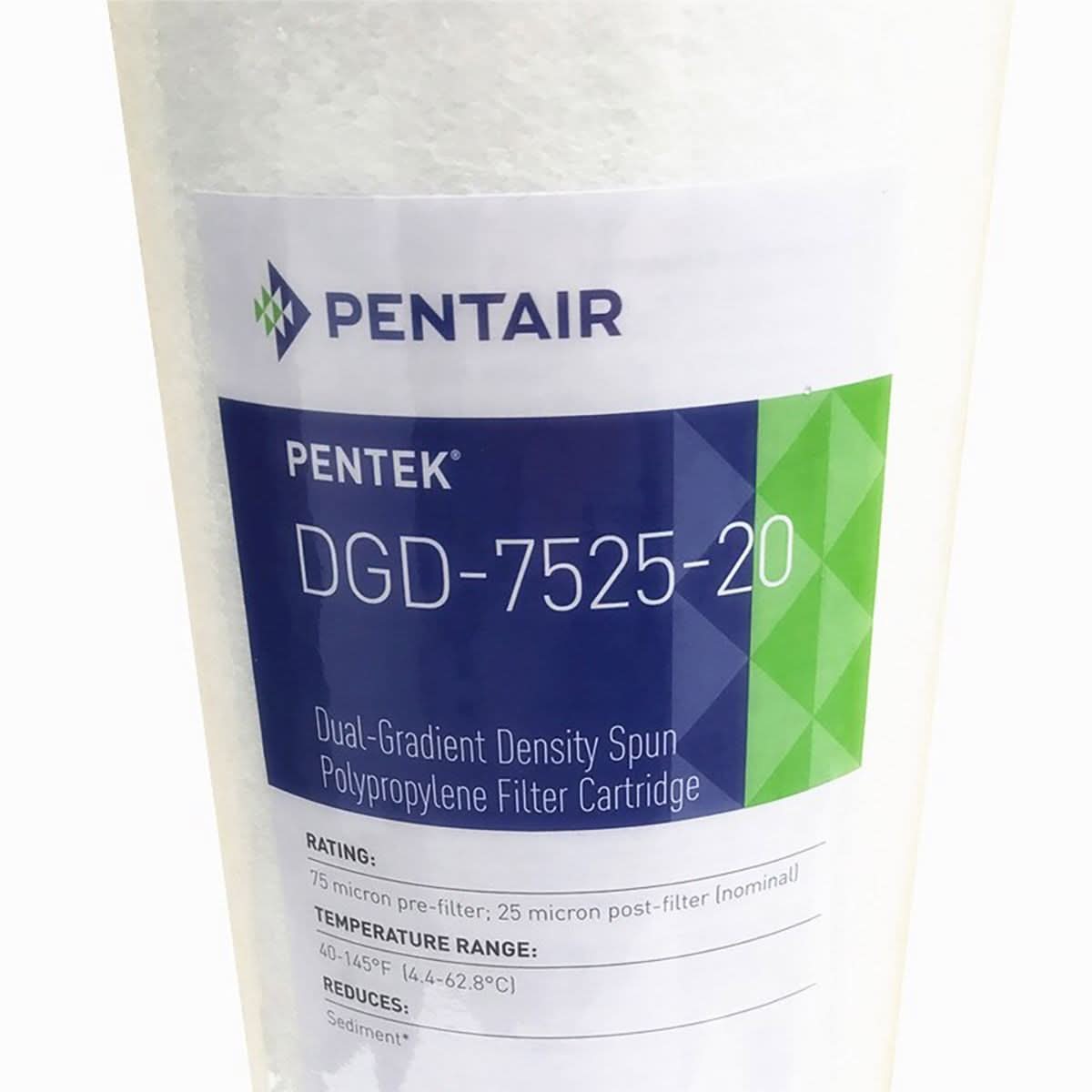

    • Features a 75 micron fine sediment pre-filter layer and a 25 micron extra fine sediment post-filter layer

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: DGD-7525-20
    UPC: 051678356432
    Actual Size (in): 20 inches (Length) x 4-1/2 inches (Outside Diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Brand: Pentek
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Media Type: Sediment Filter
    Country of Origin: China
    Micron Rating Nominal: 25
    Flow Rate (gpm): 20.0
    Includes: One Pentek DGD-7525-20 20 x 4.5 inch Sediment Water Filter
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    file_download Downloads
    workspace_premium Certifications
  • NSF/ANSI Standard 42
  • warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Hard Scale
  • Rust And Corrosion
  • Sand
  • Sand Extra Fine
  • Sand Fine
  • Sediment
  • filter_alt Filter Life
    Filter Life (gallons): 8000
    Filter Life (months): 6 months



    Pentek DGD-7525-20 water Filter Advantages


    The Pentek DGD-7525-20 water filters reduce the need for multiple housing step-down filtration systems. The Pentek DGD-7525-20 water filters are made of pure polypropylene construction and are resistant to chemicals and corrosion. The Pentek DGD-7525-20 replacement filters are designed for water purity along with bacteria and chemical resistance, the polypropylene material inhibits the growth of bacteria on the filter. The Pentek DGD-7525-20 water filter cartridge does not add taste, odor, or color to the liquid being filtered. The Pentek DGD-7525-20 water filter is ideal for all residential, rural, commercial, industrial, and municipal applications.



    Dual Gradient Density Filter Advantages


    The Pentek DGD-7525-20 outermost layer, the prefilter, reduces the particle load to the inner layer postfilter, allowing it to provide greater flow rates and retain more contaminants. By sifting out the particles by size as they flow through the filter media, there is less strain on the initial layer and a better distribution of contaminant reduction as water passes through the media. The effective DGD-7525-20 filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters. This increased depth provides for very high particulate reduction efficiencies and added loading capacity.



    Polypropylene Filter Media


    Polypropylene media inhibits bacterial growth making it an ideal option for both municipal and well water applications. These filters are effective at capturing contaminants such as sand, sediment, silt, and more. Unlike carbon filter cartridges you wont have to worry about small carbon fines potentially spilling into your water, while still enjoying the benefits of filtered water throughout your home. Polypropylene filters are great for whole house water filtration and can be used as effective pre-filters for whole house or point of use systems.



    Universal Filter Sizing


    The 20 X 4.5 inch Pentek DGD-7525-20 spun wound polypropylene replacement filter is built to fit 20-inch x 4.5-inch filter housings. This standard sizing allows this filter to easily replace existing styles of whole house filters for housings requiring 20 x 4.5 inch filters. The DGD-7525-20 goes to work immediately providing cleaner, fresher water for up to six months. Enjoy cleaner better water with your whole house replacement filter today.


    PENTEK-DGD-7525-20   is comparable with the following part number(s)

    • 4PCD5
    • 155356-43
